2 - 4 INSTALLATION AUGUST 1998
c. Attach the brown and light blue power and the green with yellow stripe
neutral wires from the cable to the appropriate terminals on the 120 VAC
terminal strip.
2.2.1 INPUT/OUTPUT MODULES
Use of input and output modules will depend on the design of the system. 16 I/O module
locations are provided on the controller and 32 more can be added using IOE-850 I/O
Expanders. Each location can be equipped with any of five input or output modules. The
IDC15 and HSI-250 are DC input modules and the IAC15 is an AC input module. Similarly,
the ODC15 is a DC output module and the OAC15 is an AC output module. For
applications that are intended for use in the European Community, use only the I/O
modules that require 60 vdc or less. (IAC15 and OAC15 must not be used for European
applications.)

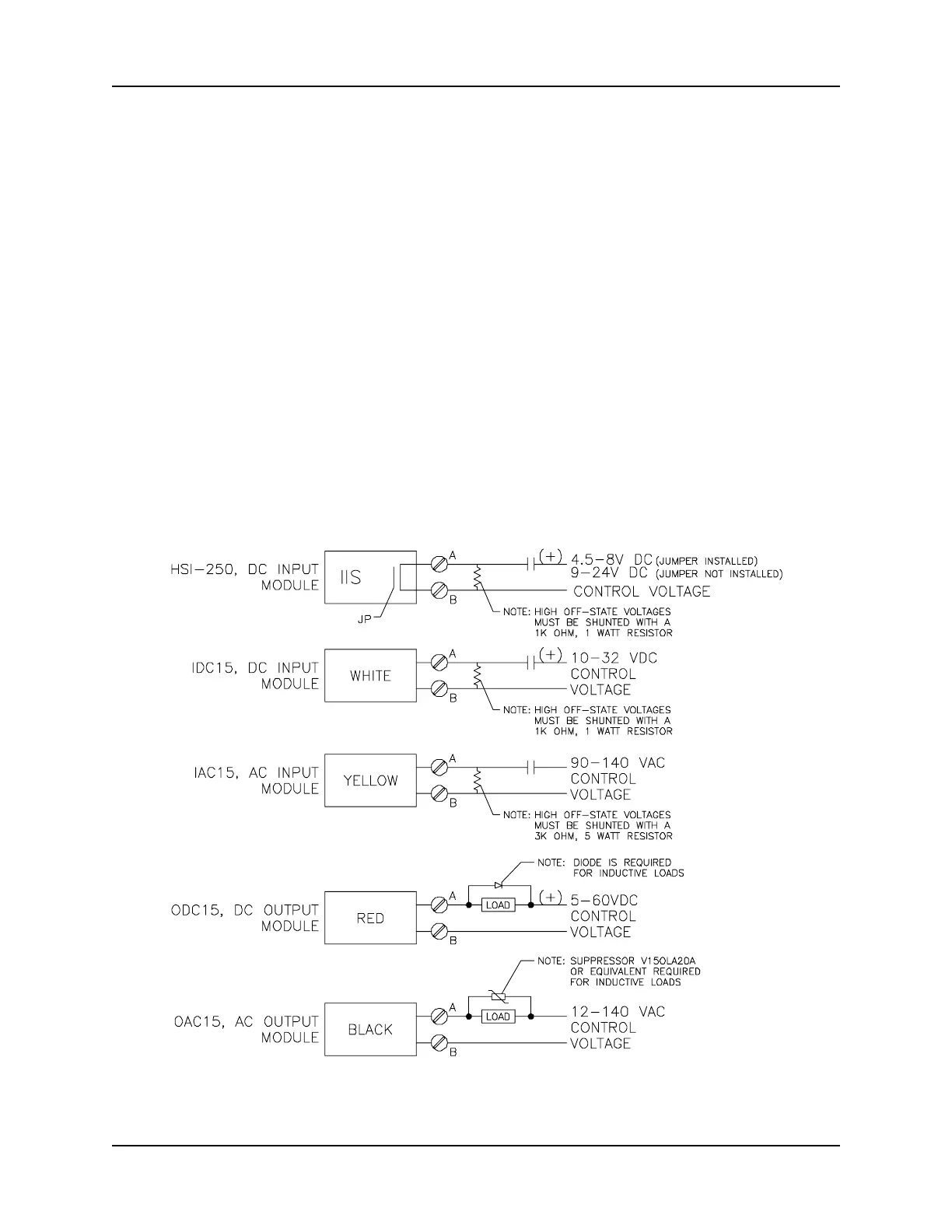

Figure 2.2 shows the proper connections for each type of input and output module. Note
Figure 2.2 - Input and Output Module Connections
