Industrial Indexing Systems MSC-250 User Manual

INDUSTRIAL INDEXING SYSTEMS, INC. IB-11B012
MOTION CONTROL SYSTEM, MSC-250 USER'S GUIDE
MARCH 2003 DESCRIPTION 1 - 3
7. Load: The load is the object of the motion. It absorbs the work
energy of the motor.
8. Feedback Device: The feedback device (always a shaft encoder or equivalent
A×B×M signal device with the MSC-250 servo controller)
monitors the position of the motor shaft and sends this
information to the controller. (Refer to Section 1.2.1.1 for
additional details on the feedback device.)
The objective of the indexing system is to accurately control the position and speed of
rotation of a motor shaft at any given time. This control may be used to move the load a
specific distance (index) or to a specific location (position). It also may be used to move
the load in a pattern duplicating the motion that would be produced by the action of
mechanical cam, remembering that motion can occur in both clockwise and
counterclockwise directions.

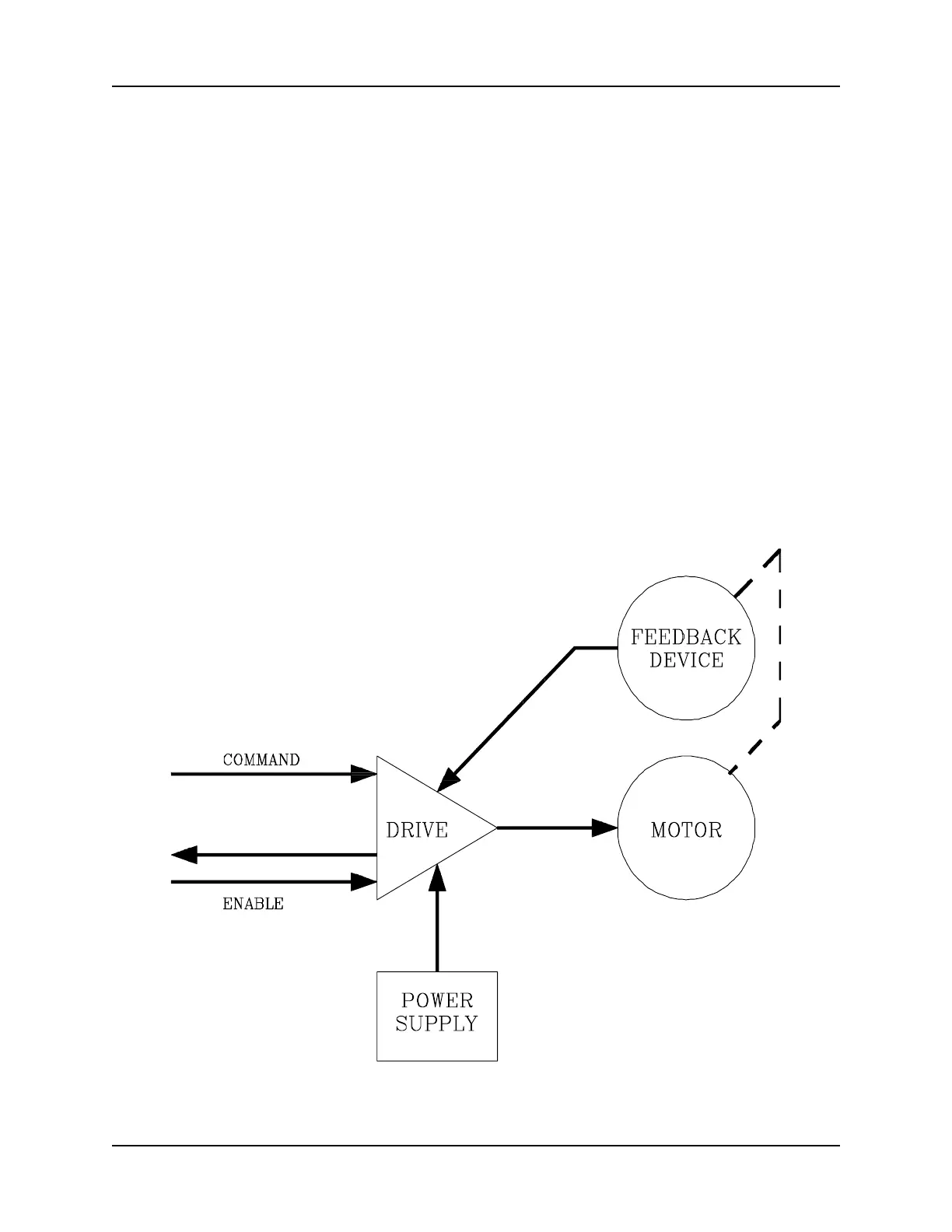

Figure 1.3 - Velocity Loop

Industrial Indexing Systems MSC-250 Specifications

General

Brand	Industrial Indexing Systems
Model	MSC-250
Category	Controller
Language	English
