• I/O module (3): Visualized information to the digital outputs
1
2
3

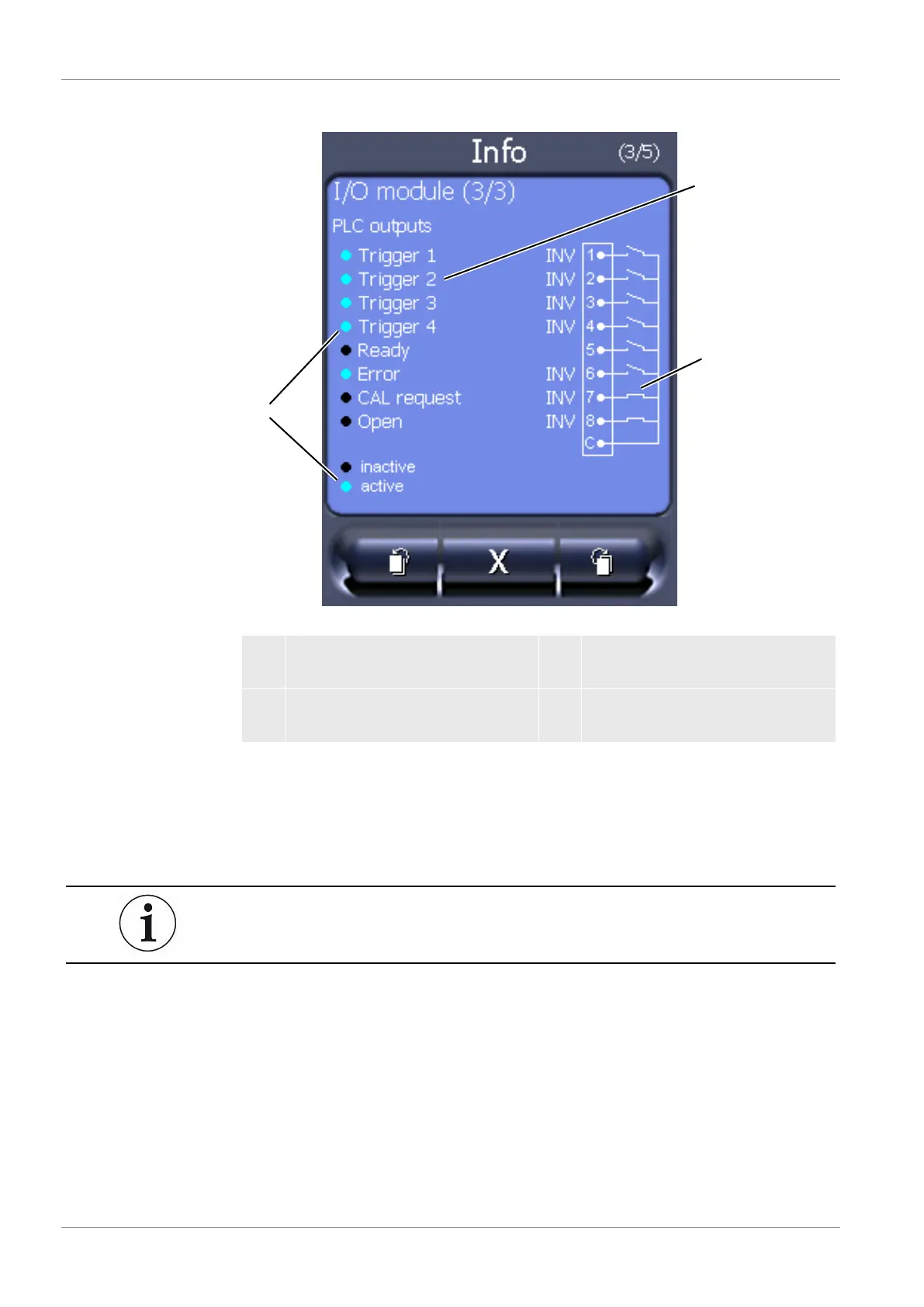

Fig.6: Visualized information to the digital outputs
1 Configured function (INV =
Function is inverted)
2 Output signal condition
3 Status of the function (active or
inactive)
• Bus module (1): Information on the bus module
• Bus module (2): Information on the bus module, continued
6.3.6 Display equivalence leak rate for other gas
Scope
The explanations on the equivalence rate only refer to sniffing operation.
If you measure with the test gases helium or hydrogen, but want to display another
gas with its leak rate, use a correction factor for the test gas used.
