Inficon Protec P3000 User Manual

General Information 23

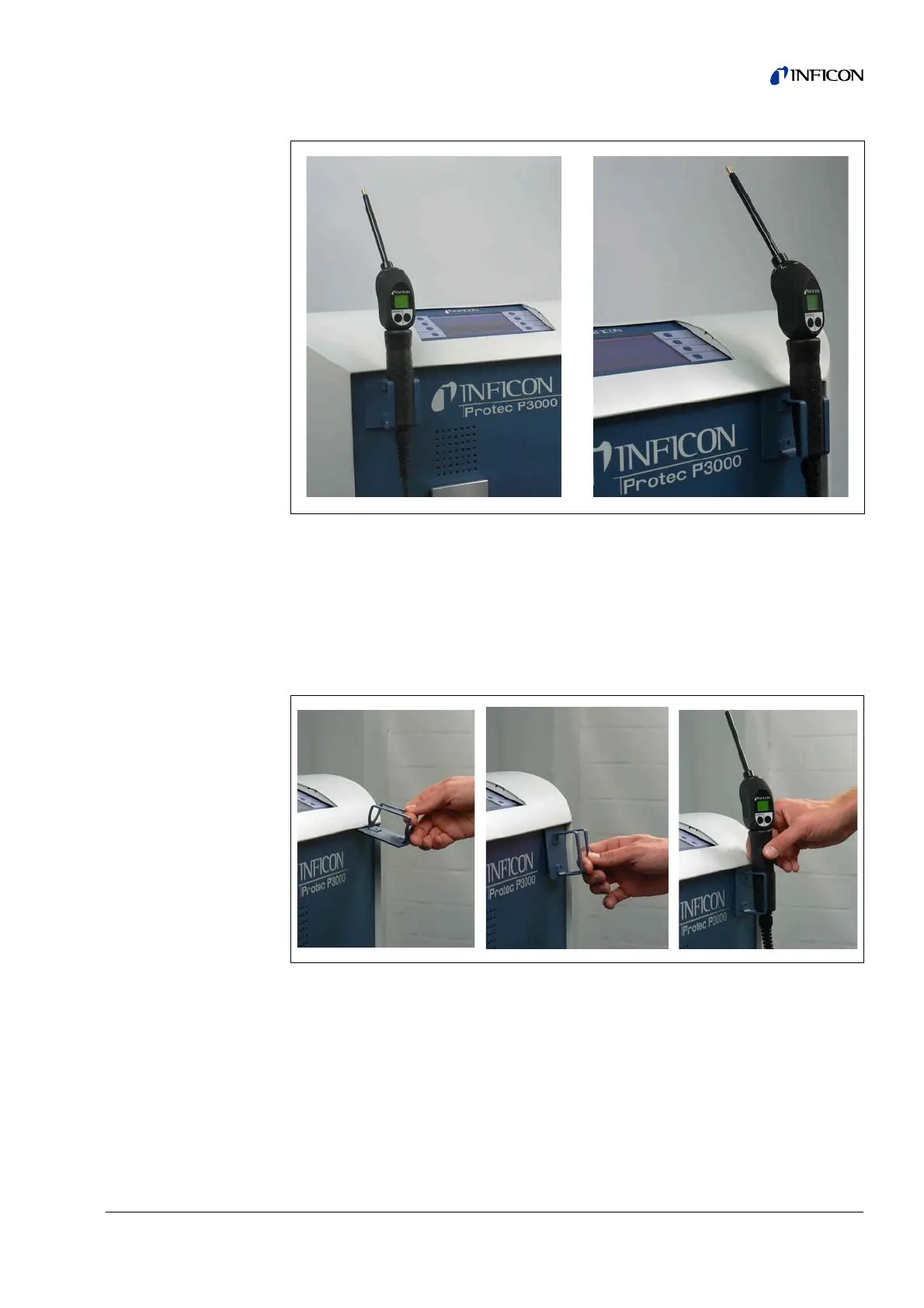

The installation is described in Fig. 8. There are two little slots on the front side at the
very top area of the blue square front of the main unit. Hold the holder horizontally
and then insert the two little hooks of the holder into the two slots (either on the right
or the left side). With the hooks still inserted, let the holder flap down. It will automa-
tically attach to the metal front by the magnet on the backside of the holder. Now
insert the sniffer probe grip into the opening of the holder and let it sink down until it
rests in the holder.
Fig. 7 Usage of sniffer line holder
Fig. 8 Installation of sniffer line holder
