Inficon Protec P3000 User Manual

Equipment Settings 59
Flow settings
(For Protec P3000XL only)
The Protec P3000XL can be used in
LOW FLOW mode as well as in HIGH FLOW mode.
In the flow settings submenu all settings related to both flow modes can be adjusted.
When entering the
FLOW SETTINGS submenu four further submenus will be displayed:
Flow limits
LOW FLOW
In this submenu the UPPER FLOW LIMIT and LOWER FLOW LIMIT for the LOW FLOW mode
may be set-up. The
LOWER FLOW LIMIT can be set to values between 150 and 240
sccm. Default value: 180
The
UPPER FLOW LIMIT can be varied between 300 and 650 sccm. Default value: 395

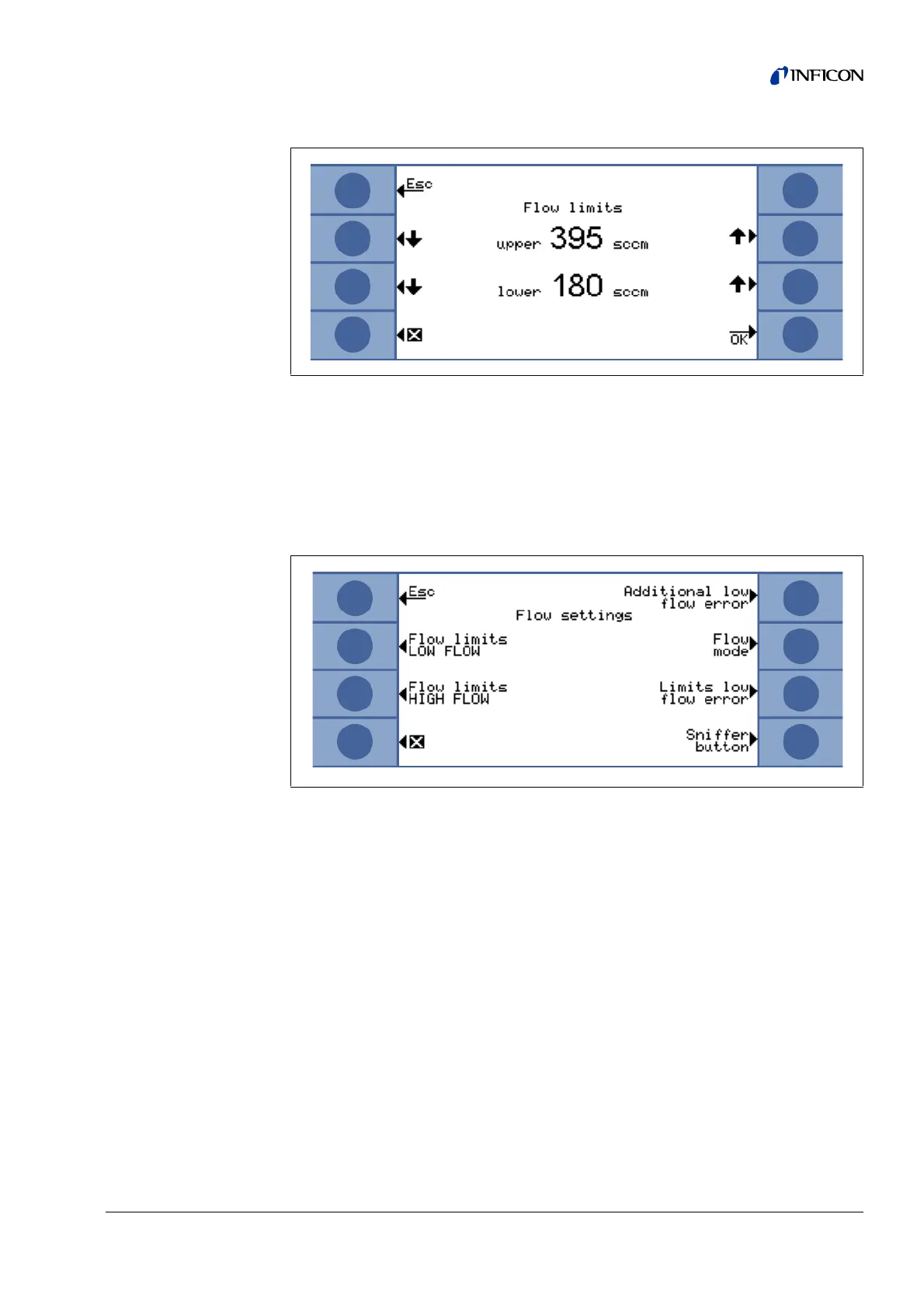

Fig. 49 Changing the flow limits of the SL3000 sniffer line
Fig. 50 Setting up flow settings
