InFocus LP340B - Components Exploded View

LP340/340B/350 Service Manual 106

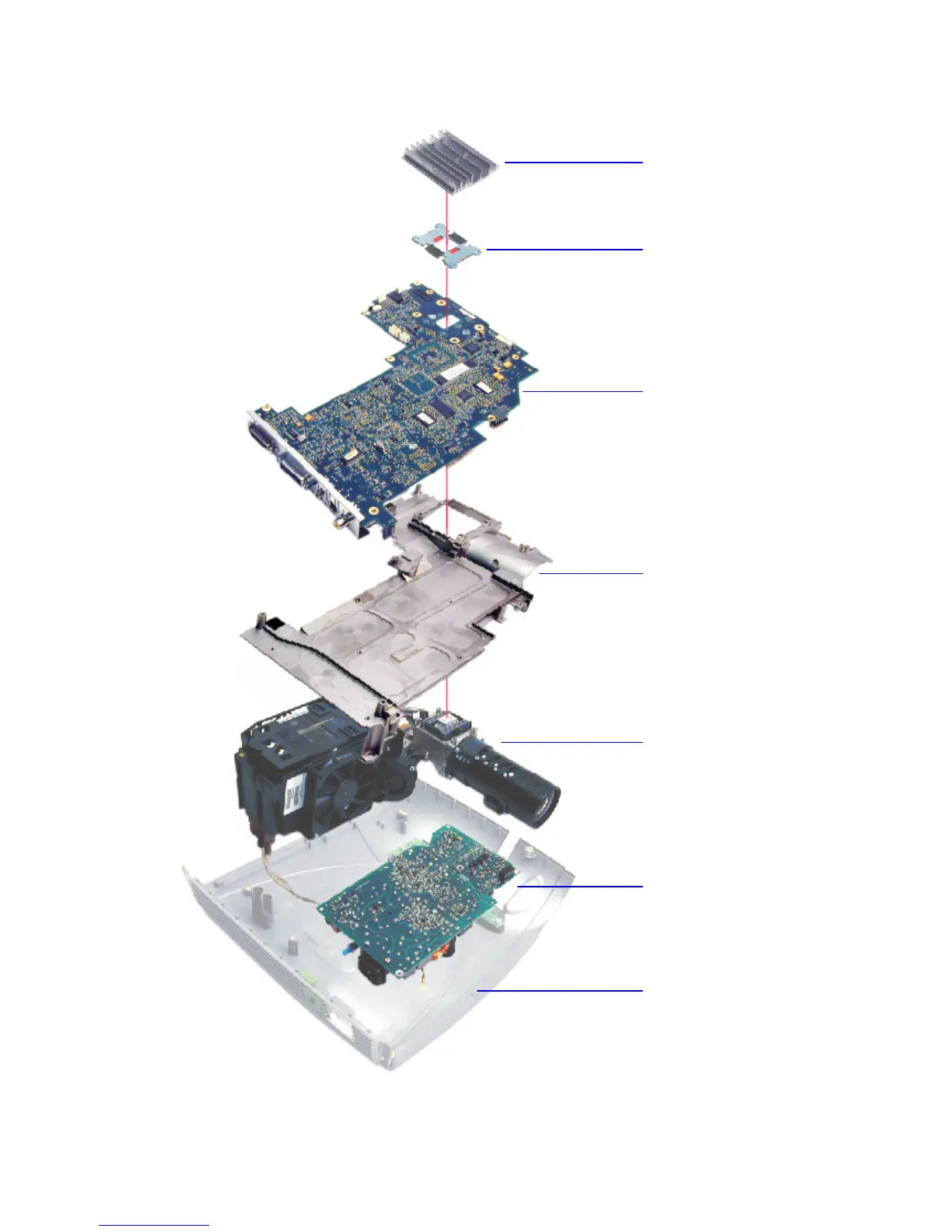

Components Exploded View
∗ The power supply fastens to the bottom of the chassis.
DMD heat sink
Part of DMD mounting kit
505-0778-xx
DMD stiffener
Part of DMD mounting kit
505-0778-xx
Controller ECA
LP340: 510-1508-xx
LP340B: 510-1573-xx
LP350: 510-1524-xx
Chassis
330-0602-xx
Optical engine
LP340/340B: 530-0111-xx
LP350: 530-0110-xx
Power supply *
510-1486-xx
Top case
