LP340/340B/350 Service Manual 36

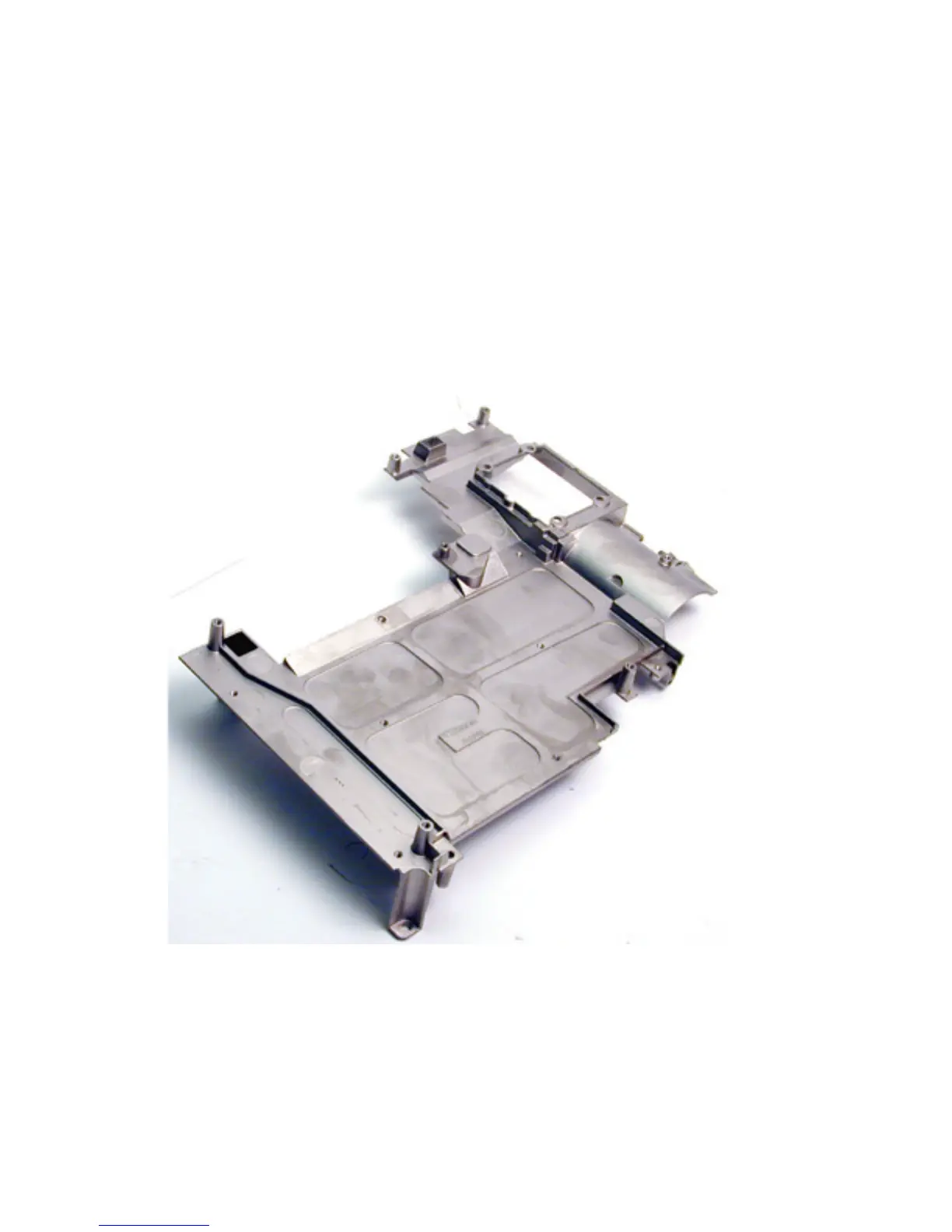

Chassis
The magnesium chassis (330-0602-xx) provides the necessary rigidity for the projector’s internal
components, yet it adds very little to the overall weight.
1 Remove the following items:
Chassis and attached parts from the top case (see page 28).
Controller ECA (see page 40).
Optical engine (see page 48).
Power supply (see page 34).
You’re left with the bare chassis.
