LP340 / LP350 Service Guide 50
Installing the Optical Engine
1 Place the engine on a soft, ESD-protected work surface.
2 Remove the DMD protective cover.

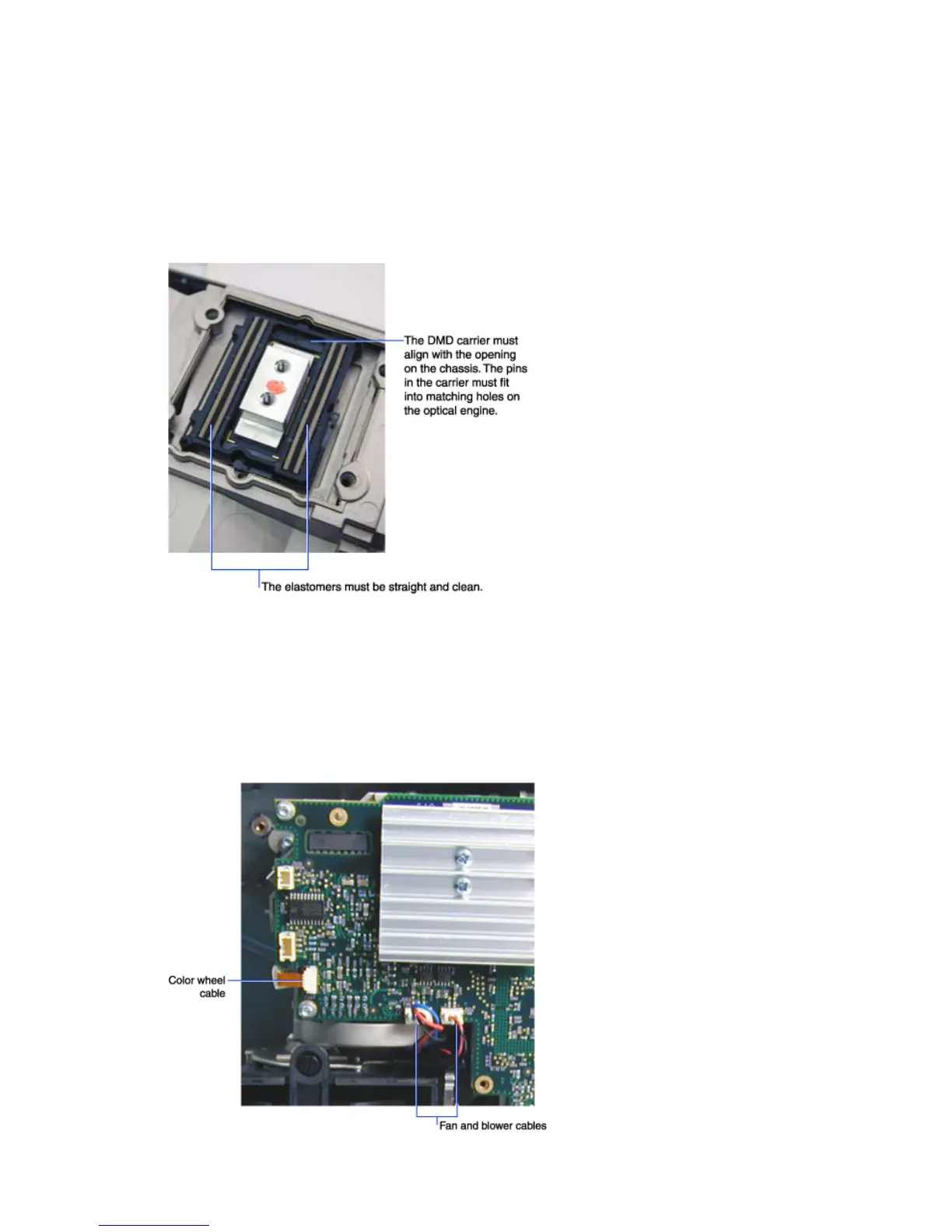

3 Carefully lower the chassis (and attached power supplies) into place over the engine. Make sure
the DMD and elastomer align with the opening in the chassis.
4 Check the condition of the elastomers on the DMD. If necessary, clean the elastomers. See page
59 for details.
5 Take note of the DMD bias setting (page 45) on the label affixed to the rear of the DMD.
6 Install the controller ECA (see page 45).
7 Attach the color wheel ribbon cable and the lamp and blower fan cables.
