LP340/340B/350 Service Manual 20
Leveling Foot
The leveling foot (505-0777-xx) is located on the rear corner adjacent to the lamp housing. It allows the
user to adjust the horizontal tilt of the projector.
The leveling foot is comprised of a rubber foot, a shaft and a screw that fastens the two pieces together.
NOTE If you need to replace only the foot itself, follow only steps two, three and four below.

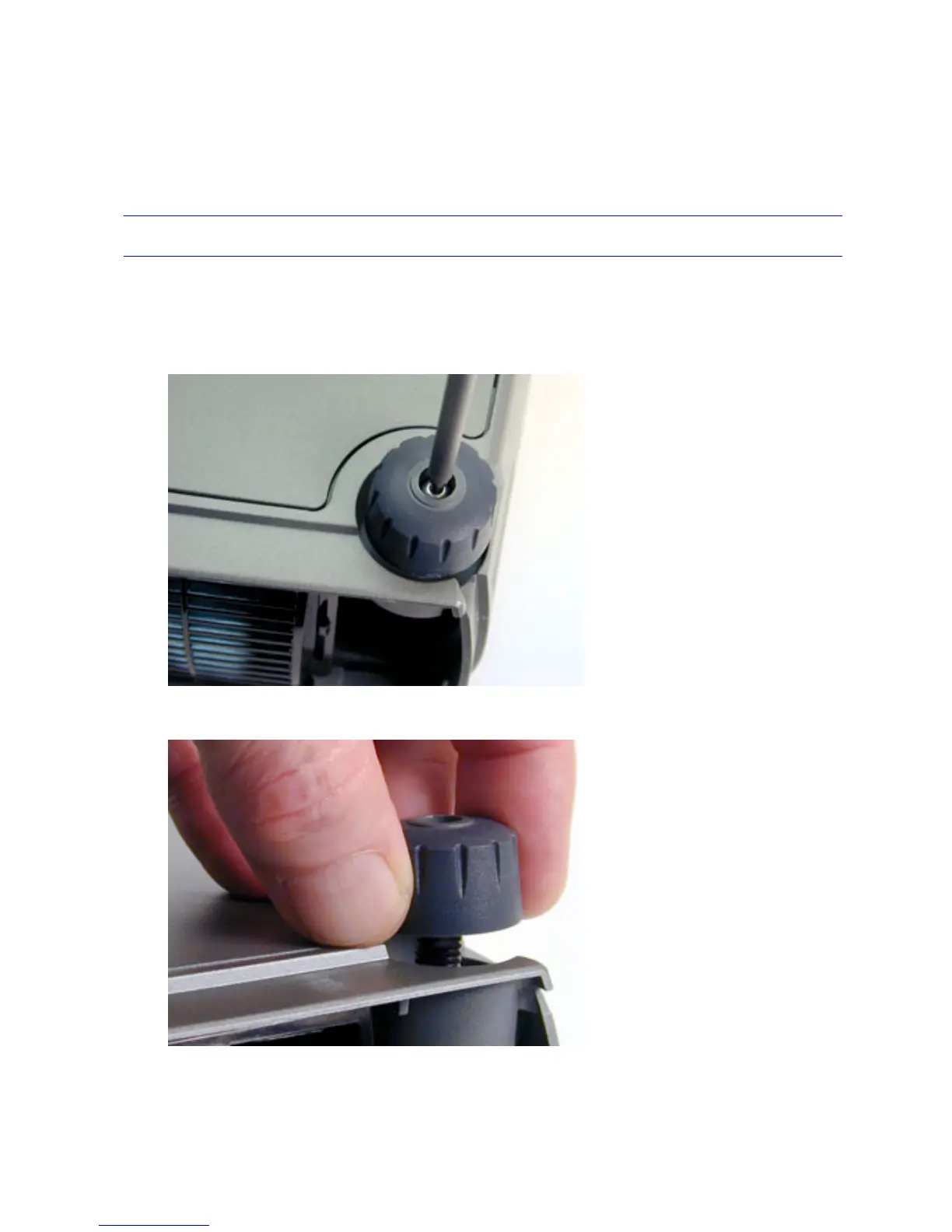

1 Remove the bottom case (see page 17).
2 Turn the leveling foot counterclockwise until it is fully extended.
3 Use a T-10 Torx driver to remove the M3x8 plastite screw from the bottom of the leveling foot.
4 Pull the foot off of the shaft.
