LP340/340B/350 Service Manual 37
Top Case
The top case (LP340: 505-0634-11; LP340B: 505-0926-xx; LP350: 505-0634-01) encloses the top half of
the projector. When you replace the top case, you must first remove all the parts in the old case, then
install them in the new top case. In the LP340/340B/350, you can remove most of the interior parts at
once.
1 Remove the chassis and attached parts from the top case (page 28).
2 Remove the keypad (page 38).

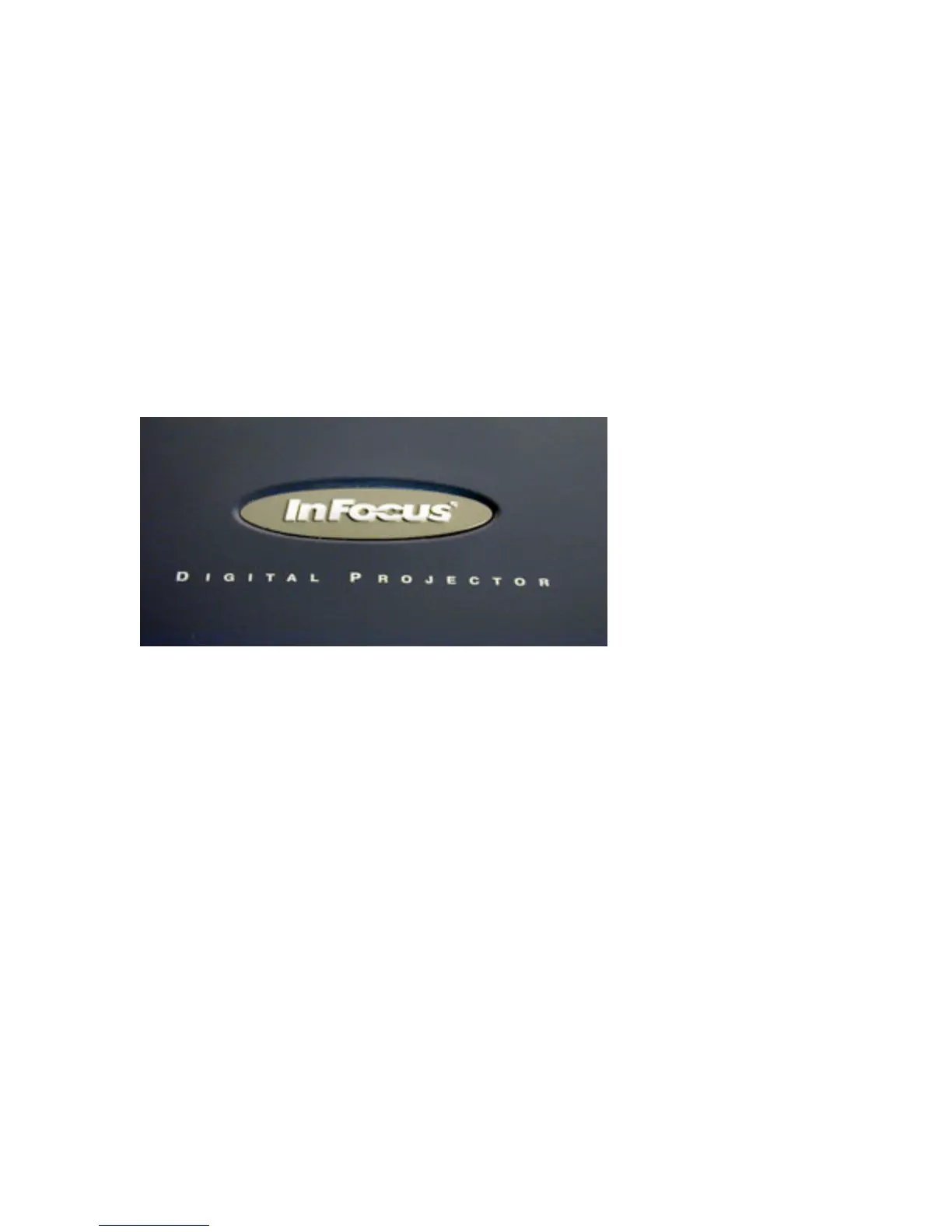

You’re left with the top case
Assembly Note
♦ Adhere an InFocus nameplate label (020-0846-xx) to the new top case.
To Next Page
