LP340 / LP350 Service Guide 10
Lamp Module and Lamp Door
The lamp module (SP-LAMP-LP3F) consists of a reflector assembly and frame. The reflector assembly
contains a metal halide arc and a reflector. A frame made of metal and plastic holds the reflector
assembly in place inside the projector.
The lamp door (505-0638-xx) covers the lamp module. It includes a tab that closes the interlock switch
when the door is shut. The projector will not operate without the lamp door in place.
CAUTION! The lamp module gets very hot during operation. Allow the lamp to cool for 30 minutes before
handling it.
1 Place the projector on its top on a soft surface.

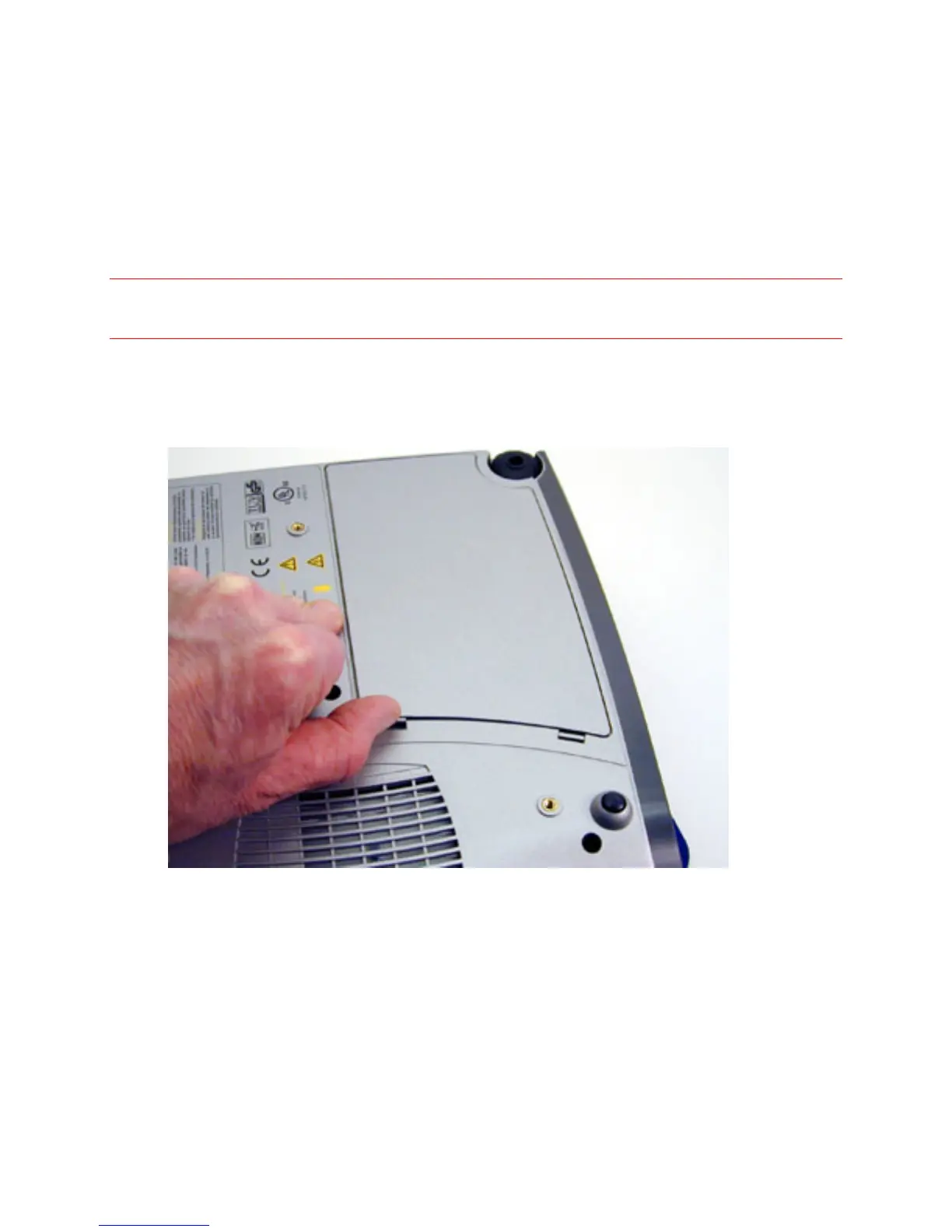

2 Release the two tabs on the inside edge of the lamp door with your fingers, then lift the door off of
the projector.
