LP340/340B/350 Service Manual 11

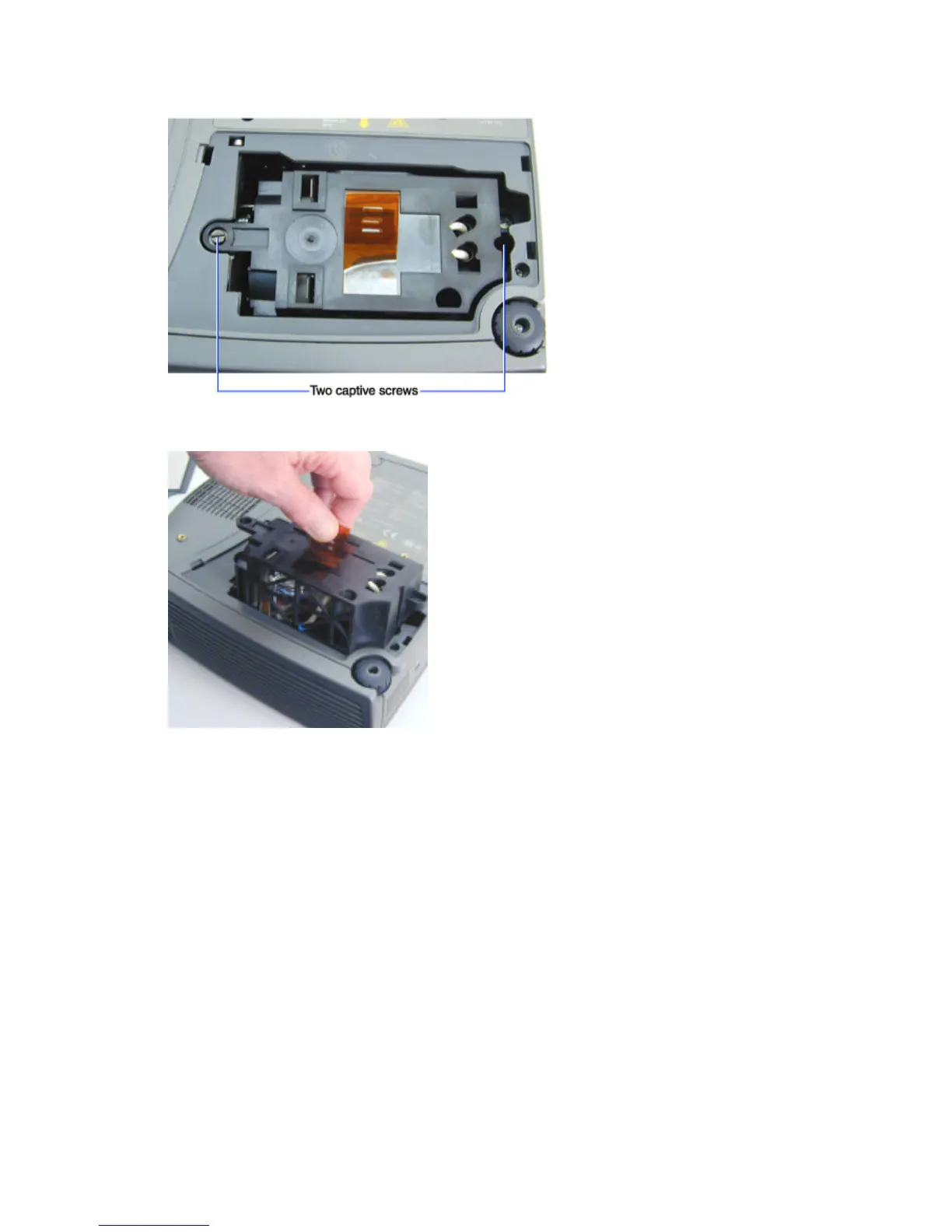

3 Loosen the two captive screws that secure the lamp to the lamp housing.
4 Grasp the tape in the middle of the lamp, then lift the module out of the projector.
Assembly Notes
♦ The lamp must be seated properly and the lamp door must be in place for the lamp to ignite.
♦ Torque the two captive screws to 6 in.-lbs. (.678 N m).
♦ If you installed a new lamp module, you must reset the lamp timer. See page 60.
