LP340/340B/350 Service Manual 39

I/O EMI Shield

The I/O EMI shield (LP340/LP350: 330-0604-xx; LP340B: 330-0461-xx) covers the connectors on the

side of the projector.

1 Remove the bottom case (see page 17).

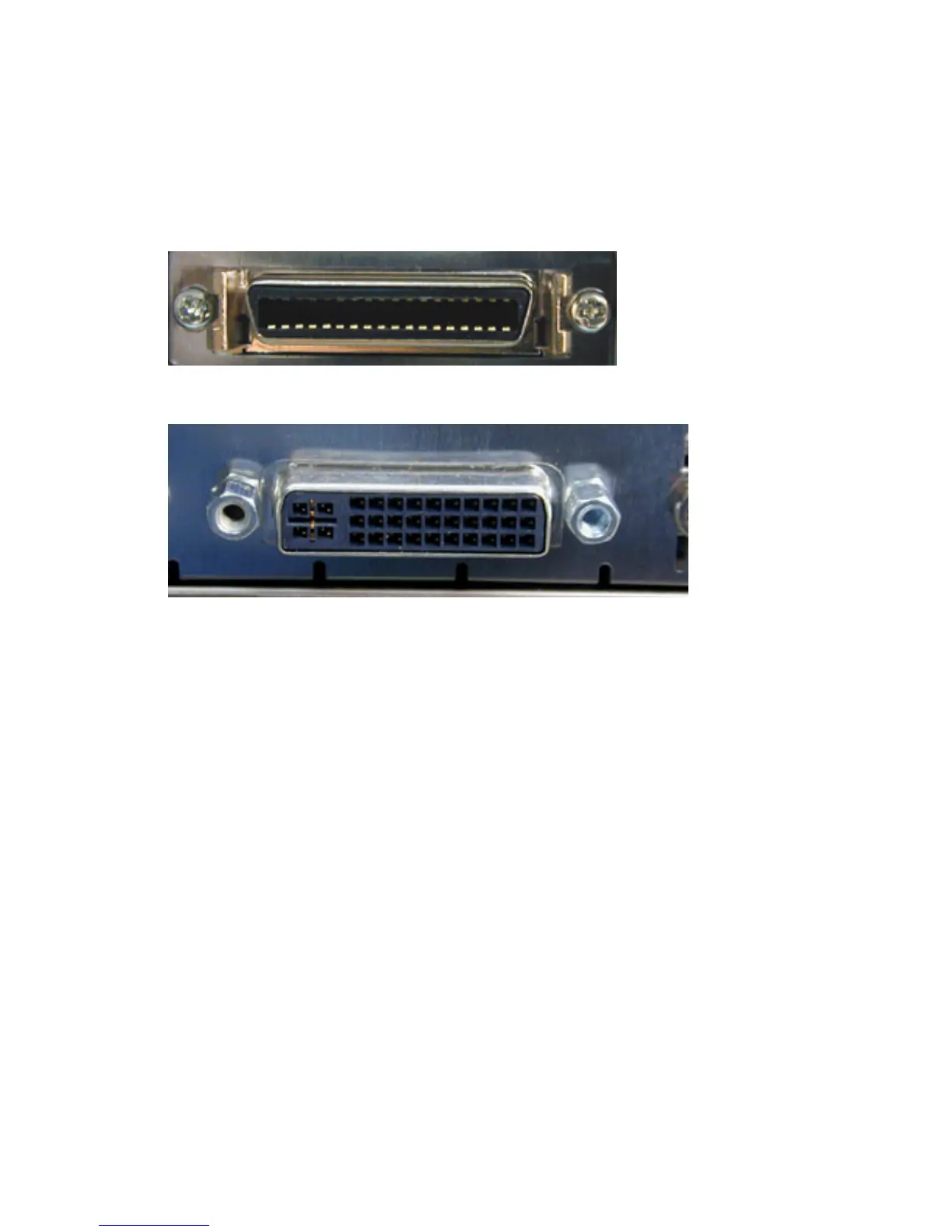

2 Remove the two Phillips screws on either side of the CableWizard connector.

3 Remove the two jack screws on either side of the M-1 connector.

4 Gently work the shield off of the connectors.

Assembly Notes

♦ Make sure the small fingers in the holes that fit over the S-Video and composite video connectors fit

snuggly.

♦ Make sure the fingers on the bottom of the shield contact the chassis. Contact assures that video and

audio noise drain off to ground.

♦ Torque the two screws and two jack nuts to 4 in.-lbs. (.452 N m).
