LP340/340B/350 Service Manual 45
Installing the Controller ECA

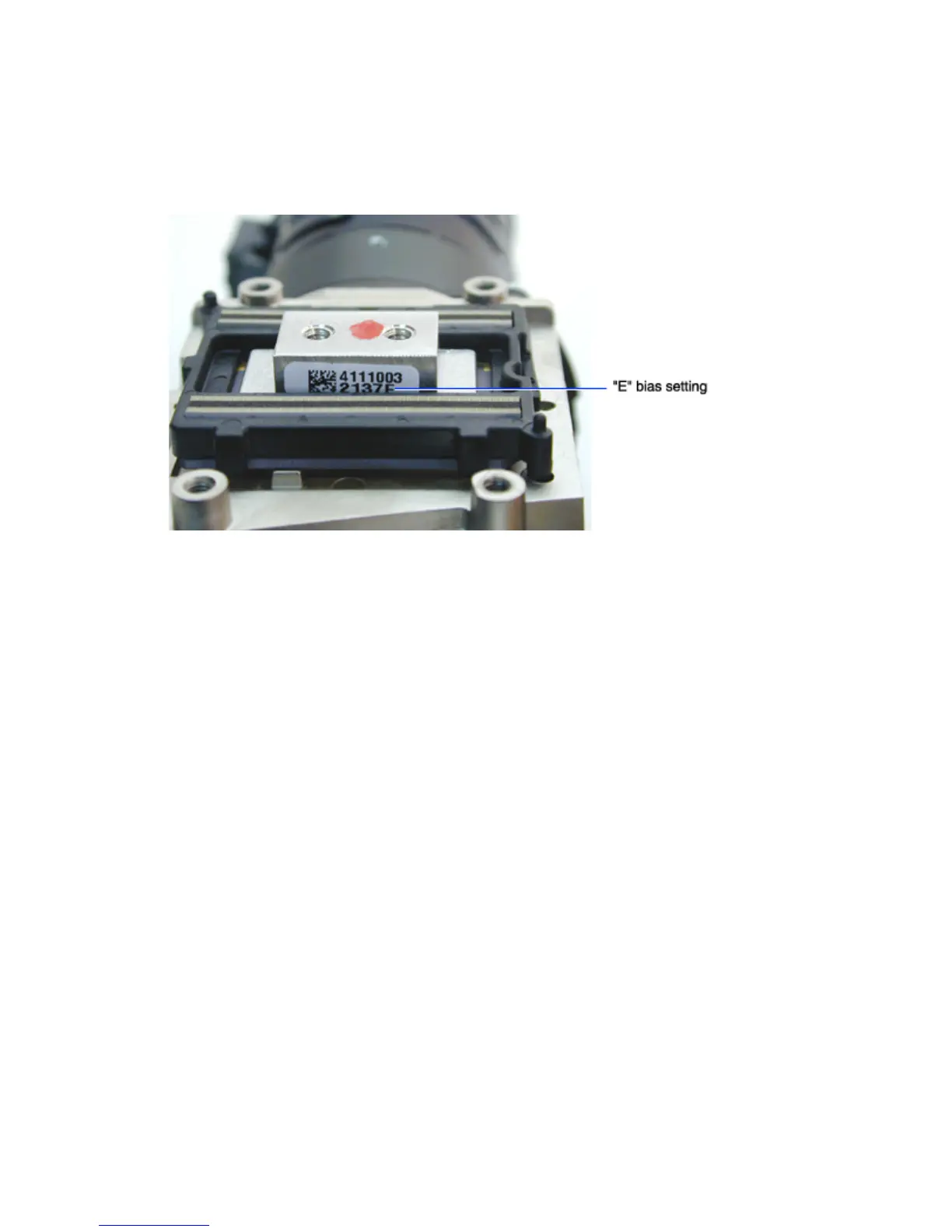

1 Take note of the DMD bias setting on the label affixed to the rear of the DMD. The label indicates
the DMD bias setting. You need to know whether the DMD bias setting is A, B, C, D or E. The
example below is E.
2 Check the condition of the elastomers on the DMD.
If necessary, clean the elastomers. Do not touch the elastomers with your fingers or lift the
DMD off of the engine. For information about cleaning the elastomers, see Special handling for
the DMD on page 61.
3 Place the controller onto the engine and chassis so the DMD fits into its opening in the controller.
Align the controller/power supply connector in the front. Gently press the controller down to
engage the connector.
