LP340/340B/350 Service Manual 46

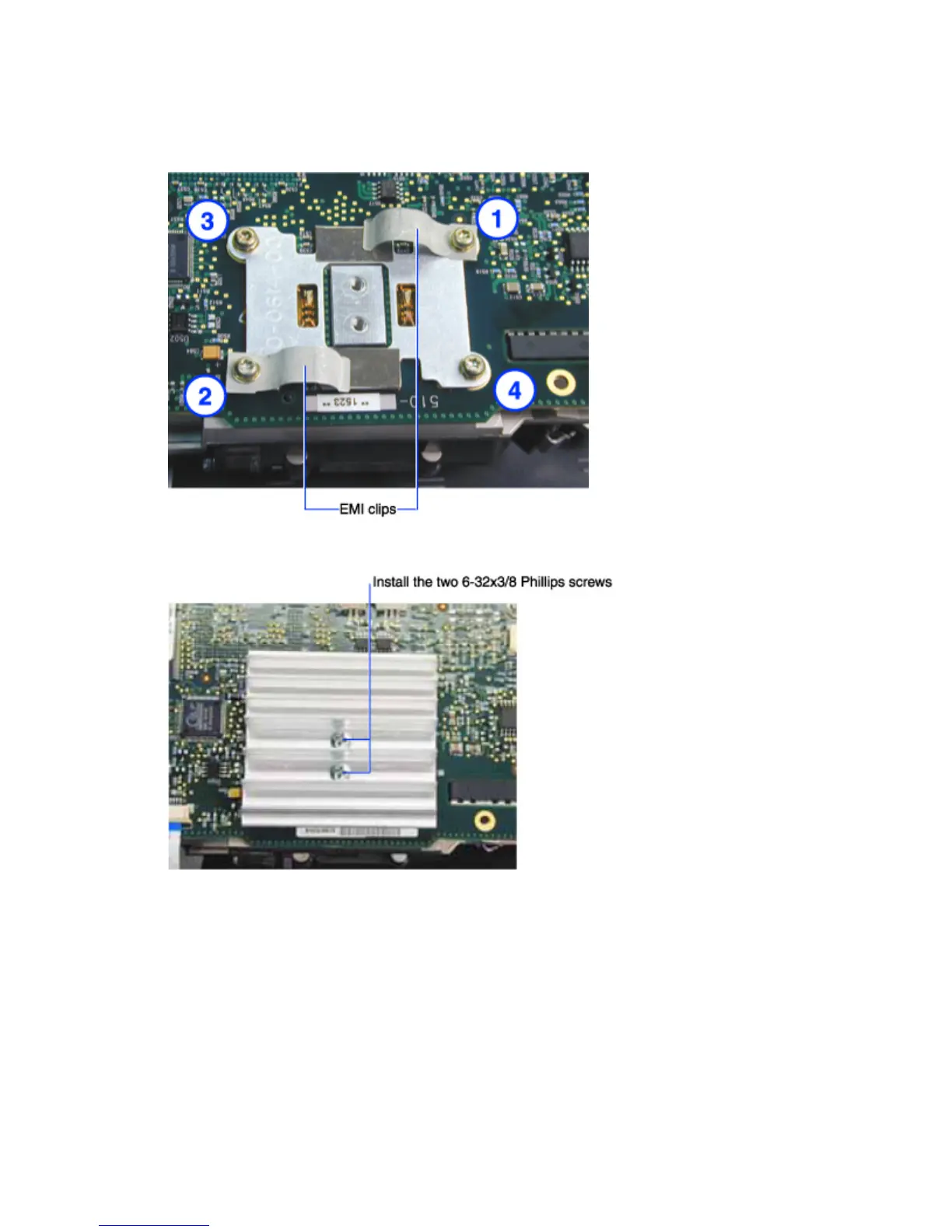

4 Place the DMD stiffener over the DMD. Place the two EMI clips on opposite corners. Then fasten
the pieces down with the four M3x10 Phillips screws in an ‘X’ fashion as indicated by the numbers
in the illustration below. Torque the screws to 6 in.-lbs. (.678 N m).
5 Install the DMD heat sink. Torque the two 6-32x¼" Phillips screws to 6 in.-lbs. (.678 N m).
