Parts Replacement

Major Part Locations

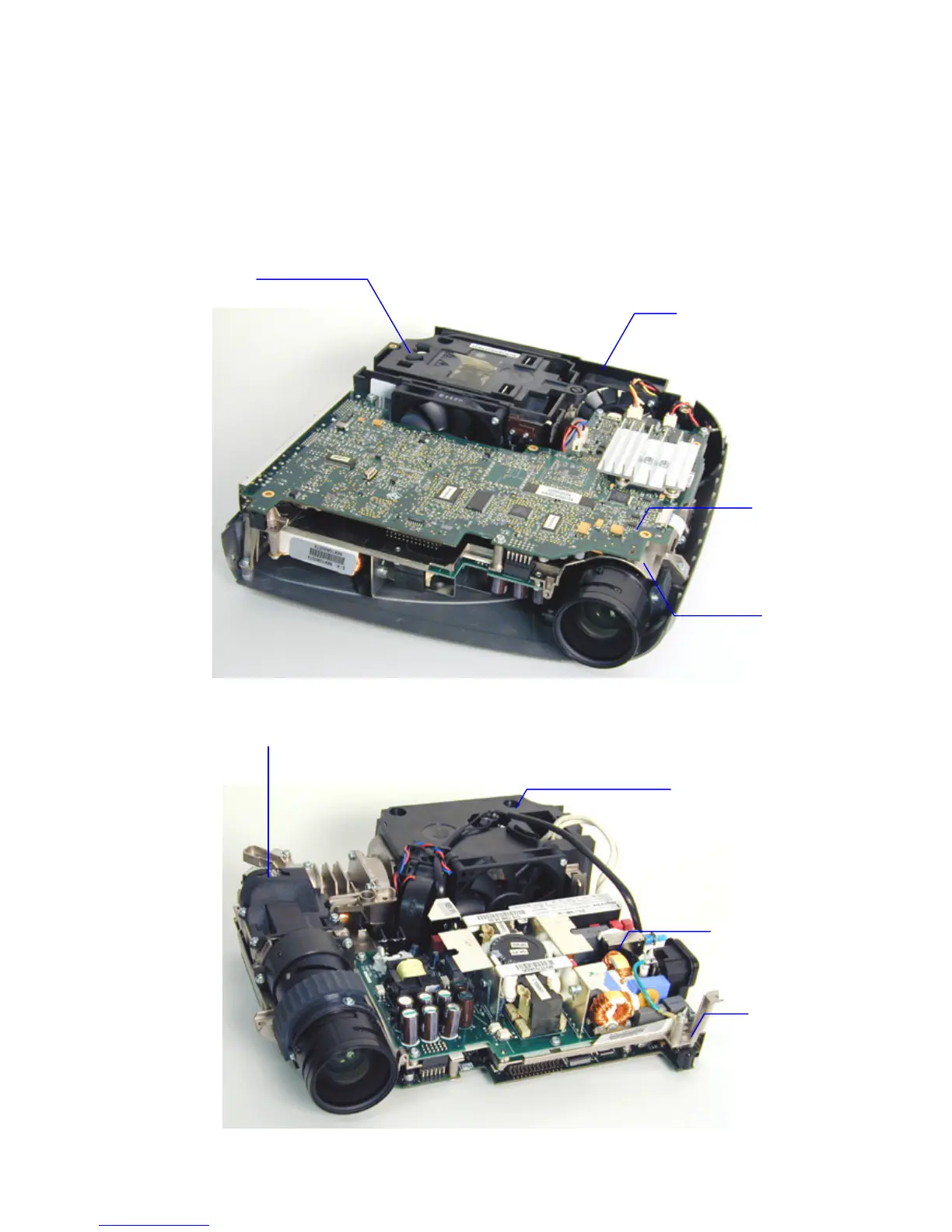

The top illustration shows the parts fastened to the chassis and installed in the top case. The bottom

illustration shows the chassis and attached parts removed from the top case and placed upside down.

Speaker/fan bracket

505-0643-xx

Optical Engine

LP350: 530-0110-xx

LP340/LP340B: 530-0111-xx

Lamp fan

(526-0058-xx)

Controller ECA

LP350: 510-1523-xx

LP340: 510-1485-xx

LP340B: 510-1573-xx

Power supply

510-1486-xx

Chassis

330-0602-xx

Chassis

330-0602-xx

Lamp module

(SP-LAMP-LP3E)

and

Lamp housing

All: 505-0632-xx
