LP340/340B/350 Service Manual 15
Assembly Notes

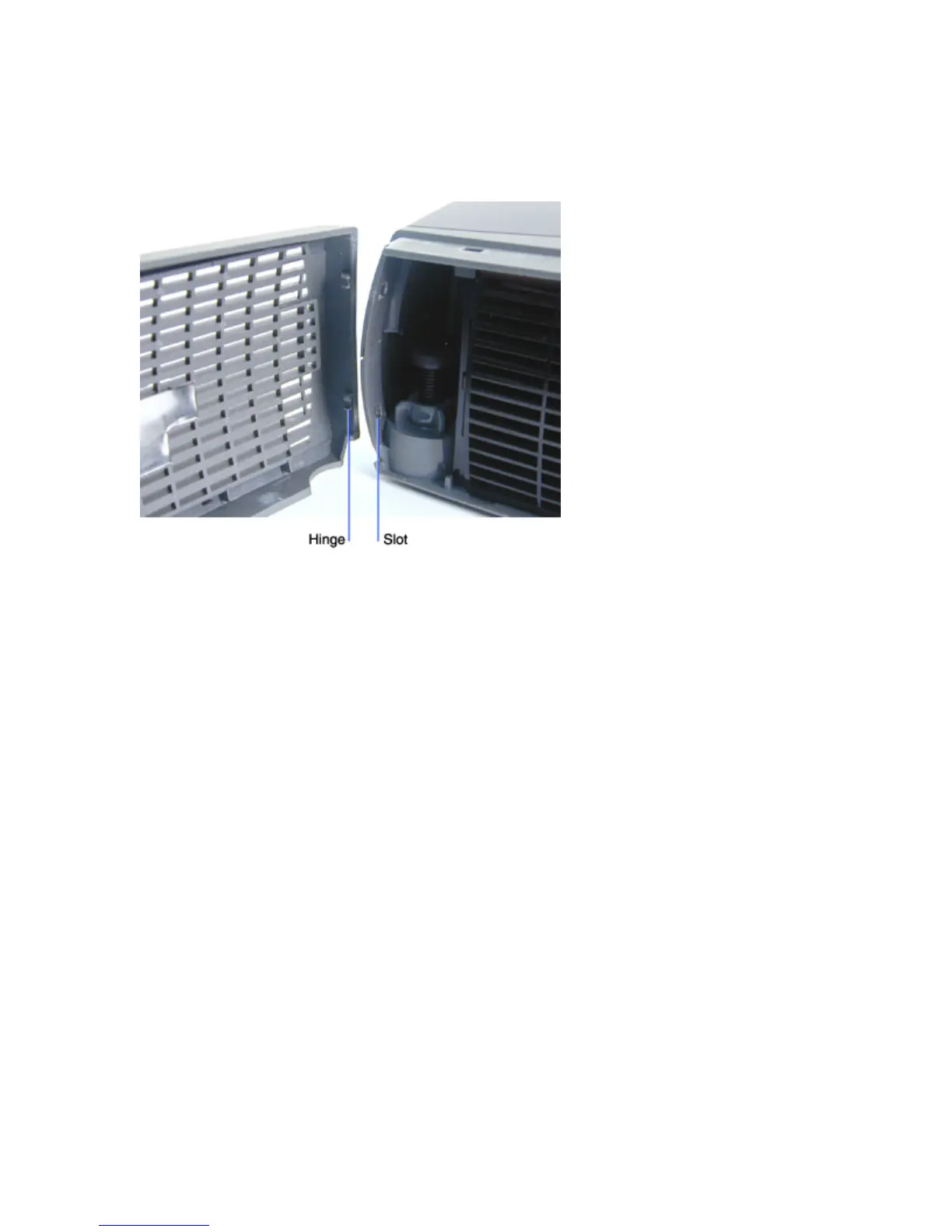

♦ Insert the two hinges on the left side of the bezel into their matching slots on projector. Then swing
the bezel into place. Fasten the bezel to the projector with the black M3x8 screw. Tighten the screw
to 4 in.-lbs. (.452 N m)
♦ Press the nameplate onto the rear bezel over the screw. It should fit flush against the bezel.
