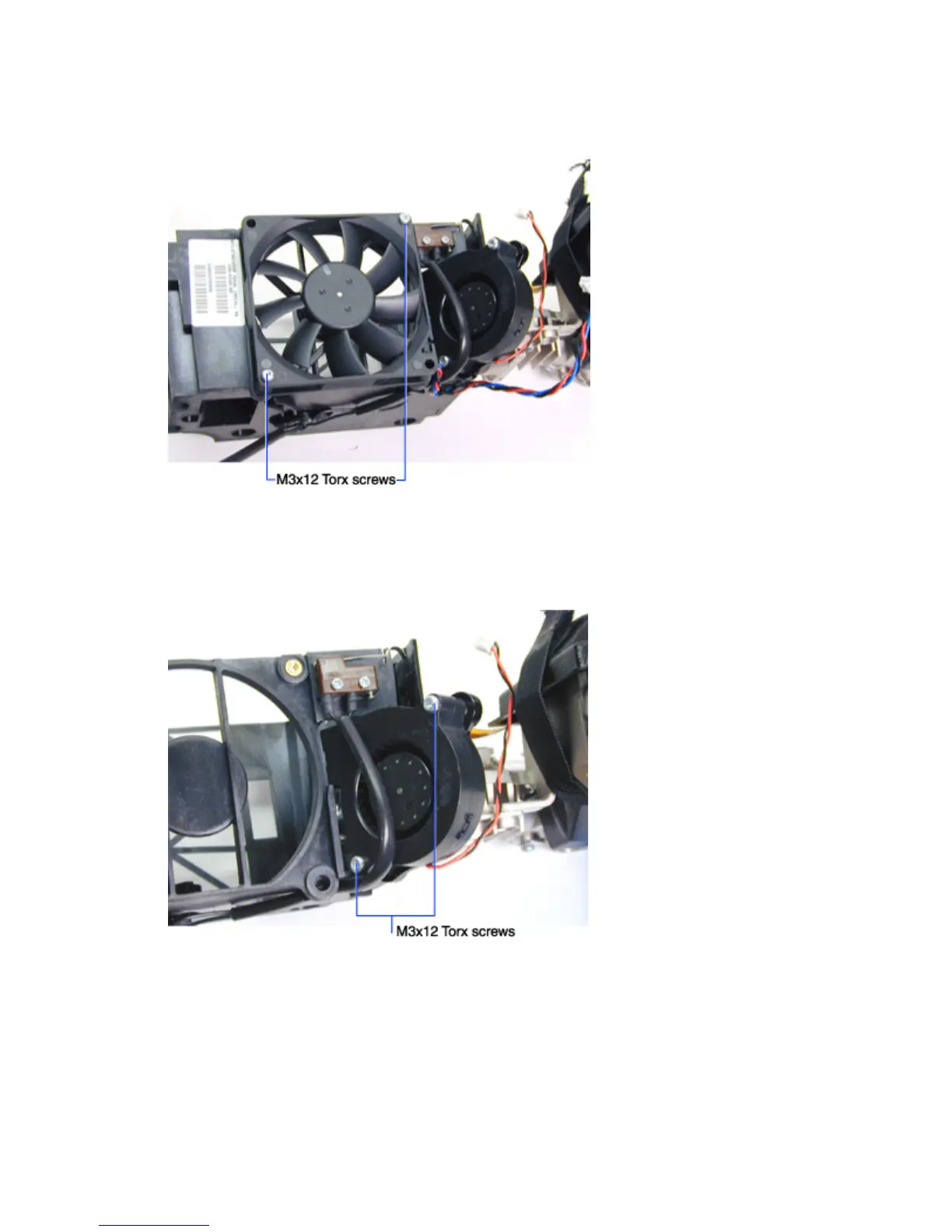

LP340/340B/350 Service Manual 53
4 Remove the two M3x12 Torx screws that fasten the 60mm lamp fan to lamp housing. Then
remove the fan.
To remove the lamp blower
1 Remove the two M3x12 Torx screws that fasten the blower to the lamp housing.
Assembly Notes
♦ The side of the fan that includes the foil reflector faces inward.
