LP340/340B/350 Service Manual 59

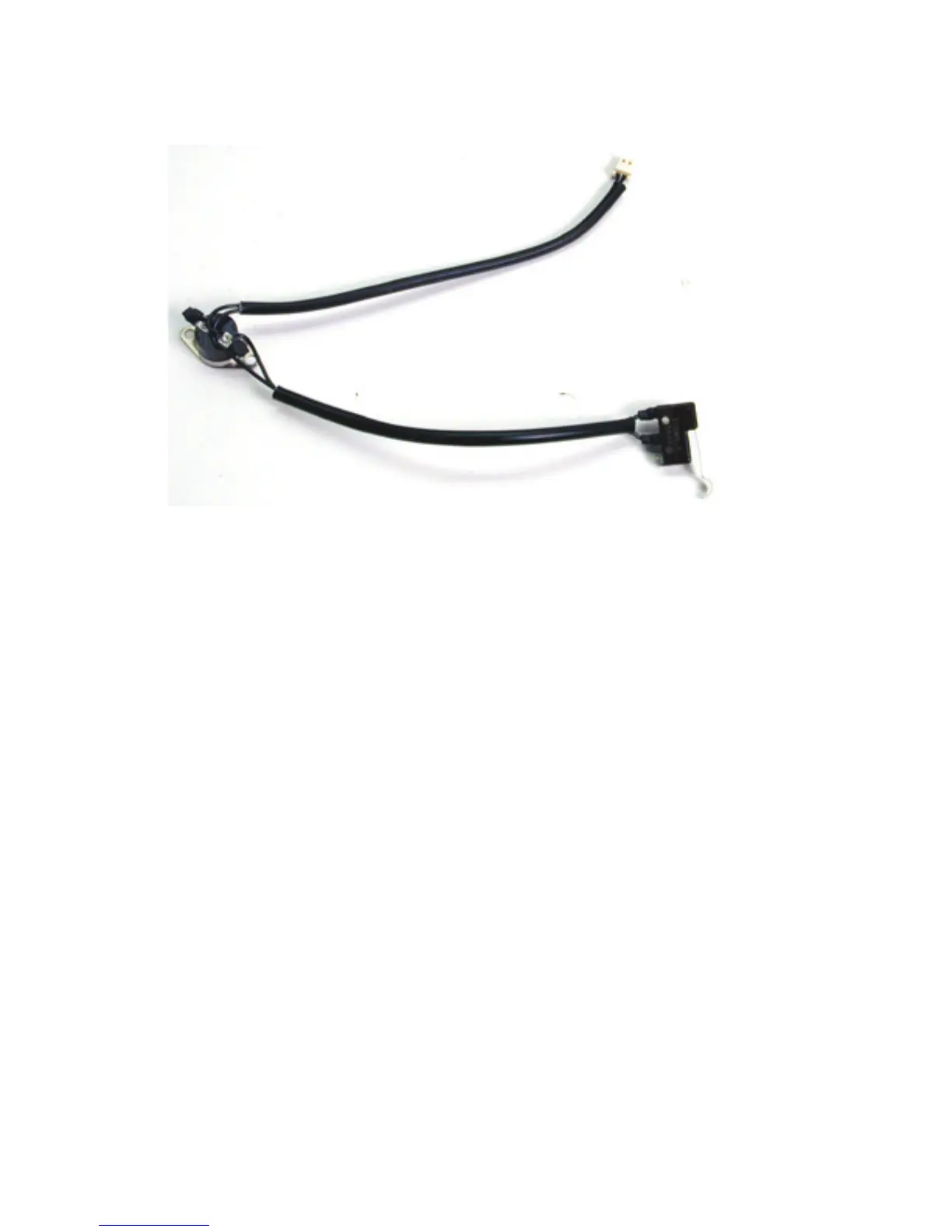

6 Remove the safety switch assembly from the projector. Note that you pull the interlock switch
between the power supply and lamp housing.
Assembly Notes
♦ When you install the safety switch assembly, begin with the thermal switch. This leaves room for you
to rotate it into position without stretching the wires that lead to the interlock switch.
♦ Make sure to secure the cable on the clip on the bottom of the lamp housing.
