LP340/340B/350 Service Manual 63
To assemble the DMD, the DMD carrier and elastomers
If the DMD comes out of its carrier or if the elastomers fall out, it must be reassembled properly.
The DMD carrier and elastomers are available in the DMD elastomer kit (505-0779-xx). A new DMD is
available only with a new optical engine. It cannot be ordered separately.

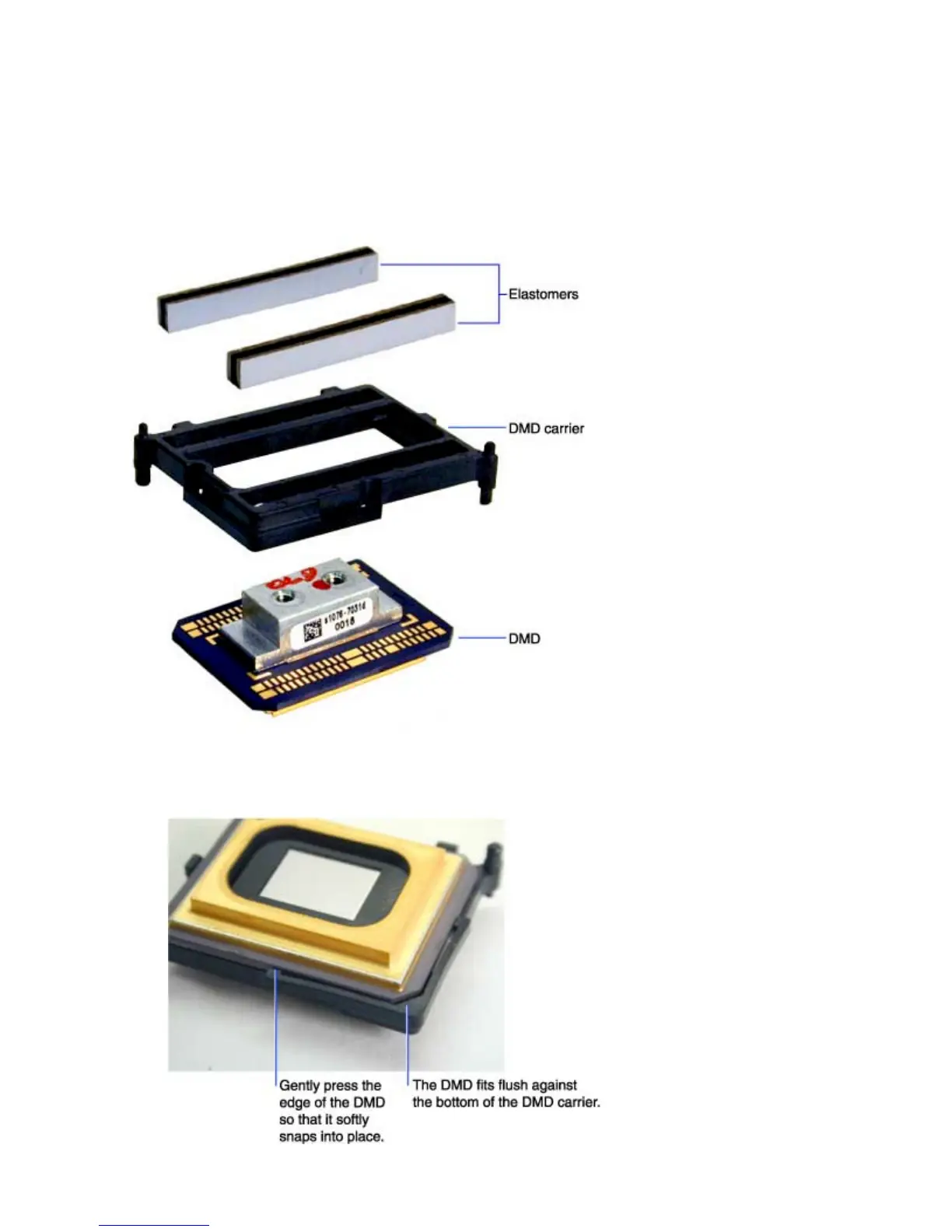

Below is an exploded view of the LP350 DMD and its carrier and elastomers. The LP340/340B is similar.
1 Turn the carrier upside down and place the top of the DMD on the carrier. Note that it fits only one
way.
