Infranor XtrapulsGem Installation Guide

26
Chapter 3 – Inputs-Outputs
XtrapulsPac Installation Guide

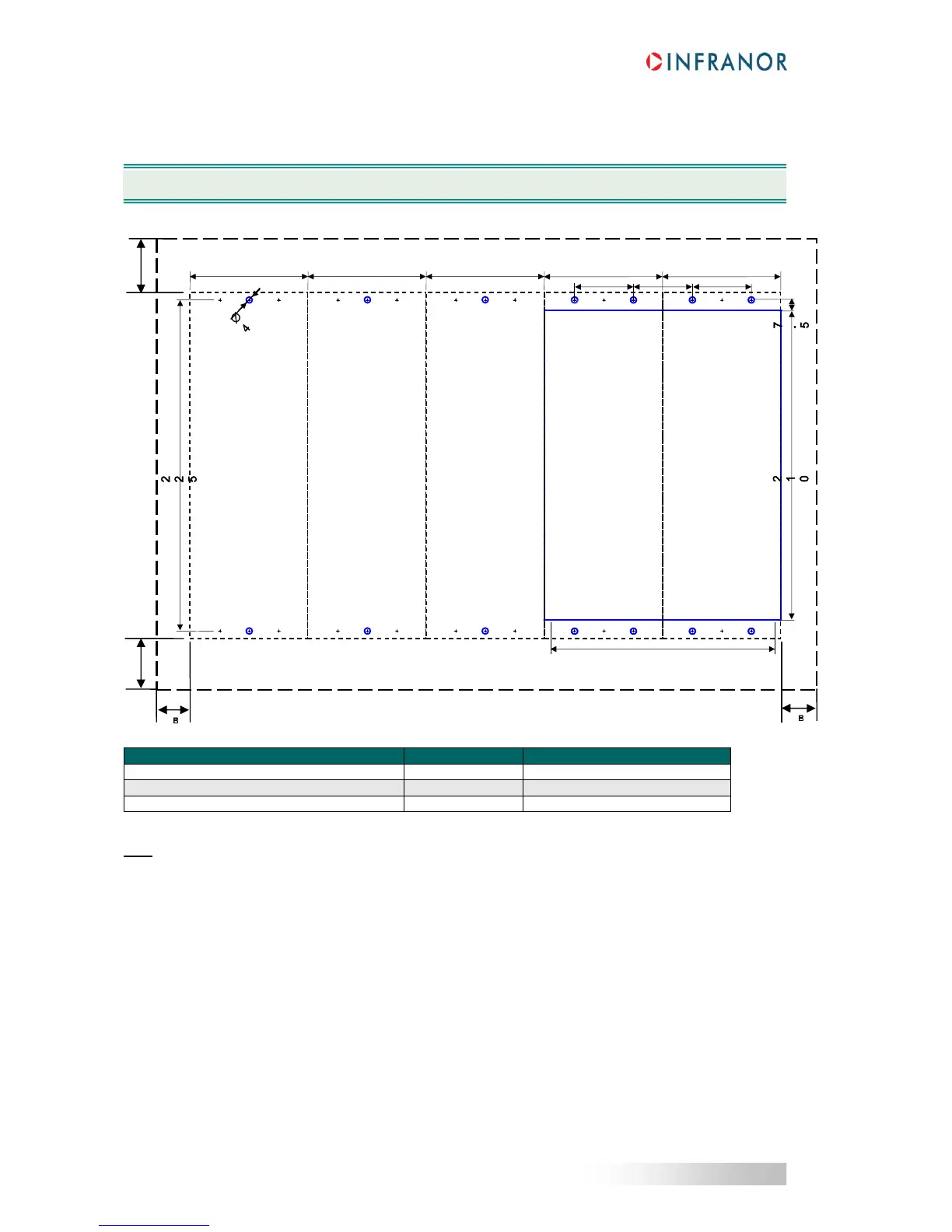

2.2.7 - XtrapulsPac 400 V: Panel layout dimensions
Dimensions are given in mm.
Description
Symbol
XtrapulsPac
Minimum top and bottom clearance
A
50
Minimum side clearance
B
10
Recommended pitch (ST, PT and CP)
D
80*
Note:
* Due to width tolerances and thermal considerations, it is recommended avoiding the close mounting of two
XtrapulsPac 400 V / 100 A and 200 A drives side by side (recommended pitch = 100 mm).
GDPS
XtrapulsPac ST
Standard mounting
N  D
D
D
D
40
40
40
D
D
XtrapulsPac ST
Standard mounting
XtrapulsPac PT
Push-through
mounting
XtrapulsPac PT
Push-through
mounting
A
A
VERTICAL MOUNTING IS MANDATORY
