Infranor XtrapulsGem Installation Guide

58
Chapter 4 - Connections
XtrapulsPac Installation Guide

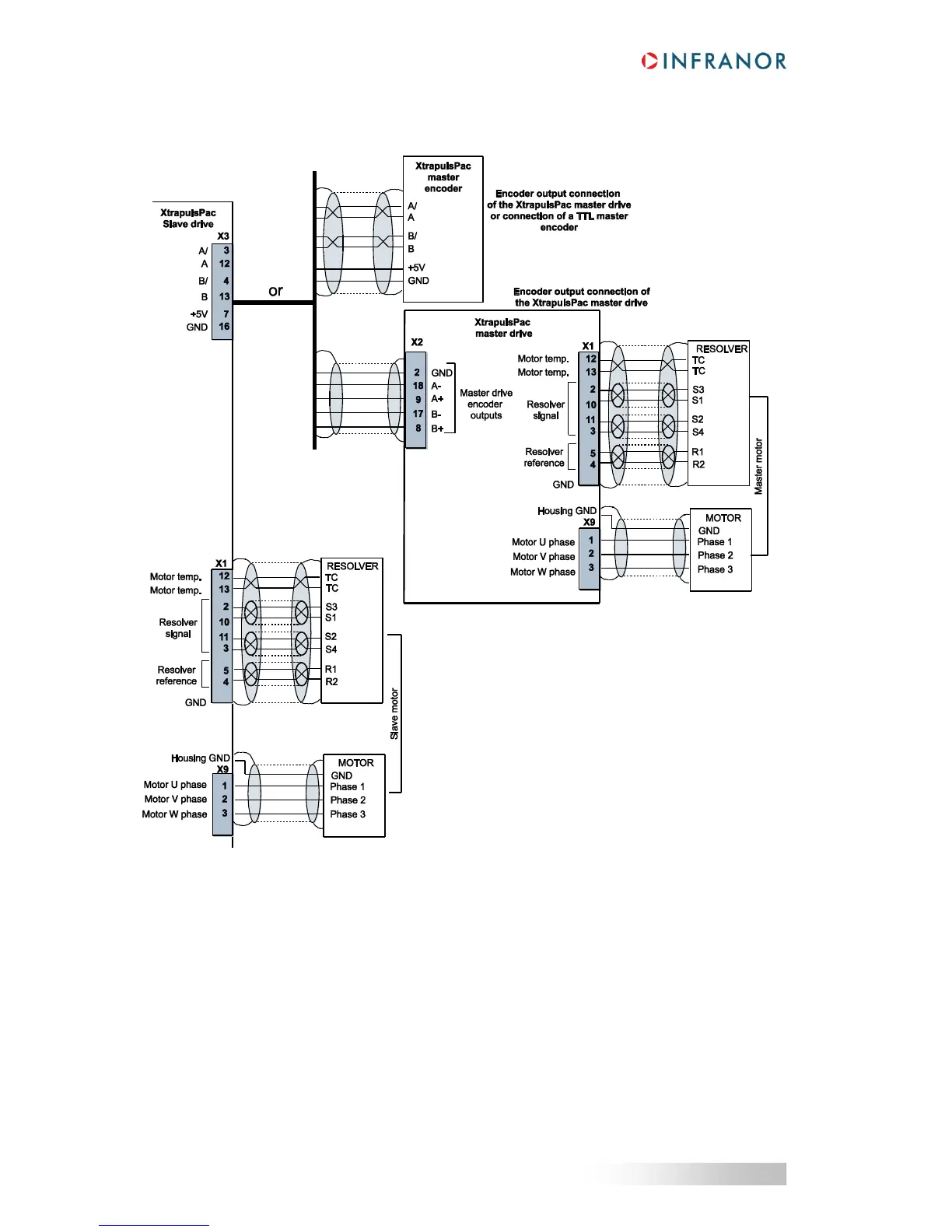

4.3.7 - Configuration of the XtrapulsPac drive with "Software gearing" function
In master/slave "software gearing" applications, the drive controls the slave motor shaft position with regard to the
input command sent by the master axis.
The position input command issued from the master axis can be interfaced either:
- with a master encoder
- or with the encoder output of an XtrapulsPac master drive.
