Infranor XtrapulsGem Installation Guide

9
Chapter 1 – General
XtrapulsPac Installation Guide

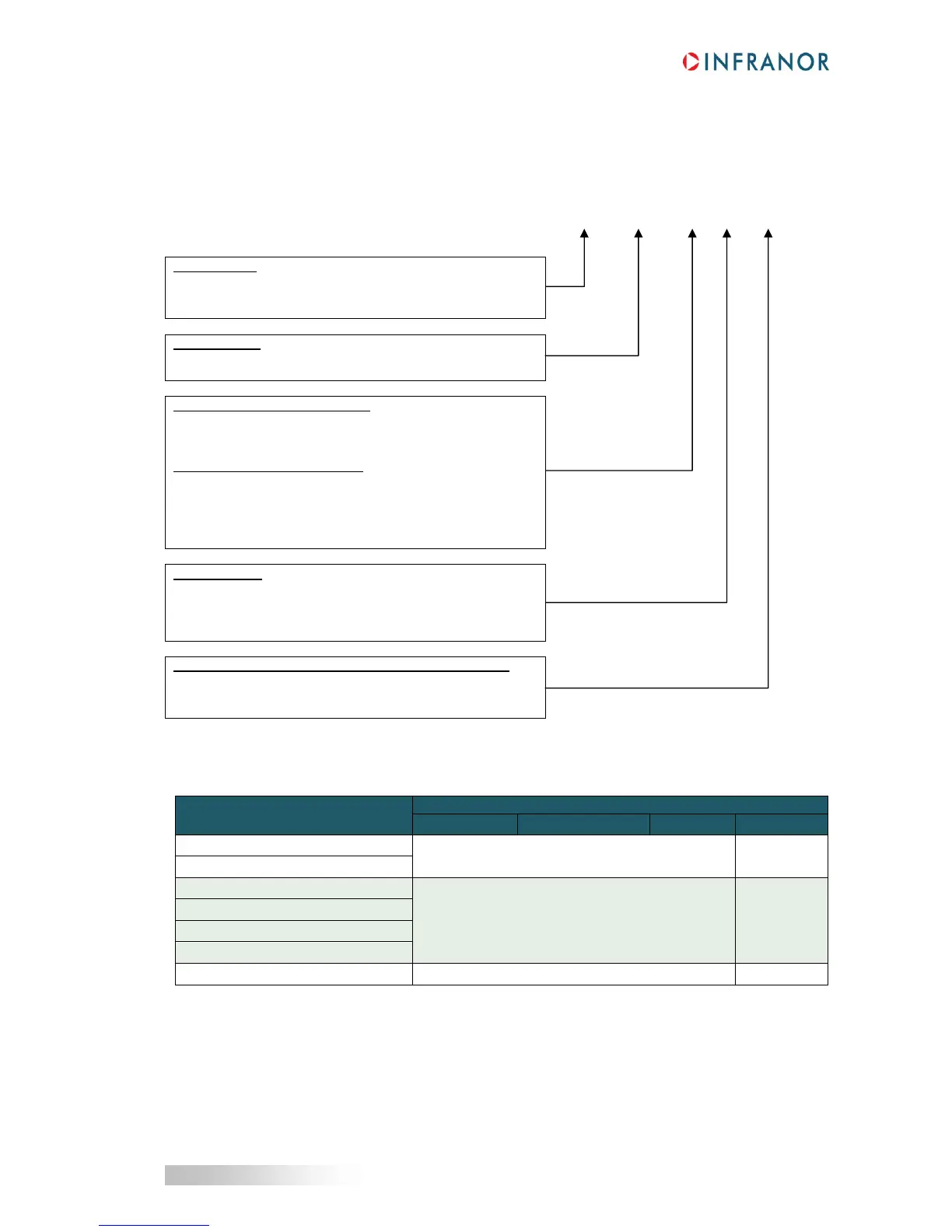

1.4 - ORDERING CODES
1.4.1 - Drives
1.4.1.1 - Ordering code of the drives
XtrapulsPac- xx – UUU / cc - xx - mm
Drive version
ak:
Analog interfaces and CANopen® fieldbus
et:
ed:
EtherCAT® fieldbus
EtherCAT® fieldbus + digital encoder interface
Voltage range
230:
400:
Voltage range 230 V
Voltage range 400 V
Current ratings for 230 V drives
05 = 5 Arms
11 = 11 Arms
17 = 17 Arms
Current rating for 400 V drives
08 = 08 Arms
20 = 20 Arms
45 = 45 Arms
100 = 100 Arms
200 = 200 Arms
Connector set
00:
Without connector set
FC:
With power + motor connector set
FL:
With command connector set
FCL:
With power + motor + command connector set
Mounting version (400 V range only, except for 200 A)
ST: Standard version
PT: Push-through version
CP: Cold plate version
1.4.1.2 - Selection of the drive version
Feedback sensor
Input command
Analog drive
Stepper emulation
CANopen®
EtherCAT®
Transmitter resolver
Pac-ak
Pac-et
SinCos tracks resolver
TTL encoder + HES
Pac-ak
Pac-et
Pac-ed
SinCos encoder + HES
Absolute single-turn SinCos encoder
Hiperface® with SinCos channels
Hiperface DSL® (single motor cable)
-
Pac-ed
