66
XtrapulsPac Installation Guide
Chapter 5 - Appendix
Chapter 5 – Appendix
5.1 - ADJUSTMENT TO VARIOUS RESOLVER TYPES

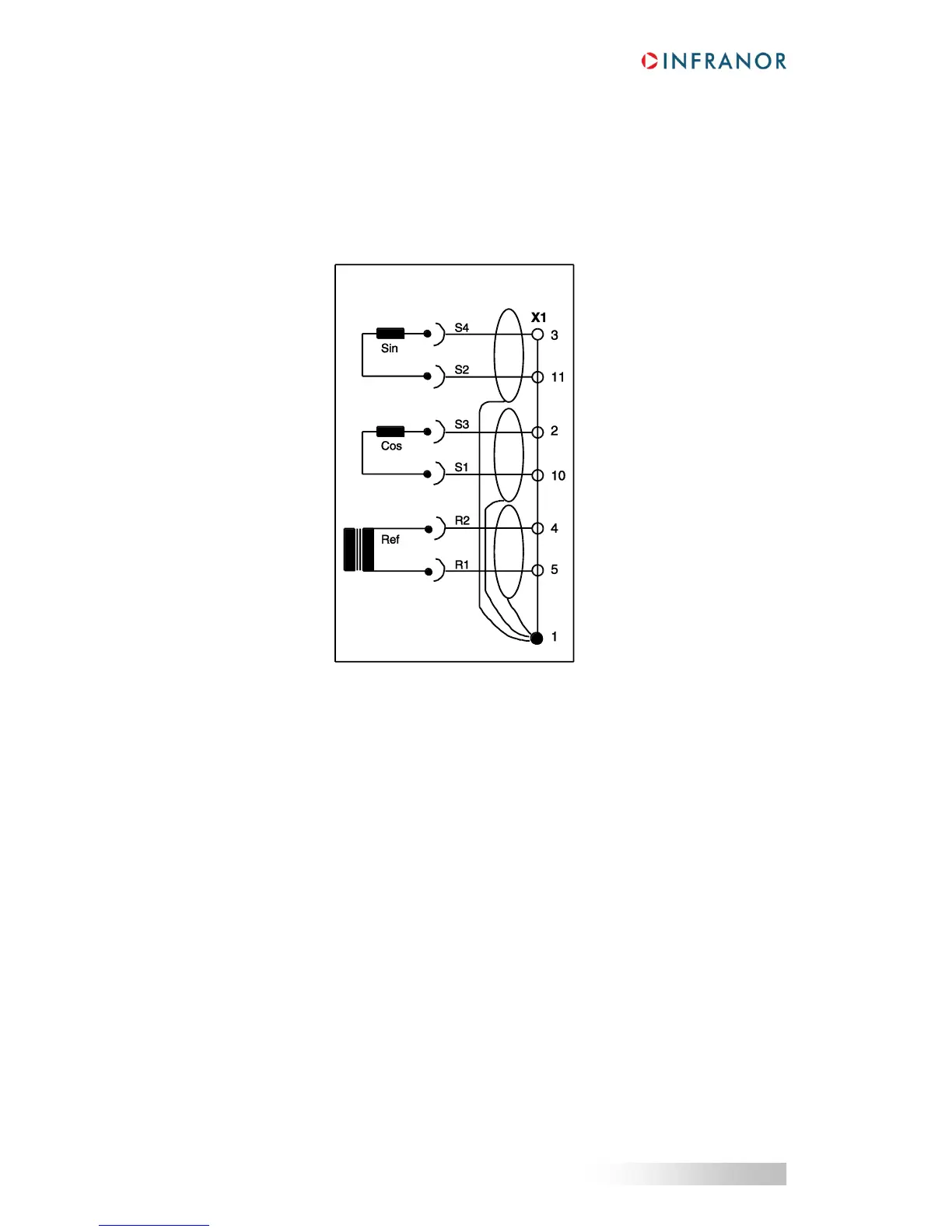

See following wiring diagram for the resolver connection to the X1 connector:
When using resolvers with transformation ratios out of the range 0.3 to 0.5, the adjustment must be factory set.
