To install a new Capsule Filter:
1. Hold the Capsule Filter when the arrow on the filter body pointing upwards.
2. Push the lower system water hose into lower filter’s quick black connector as
much as possible (Figure 11.12 right).
3. Push the upper system water hose into upper filter’s quick black connector as
much as possible (Figure 11.12 left).
4. Remove the water bottle from the compartment, pour out the distilled water
from the bottle according to “Draining Water” procedure and wash it with new
fresh water.
5. Fill 1 liter of distilled water into the bottle and return it to its compartment.
Perform “Filling Water” procedure as described above.
11.11 Air Filter
Systems marked by the Service Revisions listed in the table below are equipped with
new air filters. The Filters are intended to reduce dust and debris entering and
accumulating inside the System. Dust and debris may affect internal heat exchanges
and the performance of other components.
Dust filter are located on inside back over door (Figure 11-13).

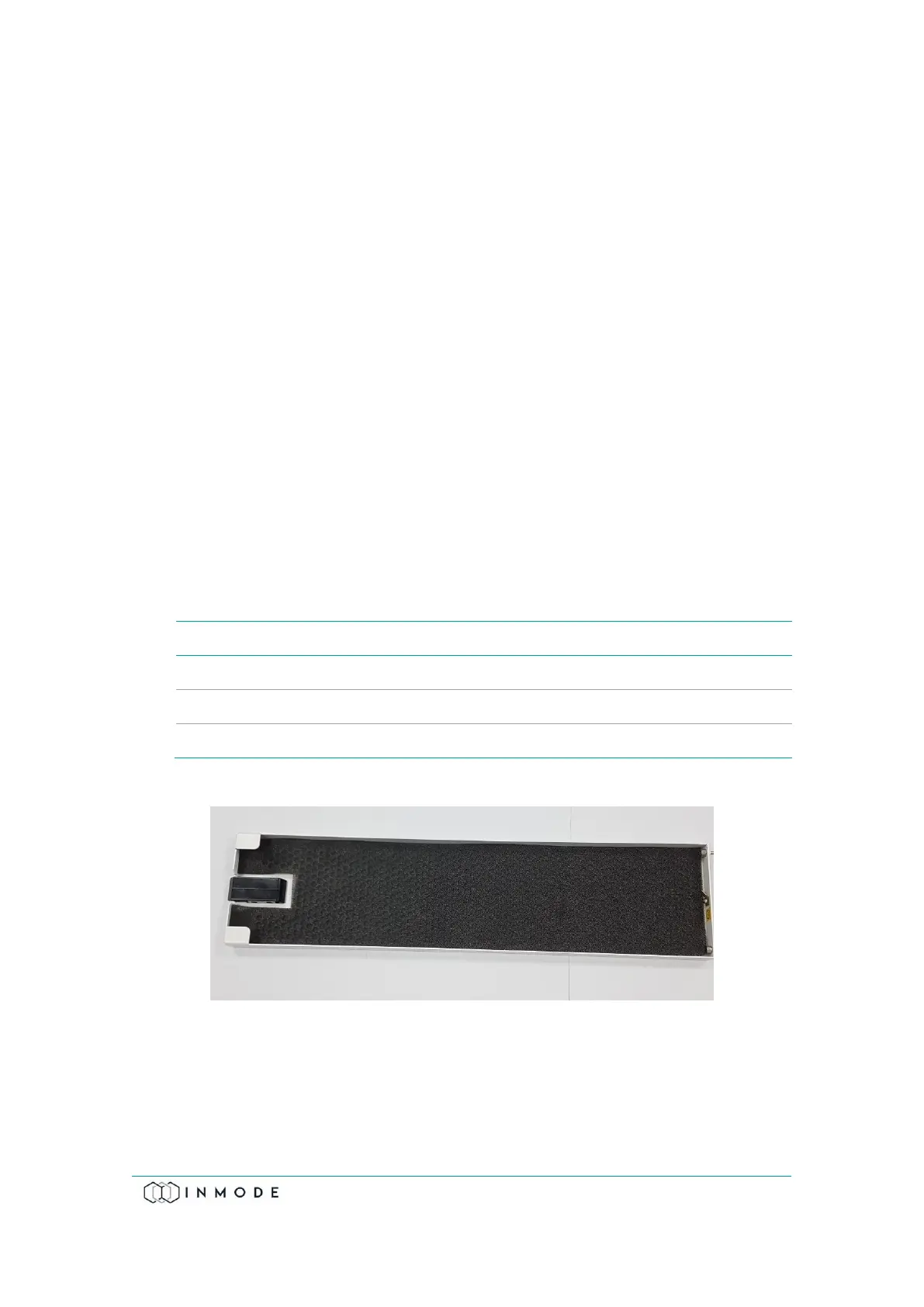

Figure 11-13: Back Cover Door with Dust Filter
Air Filter Maintenance
• Dust Filter must be to be cleaned once a week. In dusty environments or desert
regions, it should be checked daily.
• Replace the Dust Filter if damaged.
