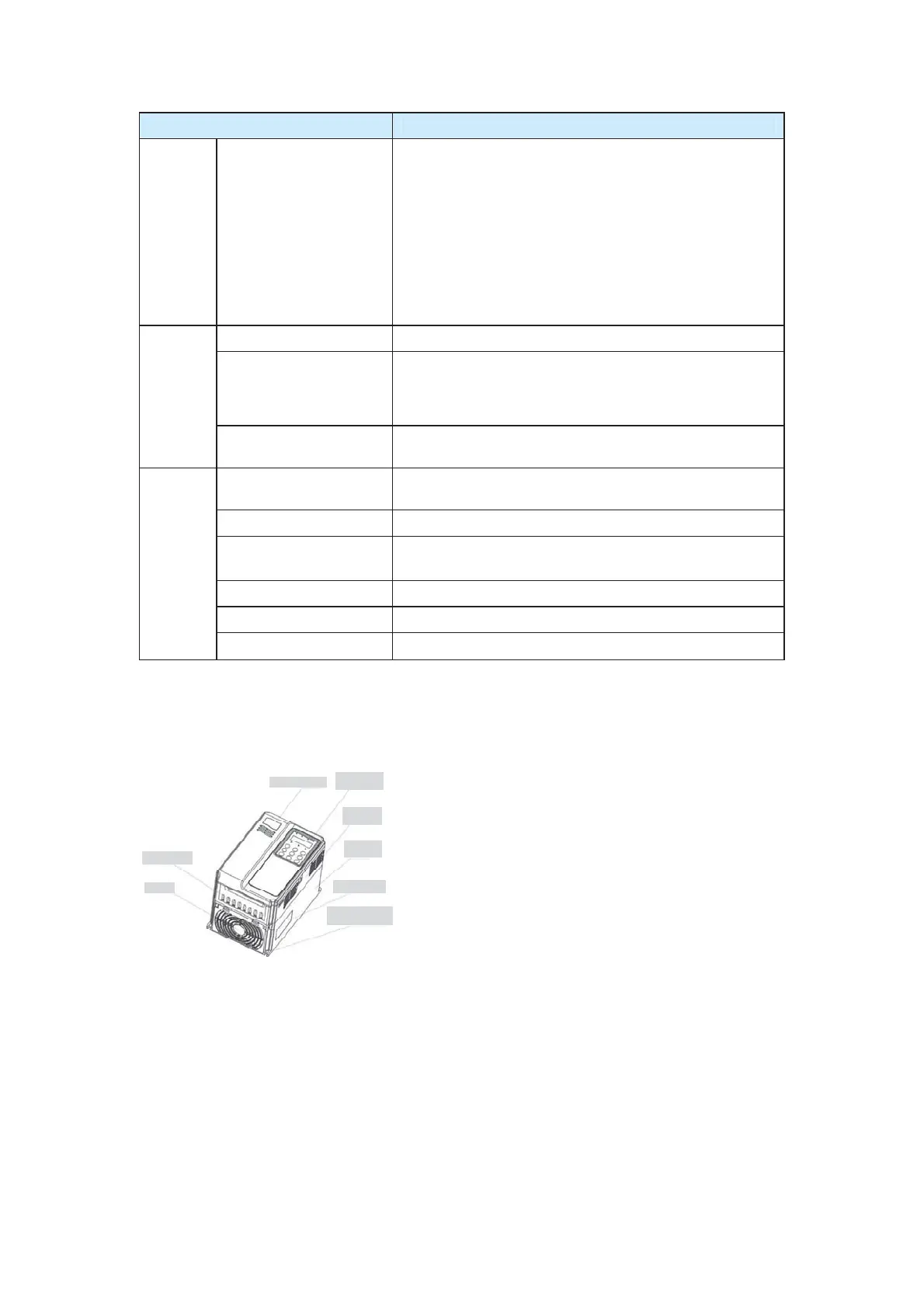

Item Specifications
frequency
z 1 digital output (DO) terminal
z 1 relay output terminal
z 1 analog output (AO) terminal that supports 0 mA or 4 mA
to 20 mA current output, or 0 V or 2 V to 10 V voltage
output, implementing output of the set frequency and
output frequency
Expanding capacity:
z 1 DO terminal
z 1 relay output terminal
z 1 AO terminal
LED display It can display parameters.
Protection functions
Motor short-circuit detection at power-on, I/O phase loss
protection, over-current protection, over-voltage protection,
under-voltage protection, overheat protection and overload
protection
Display
and
operation
Optional parts
LCD operator, multi-functional I/O extension card, braking
components, communication card, PG card
Installation location
Indoor, free from direct sunlight, dust, corrosive gas,
combustible gas, oil smoke, vapor, drip or salt
Altitude Below 1000 m
Ambient temperature
–10qC to +40qC (de-rated 2%/degree if the ambient
temperature is between 40qC and 50qC)
Humidity Lower than 95% RH, without condensation
Vibration 9.8 m/s
2
for below 20 Hz, and 5.9m/s
2
for above 20 Hz
Environ-
ment
Storage temperature
–20qC to +70qC
2.5 Physical Dimensions and Mounting Dimensions
2.5.1 Physical Dimensions
Figure 2- 3 CS500 physical appearance
I/O hole
Fan
Front cover
Operation
panel
Bottom
cover
Bottom
mounting hole
Middle
cover
Nameplate
Figure 2-4 physical dimensions & mounting dimensions of 0.7 kW to 15 kW
efesotomas
y
on.com
