1.7.1 CTB Board (MCTC-CTB)
The car top board (MCTC-CTB) is the elevator car control board of the NICE3000
new
. It includes 8 DI
terminals, 1 AI terminal, and 9 relay output terminals (standard: 7).

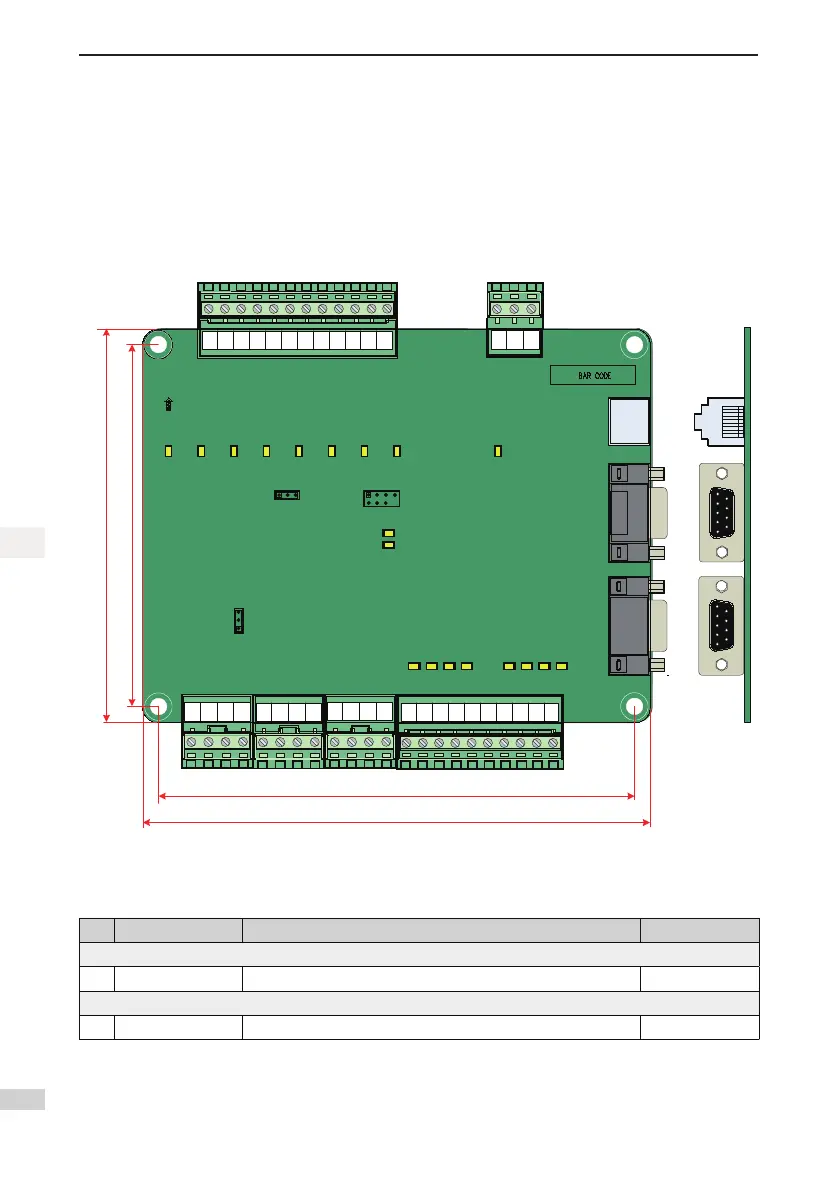

Figure 1-1 Appearance, structure and installation method of the CTB
MOD+
MOD-
24V
COM
X1
X2
X3
X4
P24
P25
X5
X6
X7
X8
D2
D1
DM
C3
C3M
C2
C1
CM
B3
B2
B1
BM
A
B
AM
MCTC-CTB-A(B)
CN
4
CN5
CN10
CN7
CN8
CN2
CN1
CN6
CN3
X1 X2 X3 X4
X5 X6 X7 X8
D2 D1 C3 C2
C1 B3 B2 B1
A1
CAN
RESET
ON OFF
ONIPARALLEL
J2
ON OFF
J1
125
115
152
162
Side
Front
J9
24V
CAN+
CAN-
COM
24V
Ai
M
1.7.2 Display Board (MCTC-HCB)
Table 1-6 Display board selection
No. Name Feature Dimensions (mm)
No hall call display
1 MCTC-HCB-B No hall call display 70*84*20
Dot-matrix display board
2 MCTC-HCB-F Red character, horizontal display 70*144*21
