2 System Commissioning
2
Chapter 2 System Commissioning
2.1 Use of the Commissioning Tools
The NICE3000
new
supports three commissioning tools, as listed in the following table.
Tool Function Description Remark
Onboard 3-button
keypad
It is used to enter the shaft commissioning commands and view
oor information.
Standard
LED operation panel
It is used to view and modify parameters related to elevator drive
and control.
Optional
Mobile phone
commissioning software
Install a WiFi module is connected to the MCB, and users can use
the mobile phone installed with the commissioning software to
commission the elevator, and upload and download parameters.
Optional
The following part describes the commonly used keypad and LED operation panel in detail.
2.1.1 Use of the Onboard Keypad
Buttons and Display
The onboard keypad consists of three 7-segment LEDs and three buttons. You can view information about
the controller and enter simple commands on the keypad.
CAUTION
The keypad is exposed, and pay attentions to the following points during use:
1. Wear insulated gloves when performing operations on the keypad to prevent electric
shock or damage to the controller components due to electrostatic discharge.
2. Do not use a metal or sharp tool to press the button to prevent the short circuit fault or
damage to the components on the MCB.

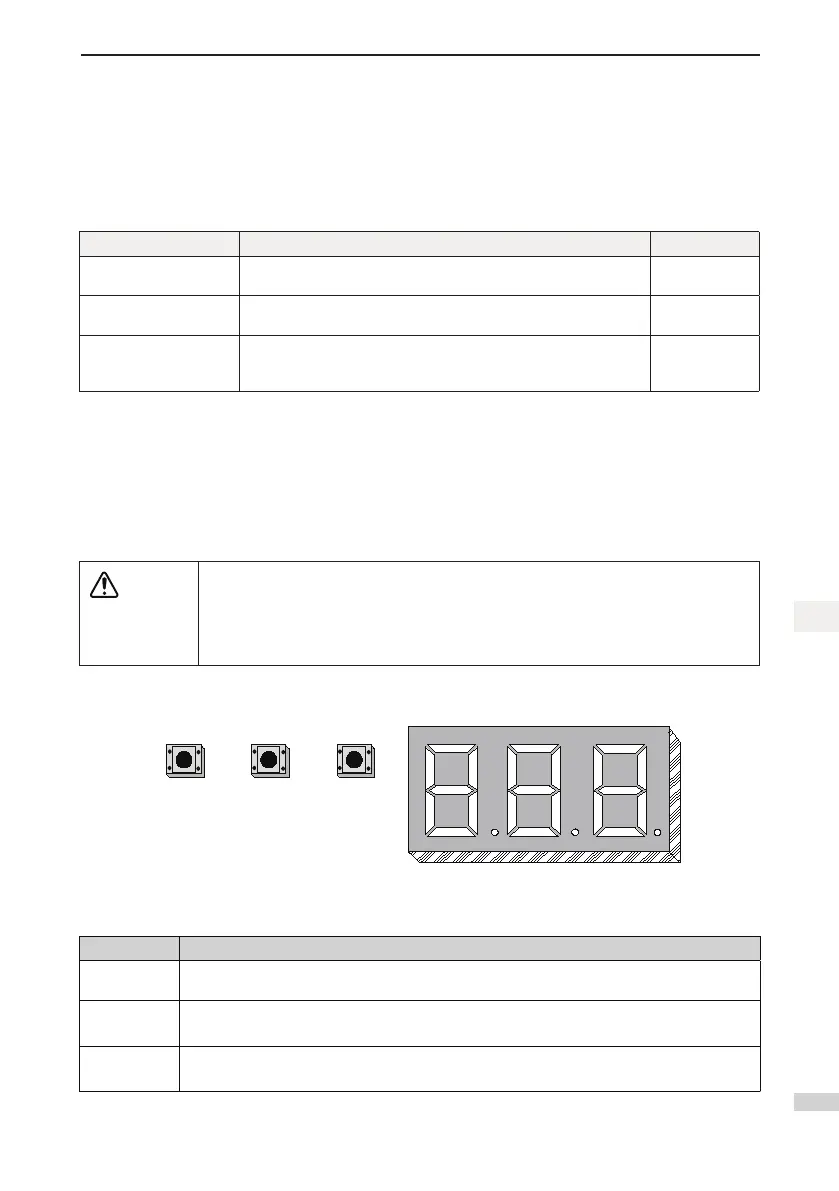

The following gure shows the appearance of the keypad.
Figure 2-1 Appearance of the keypad
PRG
UP
SET
A
B
C
DP
D
E
F
G
As shown in the preceding figure, the three buttons are PRG, UP, and SET. The functions of the three
buttons are described in the following table.
Button Function
PRG
Press this button in any state to exit the current operation and enter the function menu mode
(that is, display the current function group number).
UP
Press this button to increase the function group number or data.
In group F6 menu, this button is used to input the door open command.
SET
Enter the function menu edit mode; conrm and save the current operation.
In group F6 menu, this button is used to input the door close command.
