2 System Commissioning
2
2. The HCB communicates with the MCB via Modbus. All HCBs are connected in parallel and then
connected to the MCB.
HCB address setting
1. Set an address for each HCB. Otherwise, the HCB cannot be used.
2. The address of each HCB must be unique. HCBs with the same address cannot be used. For details
on how to set the address, see the description of the corresponding HCB in section 4.4.
3. Set the address based on the oor leveling plate No.
From the bottom oor, set the address of the HCB for the oor where the Nth leveling plate is located to N,
as shown in the following gure.

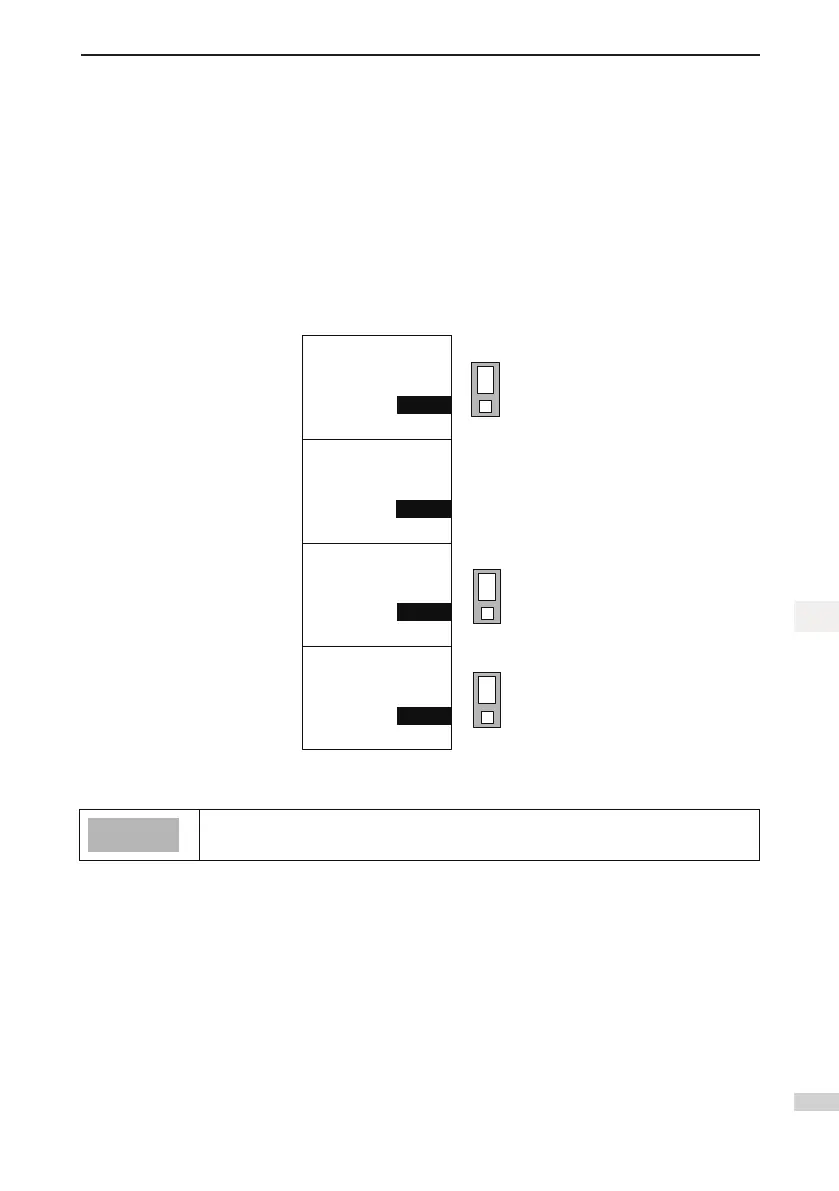

Figure 2-5 HCB installation and address setting
Leveling plate 1
Floor 1
Floor 2
Floor 3
Floor 4
Leveling plate 2
Leveling plate 3
Leveling plate 4
(Non-service floor,
HCB not installed)
1
2
4
HCB address: 1
HCB address: 2
HCB address: 4
After completing HCB installation and address setting, you can call the elevator by using the HCB to start
normal-speed running.
Note
When the HCB is installed inside the car, its address must be set to 0.
2.2.6 Riding Comfort Adjustment
The riding comfort is an important factor of the elevator’s overall performance. Improper installation of
mechanical parts and improper parameter settings will cause discomfort. Enhancing the riding comfort
mainly involves adjustment of system control and the elevator’s mechanical construction.
