1 Product Information
1
1.7.4 Community Monitoring Board (MCTC-MIB-A)
The MCTC-MIB-A is used to query information such as elevator running state, current oor, and faults, and
send the information to the monitoring room via communication. Users can monitor and control the elevator
by using the PC installed with the monitoring software in the monitoring room.
The MCTC-MIB-A provides an RS485 port, an RS232 port, corresponding signal indicators and RJ45
interface for connecting operation panel. The RS232 port is connected to the controller or PC host
computer, according to the parameter setting. The RS485 port is connected to the RS485 port of other
MCTC-MIB-A.

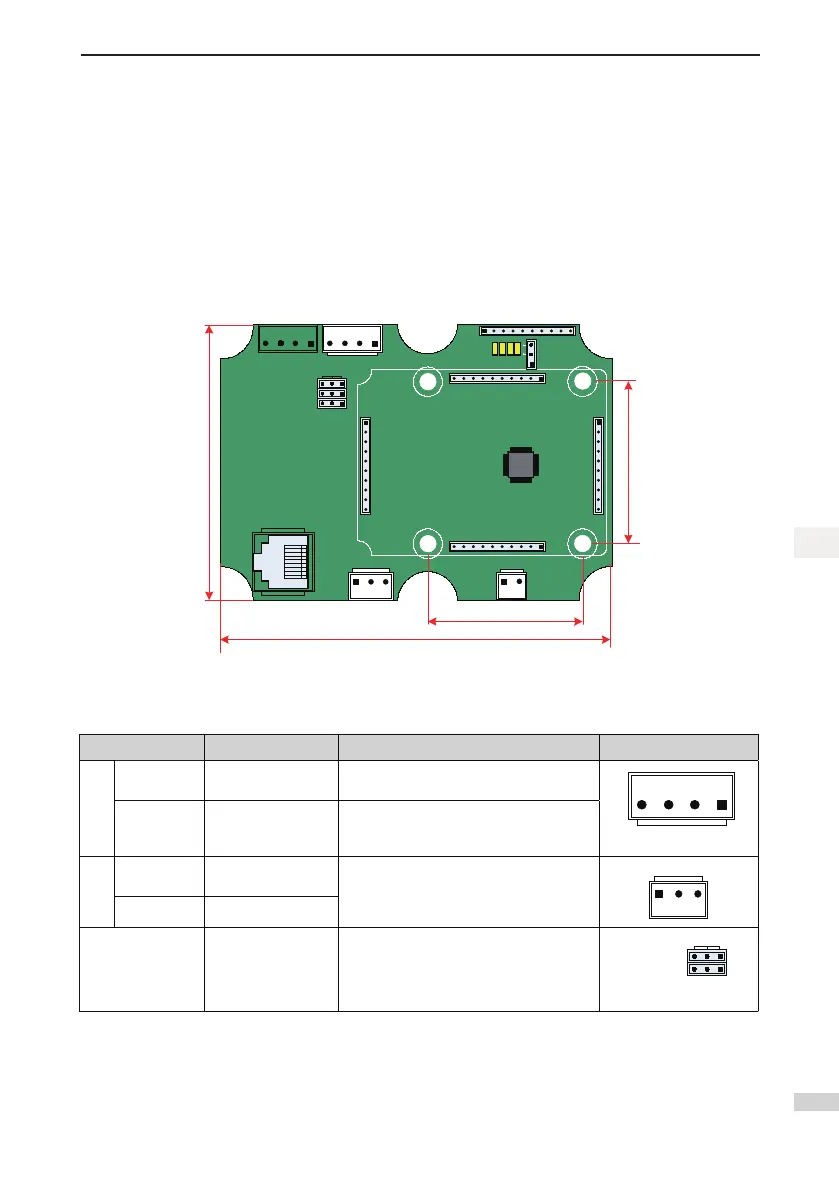

The following gure shows the appearance and dimensions of the MCTC-MIB-A
Figure 1-3 Appearance and dimensions of MCTC-MIB-A
72
104
42
42
MCTC-MIB-A
Unit: mm
COM CAN- CAN+ 24V
COM MOD- MOD+ 24V
J3 J12
J15
OFF ON
J14
J6
J7
J5
J18
OK S1 S2 S3
ON
J4
J8
J10
J11
J13
GND RX TX
RX+ RX-
The following table describes the input and output terminals of MCTC-MIB-A.
Table 1-8 Input and output terminals of MCTC-MIB-A
Mark Terminal Name Function Description Terminal Arrangement
J12
+24V/COM
External 24 VDC
power supply
Connect to 24 V power supply.
COM MOD- MOD+ 24V
MOD+/MOD-
RS485
communication port
Connect to the community monitoring
board in the monitoring room via RS485
communication
J11
TX/RX
RS232
communication port
Used to disable the burning program,
communicate with the host computer, and
communicate with the controller.
GND RX TX
GND GND terminal
J14/J15 Termination resistor
The board in the monitoring room is
connected to position 1, and that in the
equipment room is connected to position 2
(by default).
J15
J14
OFF ON
