- 54 -
2 System Commissioning
2

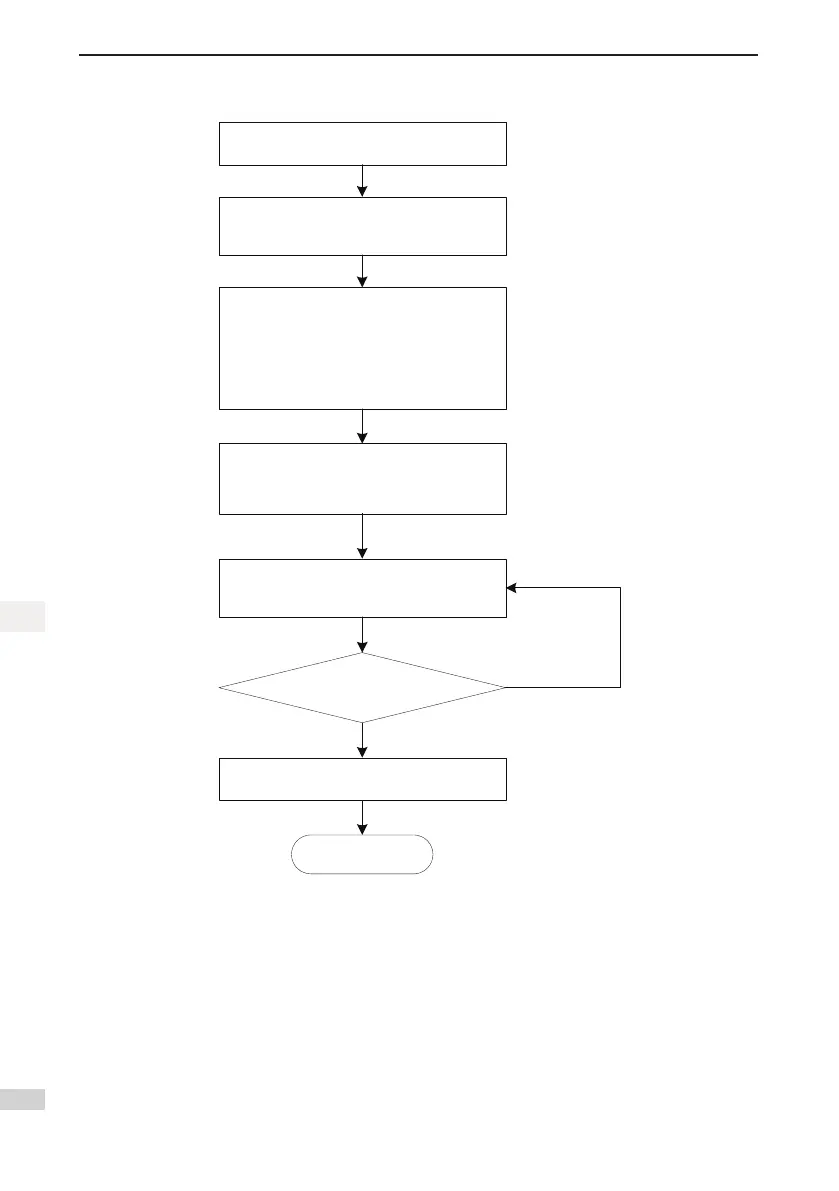

Figure 2-9 Single-oor leveling accuracy adjustment
No
Set Fr-00 to 1
Go into the car after the elevator automatically
runs to the top floor
Adjust the leveling data based on actual error:
Press the top floor button once, and the stop
position is changed 1 mm upward
Pr
ess the bottom floor button once, and the
stop position is changed 1 mm downward
Press the top floor button and bottom floor
button in the car at the same time to save the
adjustment result
Complete adjusting
all floors?
Restore Fr-00 to 0
Run the car to the next floor, and make
adjustment
Yes
End
More descriptions of the above adjustment steps are as follows:
1) Ensure that shaft auto-tuning is completed successfully, and the elevator runs properly at
normal speed.
2) After you set Fr-00 to 1, the elevator shields hall calls, automatically runs to the top oor, and
keeps the door open after arrival.
3) During adjustment, the car display board displays “00” or the value after adjustment.
Positive value: up arrow + value, negative value: down arrow + value, adjustment range:
±30 mm
4) After you save the adjustment result, the car display board displays the present oor.
5) Note that if a certain oor need not adjustment, you also need to save the data once. Otherwise,
you cannot register the car call.
