Insignia NS-32E740A12 User Manual

11
Insignia 32" LED-LCD HDTV, 720p
www.insigniaproducts.com

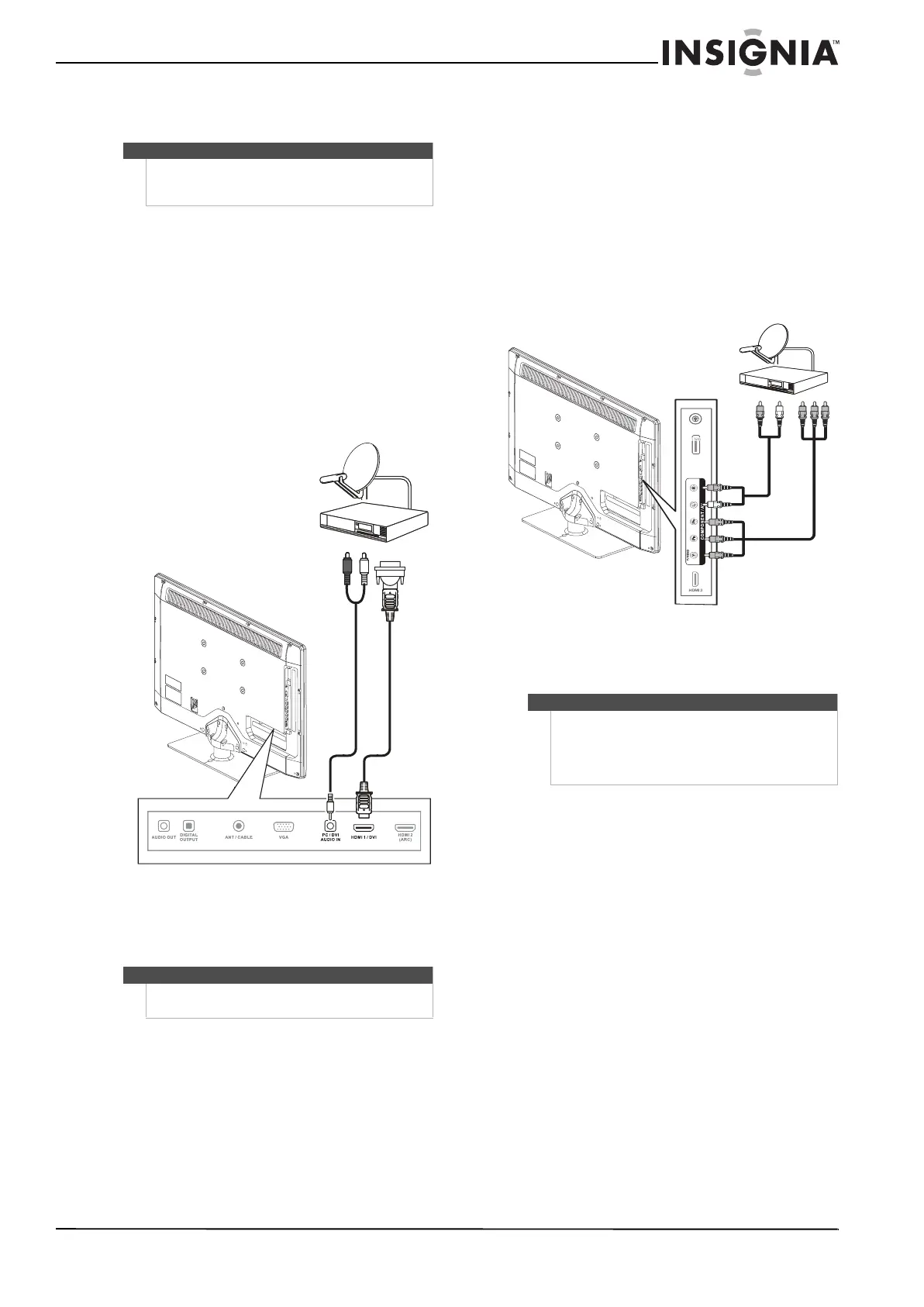

Using DVI (same as HDMI but requires a sound
connection)
To connect a cable or satellite box using DVI:
1 Make sure that your TV’s power cord is
unplugged, and all connected equipment is
turned off.
2 Connect the incoming cable from the cable wall
jack to the cable-in jack on the cable box.
3 Connect an HDMI-DVI adapter (not included) to
one end of an HDMI cable (not included).
4 Connect the HDMI-DVI adapter to the HDMI 1
jack on the back of your TV and to the DVI OUT
jack on the cable or satellite box.
5 Connect a 3.5 mm audio cable (not included) to
the PC/DVI AUDIO IN jack on the back of your
TV and to the AUDIO OUT jack on the cable or
satellite box.
6 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the cable or
satellite box.
7 Go through the setup wizard on page 21.
Using component video (better)
To connect a cable or satellite box using
component video:
1 Make sure that your TV’s power cord is
unplugged, and all connected equipment is
turned off.
2 Connect the incoming cable from the cable wall
jack to the cable-in jack on the cable box.
3 Connect a component video cable (included) to
the Y-VIDEO, P
B, and PR jacks on the side of
your TV and the component video out jacks on
the cable or satellite box.
4 Connect an audio cable (included) to the L and
R audio jacks on the side of your TV and to the
audio out jack on the cable or satellite TV box.
5 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the cable or
satellite box.
6 Go through the setup wizard on page 21.
Note
A DVI device must be connected to the HDMI 1 jack.
If you connect a DVI device to another HDMI jack,
you will not hear audio.
Note
When you connect the audio using the PC/DVI
AUDIO IN jack, the audio output is analog.
Cable or satellite box
Back of TV
HDMI cable with HDMI-DVI adapter
3.5 mm audio cable
Note
When you connect the audio using the L and R audio
jacks, the audio output is analog.
You can connect the video to the component video
jacks and connect the audio to the digital audio jack
to get digital audio output.
USB
USB
USB
S
Side of TV
Component video cable
Audio cable
Cable or satellite box

Insignia NS-32E740A12 Specifications

General

Response time	9 ms
Display diagonal	31 \
Display brightness	350 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Supported video modes	1080p
Contrast ratio (dynamic)	5000:1
Contrast ratio (typical)	1200:1
Supported graphics resolutions	1366 x 768
3D	No
Backlight	-
HDMI ports quantity	3
DVI-D ports quantity	1
DVI-I ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Product color	Black
Panel mounting interface	200 x 100 mm
RMS rated power	- W
Power consumption (standby)	1 W
Power consumption (typical)	64 W
Remote control type	Standard

Weight and Dimensions

Height (with stand)	533.4000 mm
Weight (with stand)	9888.3137 g
Depth (without stand)	203.2000 mm
Width (without stand)	736.6000 mm
Height (without stand)	457.2000 mm
Weight (without stand)	8164.6627 g
