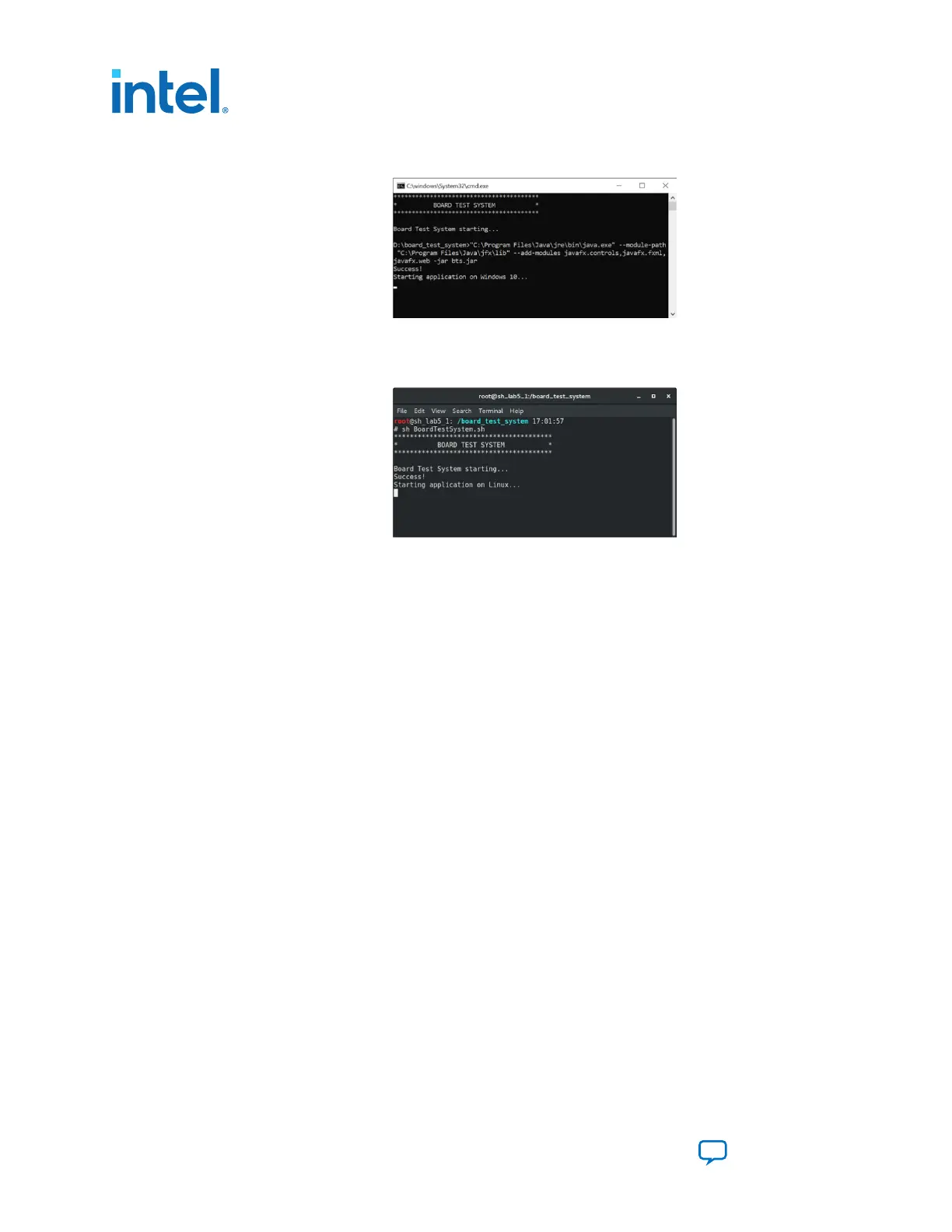

Figure 4. Windows Console
2. On Linux system, you need to run the shell script with root privilege.
Figure 5. Linux Console
Note: The .bat or shell script checks the Java environment settings, copies necessary files,
and gives some prompts if the environment is not set up correctly.
The GUI displays the application tab corresponding to the design running in the FPGA.
If the design loaded in the FPGA is not supported, it prompts a message to configure
your board with a valid BTS design. Refer to The Configure Menu.
4.2. Test the Functionality of the Development Kit
This section describes each control in the BTS.
4.2.1. The Bottom Info Bar
The bottom information bar shows the status of the system connection, the Intel
Quartus Prime version and the JTAG clock.
• System Connected/Disconnected: Shows if the board is connected to the
system. The green sign turns gray if the board becomes disconnected.
• Intel Quartus Prime Version: Displays the current Intel Quartus Prime version
installed and active on your system. The text turns red if your version is older
than the required version. Change the QUARTUS_ROOTDIR environment variable
to the required version.
• JTAG: Displays the JTAG clock frequency.
4.2.2. The Configure Menu
Use the Configure Menu to select the design you want to use. Each design example
tests different functionality that corresponds to one or more application tabs.
