A. Development Kit Components
A.1. Board Overview and Components
This section describes all the components on the development board. A complete set
of schematics, a physical layout database, and GERBER files for the development
board reside in the development kit documents directory.
A.1.1. Board Overview

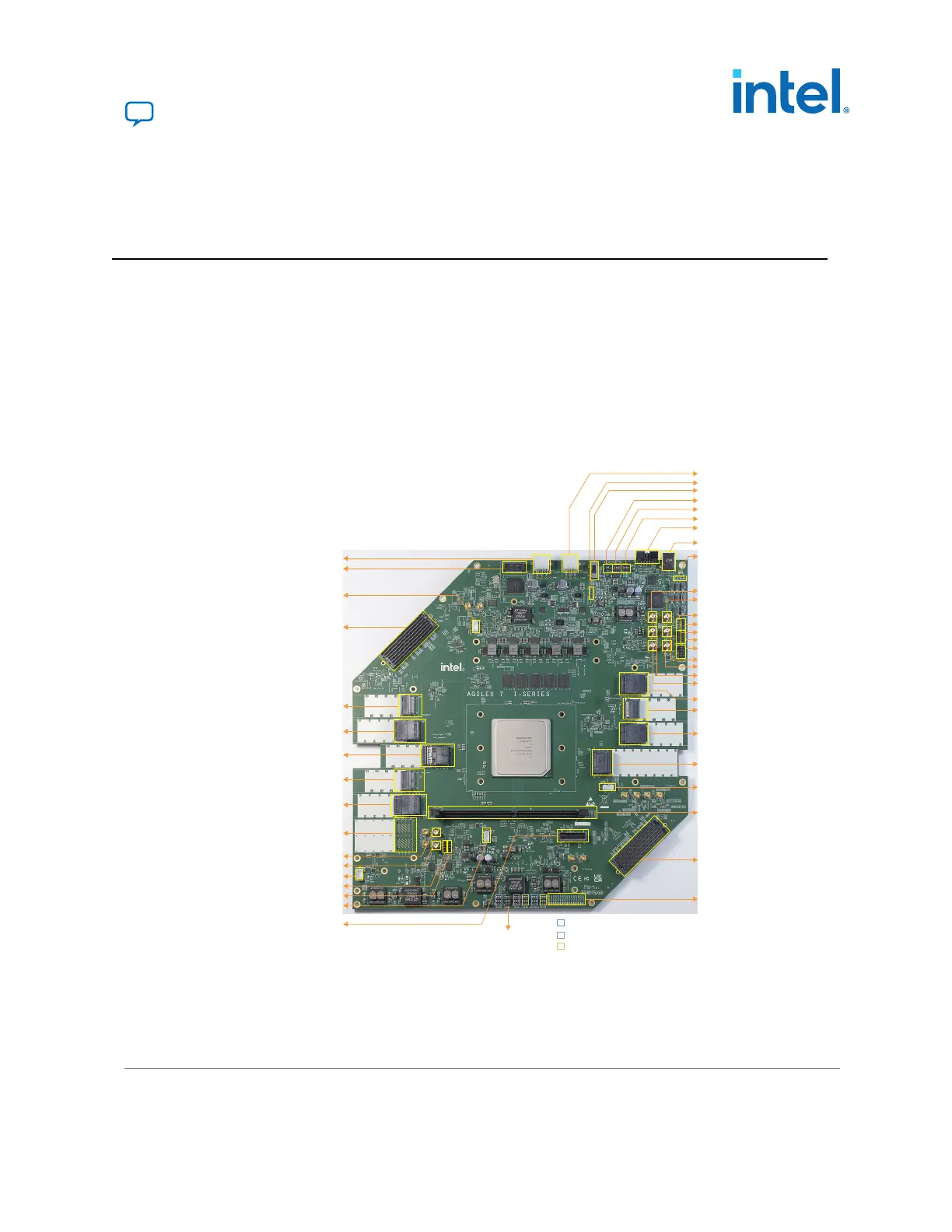

Figure 28. Intel Agilex 7 FPGA I-Series Transceiver (6 × F-Tile) Development Kit (Top
View)
J30- 12V AUX1 CONN
J3- SDM CONN
J38- FAN0 CONN[CORE FET FAN]
J7- FMCA CONN
J57- QSFP0 CONN
J27- QSFP-DD0 CONN
J22- QSFP-DD800 CONN
J58- QSFP1 CONN
J48- QSFP-DD1 CONN
J77- SFP CONN
J6- SI5395-2 IN1N CONN
J4- SI5395-2 IN1P CONN
J34- FAN1 CONN[QSFP LEFT FAN]
J79- TEMP SENSOR I2C CONN
J149- CURRENT SENSOR I2C CONN
J43- FAN2 CONN[FPGA FAN]
J37- MCIO CONN
S9- MODE SEL SW
J55- 12V AUX1 CONN
J154-12V HOTSWAP I2C CONN
S7- BOARD POWER ON/OFF SW
S21- PMBUS_I2C SW
S19- JTAG SEL SW
S20- MSTR SW
J11- JTAG CONN
J10- USB2.0 CONN
J56- CY7C68013A I2C CONN
J14- 1PPS OUT CONN
J16- 1PPS IN CONN
J140-CLOCK I2C CONN
J41- PMBUS CONN
J21- ToD CONN
J42- CLOCK I2C CONN
J31- SI5518 SPI CONN
J25- 10MHz IN CONN
J17- 10MHz OUT CONN
J8- SI5395-1 IN1P CONN
J12- SI5395-1 IN1N CONN
J69- QSFP-DD2 CONN
J66- QSFP2 CONN
J67- QSFP-DD3 CONN
J45- OSFP CONN
J44- FAN3 CONN[QSFP RIGHT FAN]
J5- DIMM CONN
J9- FMCB CONN
LEDs
S22- MUX_DIP_SW
S10,S15- SYS_SW
S6,S1- USER_SW
776646 | 2023.05.31
