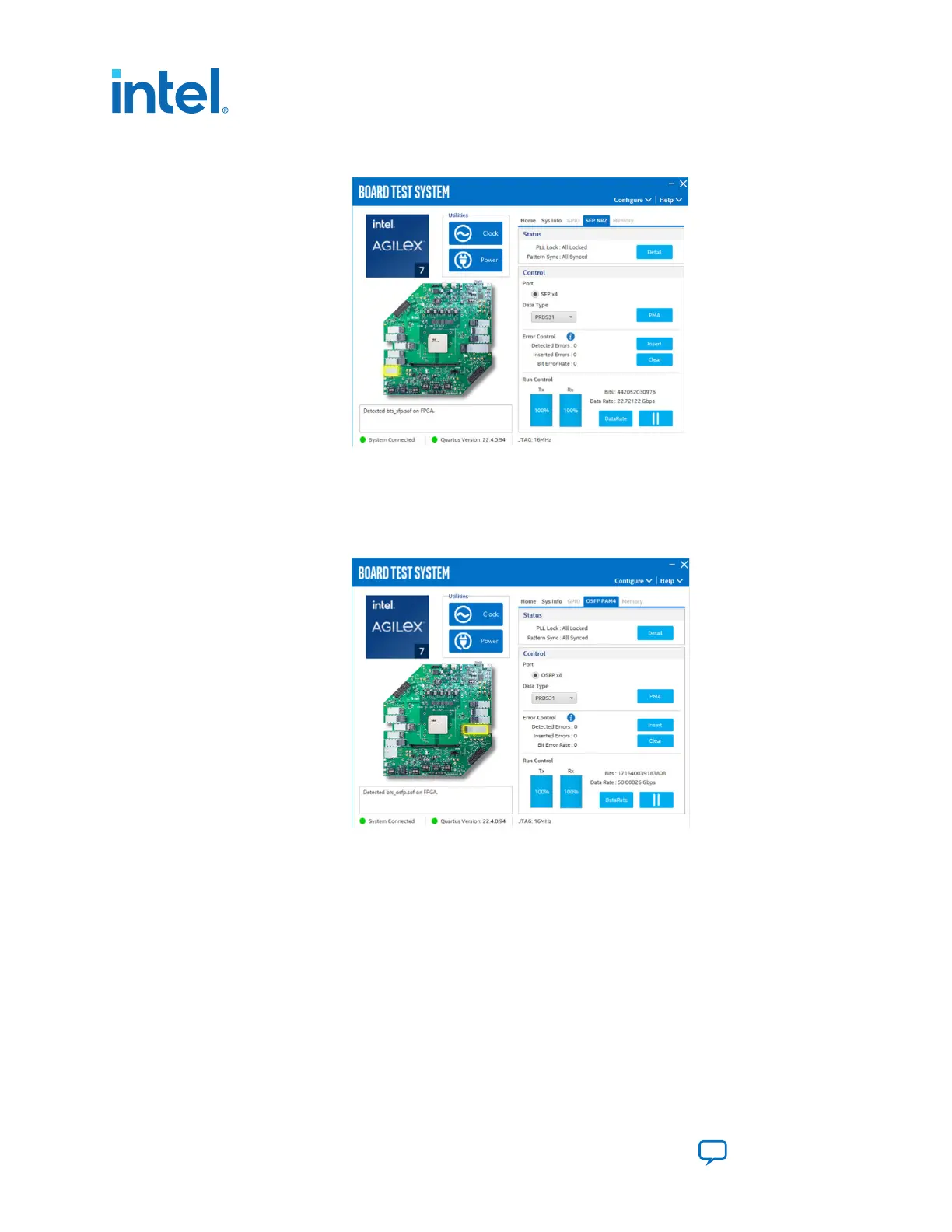

Figure 18. The SFP Tab
4.2.5.7. The OSFP Tab
Similar control functions with the QSFPDD NRZ tab.
Figure 19. The OSFP Tab
4.2.6. The Memory Tab
This tab allows you to read and write DDR4-COMP and DDR4-RDIMM memory on your
board. Download the design through BTS Configure.
4. Board Test System
776646 | 2023.05.31
Intel Agilex
®
7 FPGA I-Series Transceiver (6 × F-Tile) Development Kit User
Guide
Send Feedback
22
