4.2.5.4. The QSFPDD400 PAM4 Tab
Similar control functions with the QSFPDD NRZ tab except for the port selection.

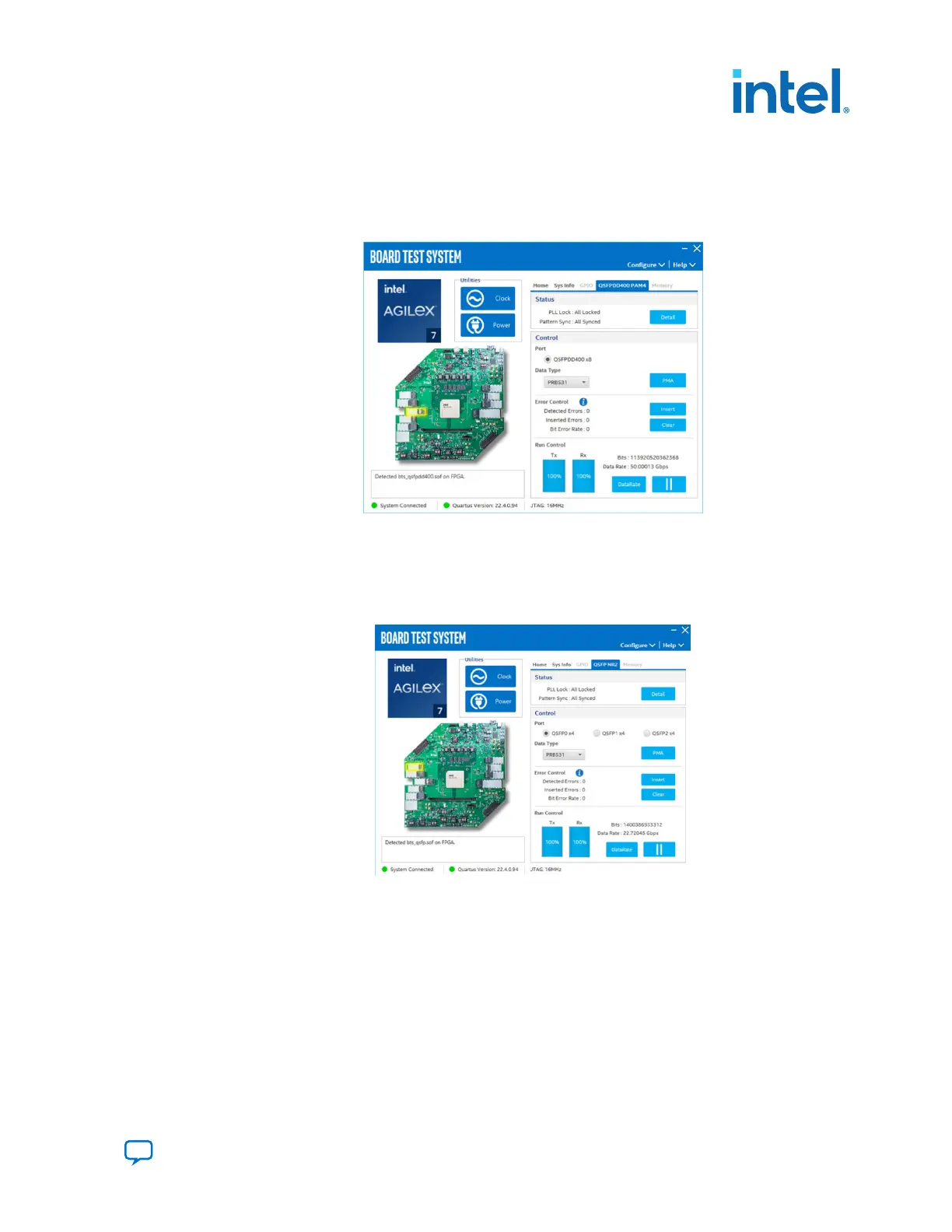

Figure 16. The QSFPDD400 PAM4 Tab
4.2.5.5. The QSFP NRZ Tab
Similar control functions with the QSFPDD NRZ tab except for the port selection.
Figure 17. The QSFP NRZ Tab
4.2.5.6. The SFP Tab
Similar control functions with the QSFPDD NRZ tab.
