4. The load lines specify voltage limits at the die measured at the VCC_DIE_SENSE and VSS_DIE_SENSE
lands and the VCC_DIE_SENSE2 and VSS_DIE_SENSE2 lands. Voltage regulation feedback for voltage
regulator circuits must also be taken from processor VCC_DIE_SENSE and VSS_DIE_SENSE lands and
VCC_DIE_SENSE2 and VSS_DIE_SENSE2 lands. Refer to the Voltage Regulator Module (VRM) and
Enterprise Voltage Regulator Down (EVRD) 11.0 Design Guidelines for socket load line guidelines and VR
implementation. Please refer to the appropriate platform design guide for details on VR implementation.
Notes:
1. The V
CC_MIN
and V
CC_MAX
loadlines represent static and transient limits. Please see Section 2.13.2 for VCC
overshoot specifications.
2. Refer to Table 2-12 for processor VID information.
3. Refer to Table 2-13 for V
CC
Static and Transient Tolerance
4. The load lines specify voltage limits at the die measured at the VCC_DIE_SENSE and VSS_DIE_SENSE
lands and the VCC_DIE_SENSE2 and VSS_DIE_SENSE2 lands. Voltage regulation feedback for voltage
regulator circuits must also be taken from processor VCC_DIE_SENSE and VSS_DIE_SENSE lands and
VCC_DIE_SENSE2 and VSS_DIE_SENSE2 lands. Refer to the Voltage Regulator Module (VRM) and
Enterprise Voltage Regulator Down (EVRD) 11.0 Design Guidelines for socket load line guidelines and VR
implementation. Please refer to the appropriate platform design guide for details on VR implementation.

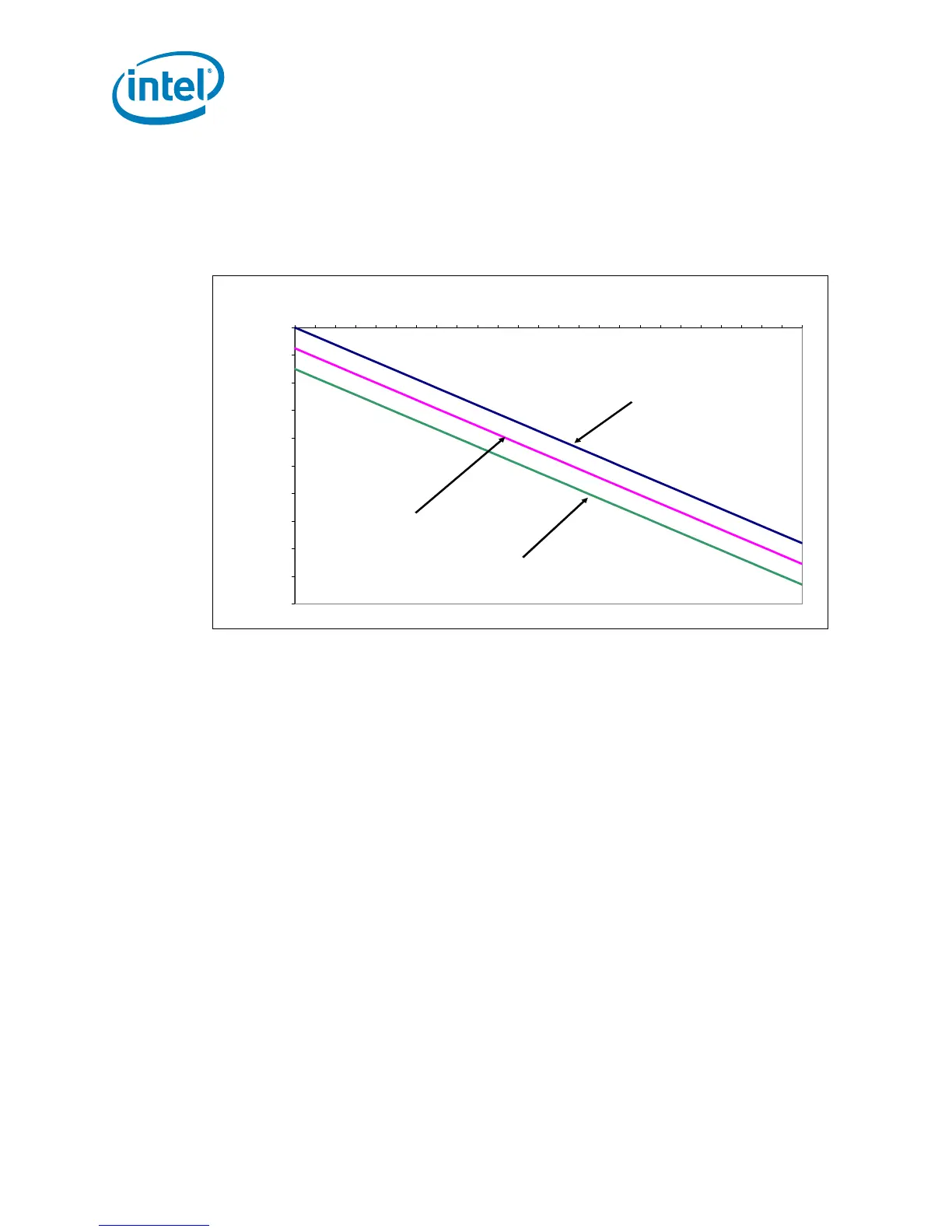

Figure 2-8. Quad-Core Intel® Xeon® Processor X5300 Series VCC Static and Transient
Tolerance Load Lines
VID - 0.000
VID - 0.020
VID - 0.040
VID - 0.060
VID - 0.080
VID - 0.100
VID - 0.120
VID - 0.140
VID - 0.160
VID - 0.180
VID - 0.200
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125
Icc [A]
Vcc [V]
V
CC
Maximum
V
CC
Typical
V
CC
Minimum
