Quad-Core Intel® Xeon® Processor 5300 Series Datasheet 27
Electrical Specifications
Note:
1. V
TT
supplies the PECI interface. PECI behavior does not affect V
TT
min/max specifications.
2. The leakage specification applies to powered devices on the PECI bus.
3. One node is counted for each client and one node for the system host. Extended trace lengths might appear
as additional nodes.
2.10.2 Input Device Hysteresis
The input buffers in both client and host models must use a Schmitt-triggered input
design for improved noise immunity. Use Figure 2-1 as a guide for input buffer design.
2.11 Mixing Processors
Intel supports and validates dual processor configurations only in which both
processors operate with the same FSB frequency, core frequency, number of cores, and
have the same internal cache sizes. Mixing components operating at different internal
clock frequencies is not supported and will not be validated by Intel. Combining
processors from different power segments is also not supported.
V
p
Positive-edge threshold
voltage
0.550 * V
TT
0.725 * V
TT
V
I
source
High level output source
(V
OH
= 0.75 * V
TT
)
-6.0 N/A mA
I
sink
Low level output sink
(V
OL
= 0.25 * V
TT
)
0.5 1.0 mA
I
leak+
High impedance state
leakage to V
TT
(V
leak
= V
OL
)
N/A 50 µA 2
I
leak-
High impedance leakage
to GND
(V
leak
= V
OH
)
N/A 10 µA 2
C
bus
Bus capacitance per node N/A 10 pF 3
V
noise
Signal noise immunity
above 300 MHz
0.1 * V
TT
N/A V
p-p
Table 2-10. PECI DC Electrical Limits (Sheet 2 of 2)
Symbol Definition and Conditions Min Max Units Notes
1

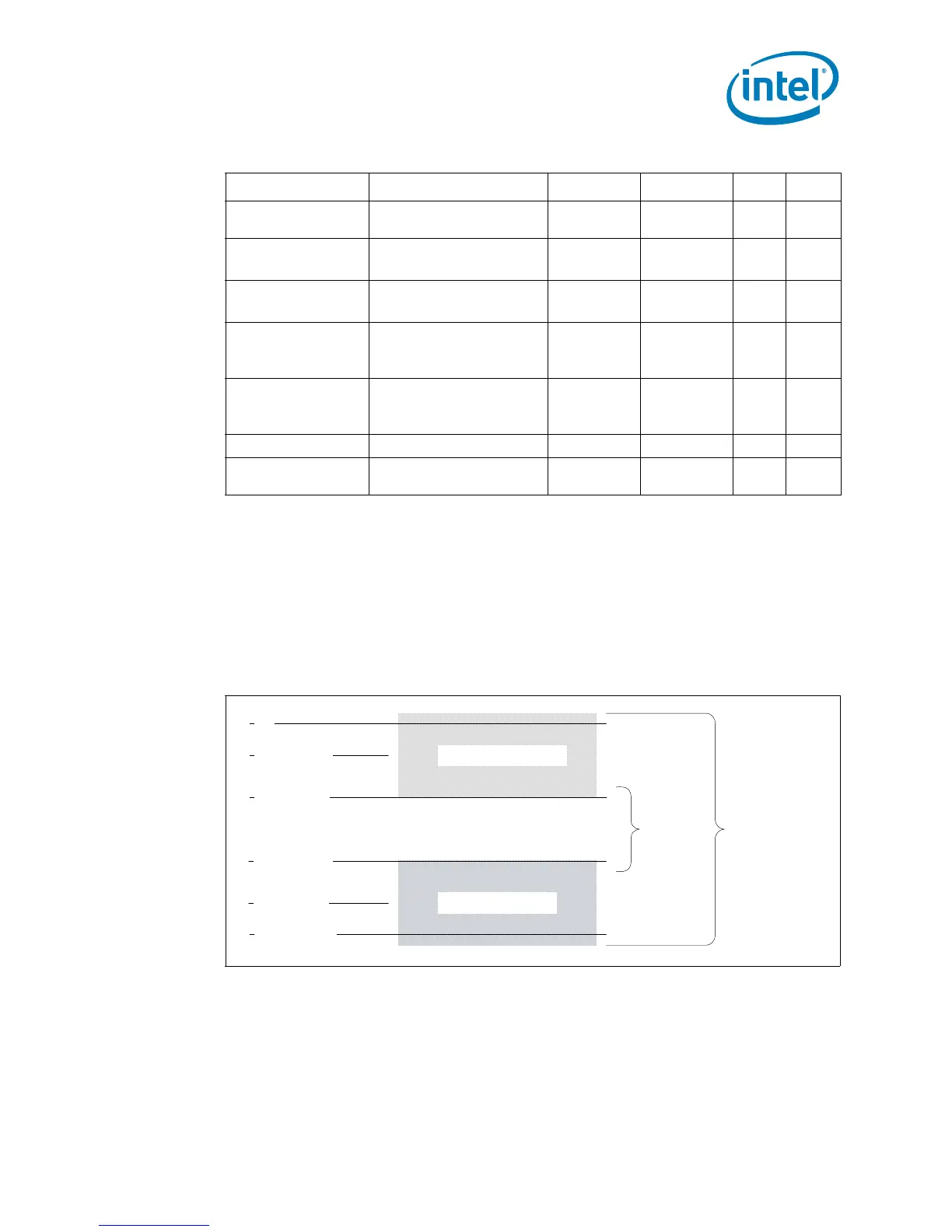

Figure 2-1. Input Device Hysteresis
Minimum V
P
Maximum V
P
Minimum V
N
Maximum V
N
PECI High Range
PECI Low Range
Valid Input
Signal Range
Minimum
Hysteresis
V
TT
PECI Ground

Intel Quad-Core Xeon Specifications

General

Number of Cores	4
Threads per Core	1
Virtualization Technology	Intel VT-x
Instruction Set	x86-64
Instruction Set Extensions	SSE4.2
