Thermal Specifications
90 Quad-Core Intel® Xeon® Processor 5300 Series Datasheet
Notes:
1. Please refer to Table 6-2 for discrete points that constitute the thermal profile.
2. Refer to the Quad-Core Intel® Xeon® Processor 5300 Series Thermal/Mechanical Design Guidelines for
system and environmental implementation details.

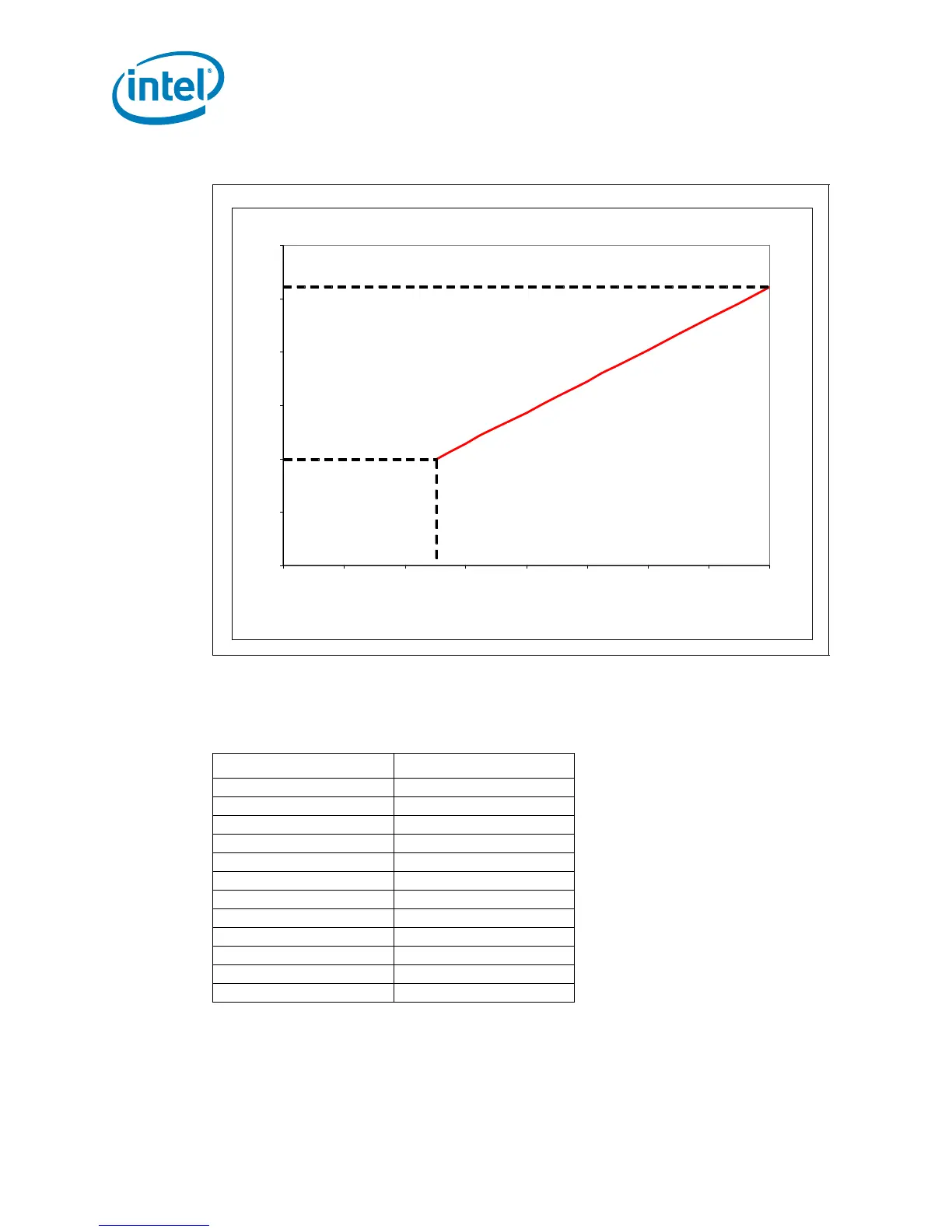

Figure 6-1.Quad-Core Intel® Xeon® Processor E5300 Series Thermal Profile
40
45
50
55
60
65
70
0 1020304050607080
Power [W]
Tcase [C]
Thermal Profile
Y = 0.293*x + 42.6
40
45
50
55
60
65
70
0 1020304050607080
Power [W]
Tcase [C]
Thermal Profile
Y = 0.293*x + 42.6
Table 6-2. Quad-Core Intel® Xeon® Processor E5300 Series Thermal Profile Table
Power (W) T
CASE_MAX
(° C)
P
_PROFILE_MIN
=25.3 50.0
30 51.4
35 52.9
40 54.3
45 55.8
50 57.3
55 58.7
60 60.2
65 61.6
70 63.1
75 64.6
80 66.0
