Planning Installation
Antenna Dimensions
Conrm the height and diameter of the bottom surface of the antenna unit before installing it. The mounting
surface and overall space occupied by the antenna must be sufcient for the height and diameter of the
fully constructed radome on top of its base frame. The height and the diameter of the bottom surface of the
antenna are as shown in the following drawing. It is strongly suggested that the installation is conducted using
a crane.

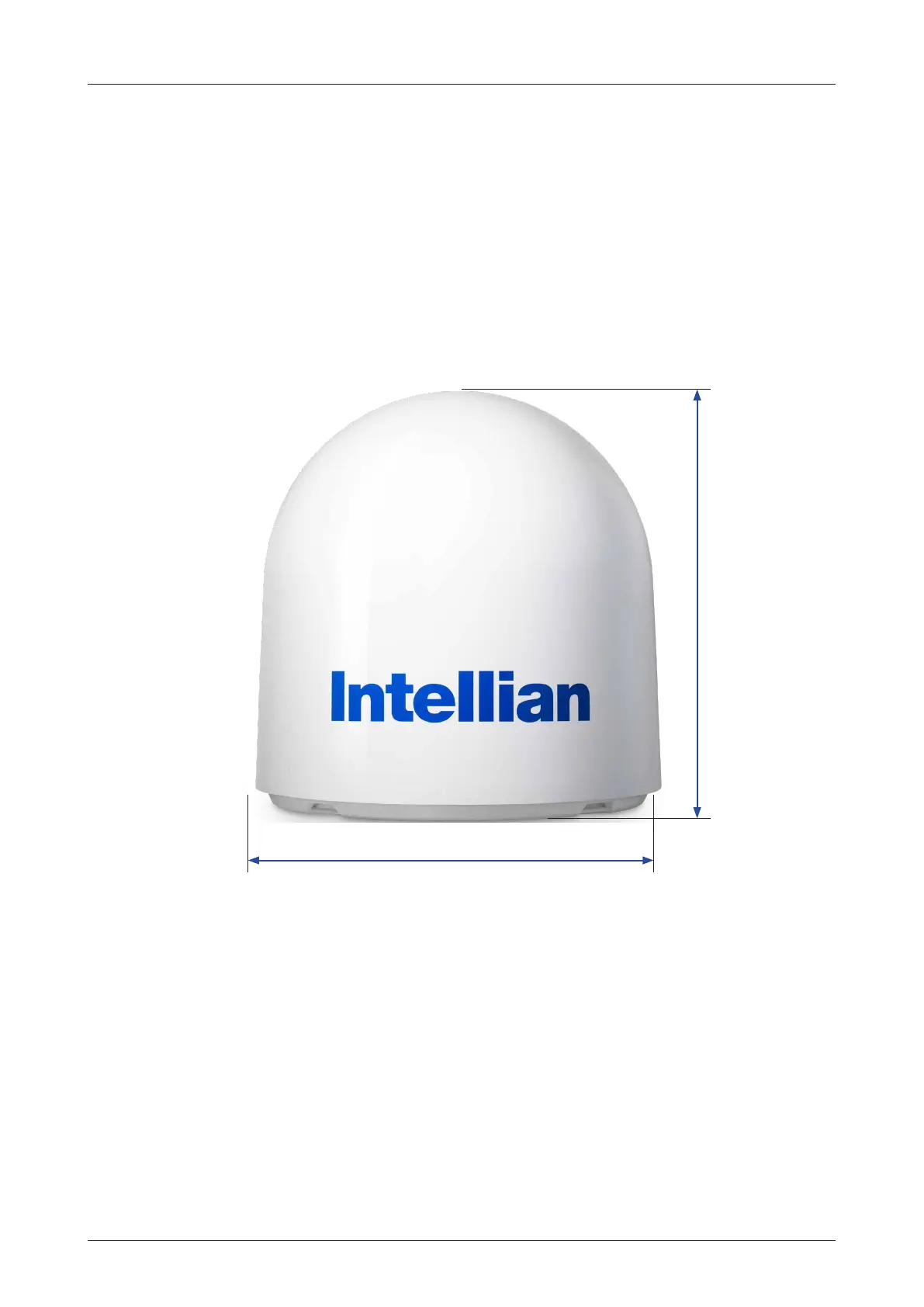

Figure: Antenna Dimensions
Antenna Specication
1970 mm (77.55")
Ø1900 mm (74.80")
