Installing Antenna
Installing Antenna
Antenna Installation
Unpacking Wooden Crate
The pallet should be lifted by means of a forklift. To unpack the wooden crate, follow the procedure below.

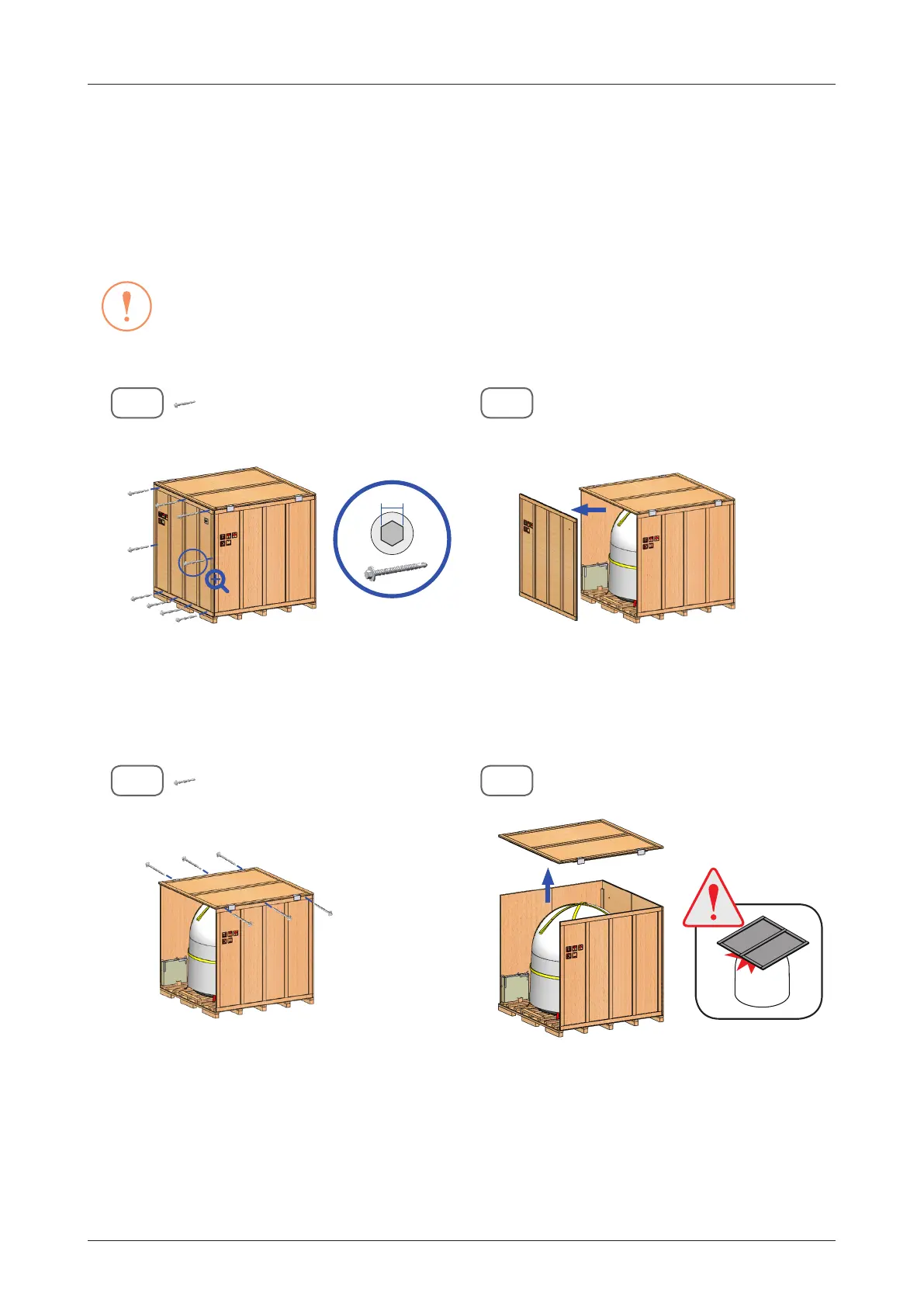

1. Remove the xing screws (9 EA) from a front panel. Detach the front panel.
CAUTION
CAUTION
Be careful with the direction of the panel that you must open rst.
: 9 EA
: 6 EA
1-1 1-2
2. Remove the xing screws (6 EA) from a top panel. Detach the top panel by using a forklift carefully.
2-1 2-2
Fixing screw
8mm
