Installing ACU

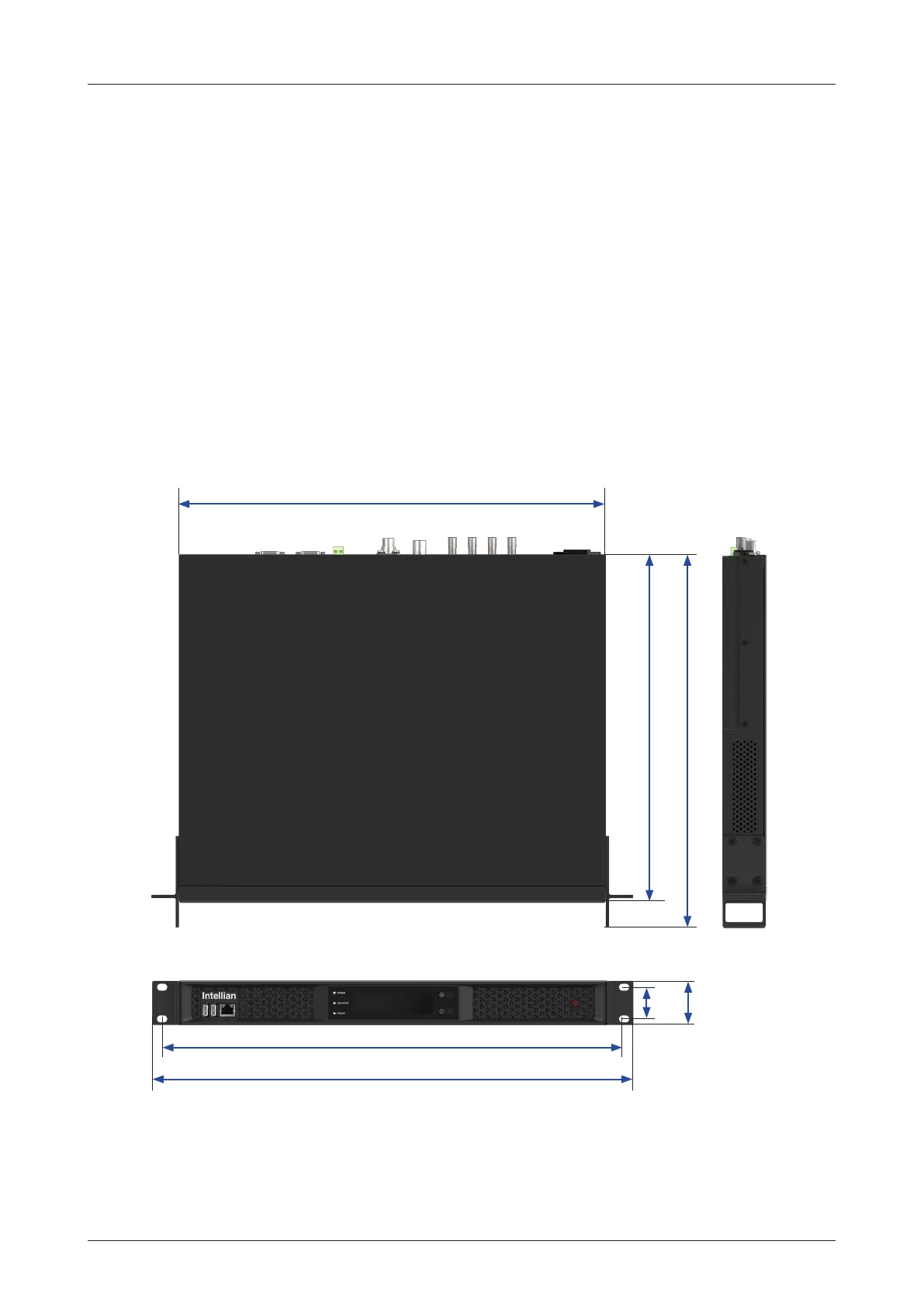

Figure: ACU Dimensions
350 mm (13.77")
376 mm (14.80")
32 mm (1.25")
44.3 mm (1.74")
466 mm (18.34")
431 mm (16.96")
485 mm (19.09")
ACU Dimensions
Conrm the dimension of the ACU before installing it.
Installing ACU
Selection of ACU Installation Site
The ACU should be installed below deck, in a location that is:
• Dry, cool and ventilated.
• The front panel should be easily accessible to users.
