26
Installing Antenna

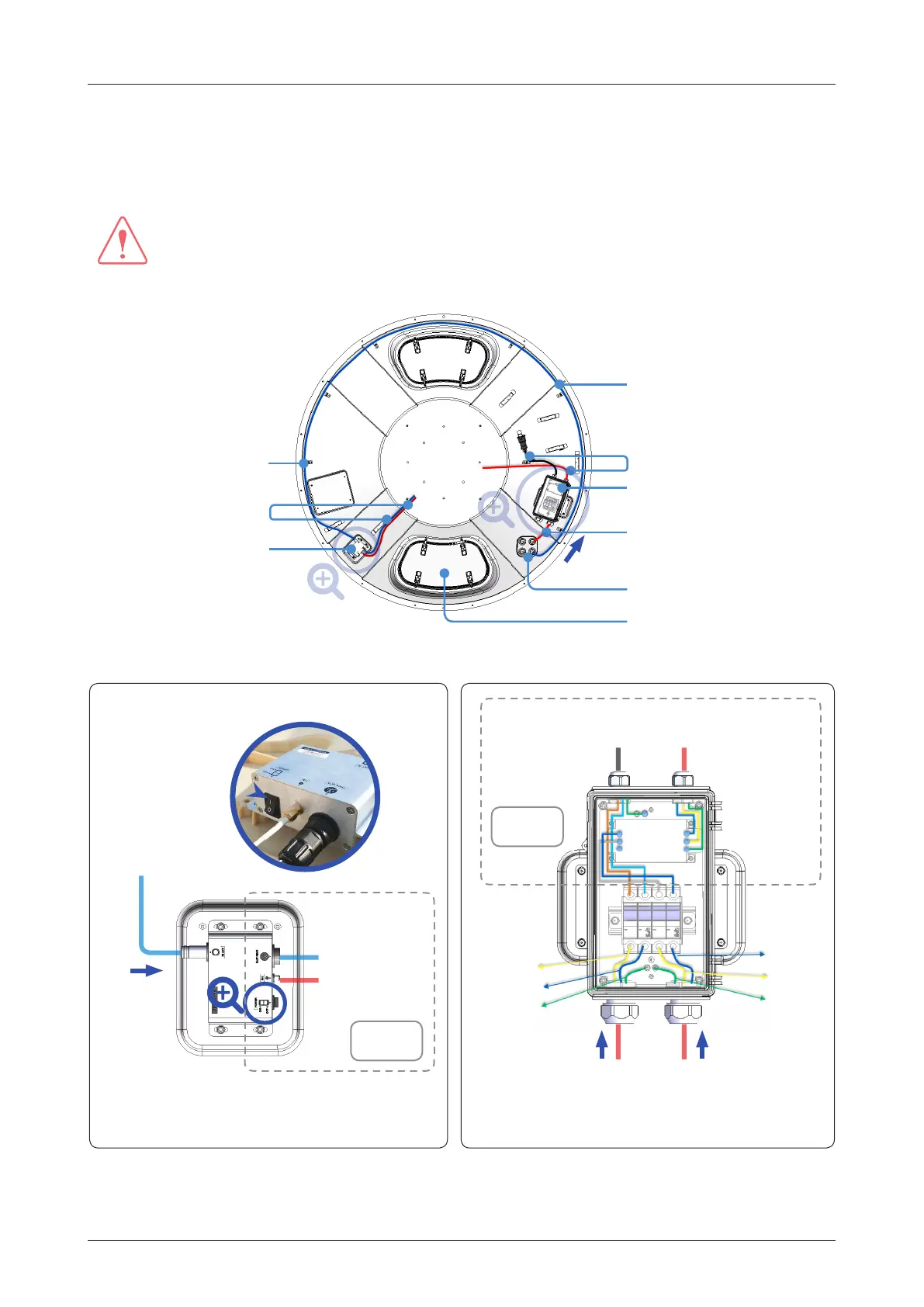

5. Connect the "RF Cable" to the cable connector on the Power Switch Unit inside the radome. Connect the "AC
Power Cable" to the cable connector on the Power Circuit Brake Box inside the radome.
Ensure the cable is
rmly fastened to the connector. After connecting the cables, adjust the cable length then x the cables on
the cable holders by using cable ties.
When all cables have been installed turn on the power switch.
WARNING
WARNING
Ensure that the power switch is off during installation. When all cables have been installed turn on the
power switch.
6. Fully tighten the existing cable glands on the base of radome which are assembled temporarily in the previous
step. Then put the radome hatch in the right place and close the radome hatch by pushing at the center of
the hatch button (4 EA).
FG
FG
L
L
N
FG
FGFG
LL
NN LL
NN
N
Cable Connections on Power Circuit Brake Box
AC Power Cable
(To Antenna)
AC Power Cable
for Air-con (optional)
(From Ship's Power)
AC Power Cable
for Antenna
(From Ship's Power)
AC Power Cable
(To Air-con)
Installed
Cables
Inside Radome Bottom View
Cable Entry Apertures
Power Circuit Brake Box
Installed Cables
AC Power Cable
for Antenna
(From Ship's Power)
TX, RX, 48V DC Power
Cable (4200 mm)
(From ACU)
Power Switch Unit
Installed Cables
Radome Hatch in Use
Cable Holders
Cable Connections on Power Switch Unit
RF Cable
(To Antenna)
RF Cable: Rx,
Tx, DC Power
(From ACU)
DC Power Cable
(To Antenna)
Installed
Cables
To Next Page
