Installing ACU
Connecting to Additional ACU (Optional: For Dual Antenna System)
To use the Dual Antenna System, the antenna system needs to be installed with two ACUs and two antennas
to support the Dual Antenna System operation. The Primary ACU is connected to the additional Secondary
ACU as follows.
Connect the "RG-6 RF cable" from the "SECONDARY-Rx" connector on the rear of the "Primary ACU" to the
"PRIMARY-Rx" connector on the rear of the "Secondary ACU".
Connect the "RG-6 RF cable" from the "SECONDARY-Tx" connector on the rear of the "Primary ACU" to the
"PRIMARY-Tx" connector on the rear of the "Secondary ACU".
Connect the "Ethernet cable" to each "LAN 3" connector on the rear of the "Primary ACU" and "Secondary
ACU".

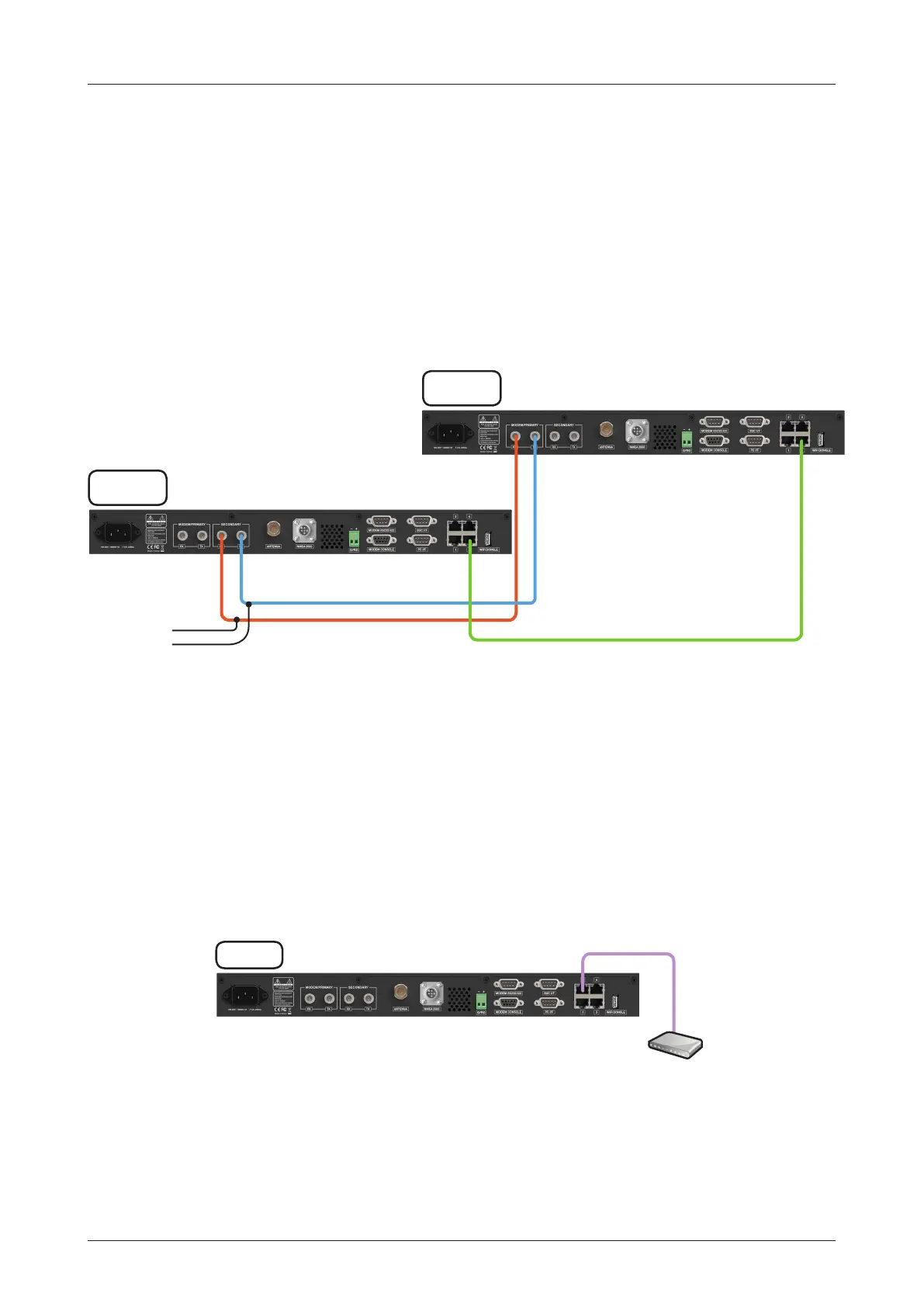

Figure: Additional ACU Cable Connection for Dual Antenna System
Connecting to the Switch Router
Connect the "Ethernet cable" from the "LAN 2" port on the rear of the ACU to the "LAN" port on the Switch
Router.
Figure: ACU to Switch Router Cable Connection
Primary
ACU
Secondary
ACU
LAN 3
LAN 3Primary
Tx
Primary
Rx
Secondary Rx
Secondary Tx
ACU
Switch Router
(Not supplied)
LAN 2
