Planning Installation
Heading Alignment
The radome assembly should be positioned with the BOW marker aligned as close as possible to the center
line of the ship.

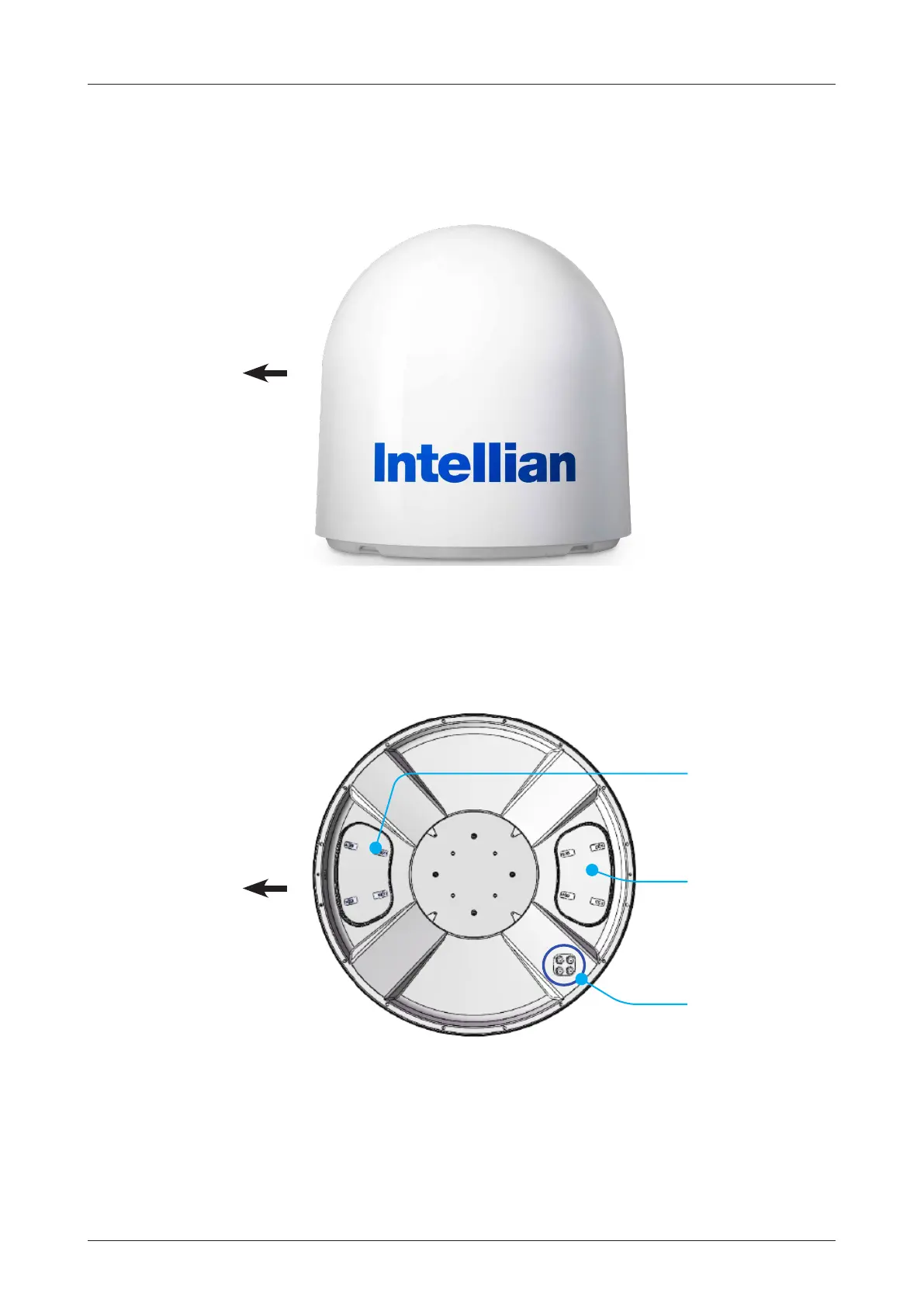

Figure: Antenna Heading Alignment
BOW
Direction
Front View
Bottom View
Cable Entry
Radome Hatch
In Use
Radome Hatch
(Optional: for Duct
Hatch Assembly)
BOW
Direction
