Planning Installation
Antenna Mounting Hole Pattern
The mounting holes must be in the exact same place as shown in the diagram below.

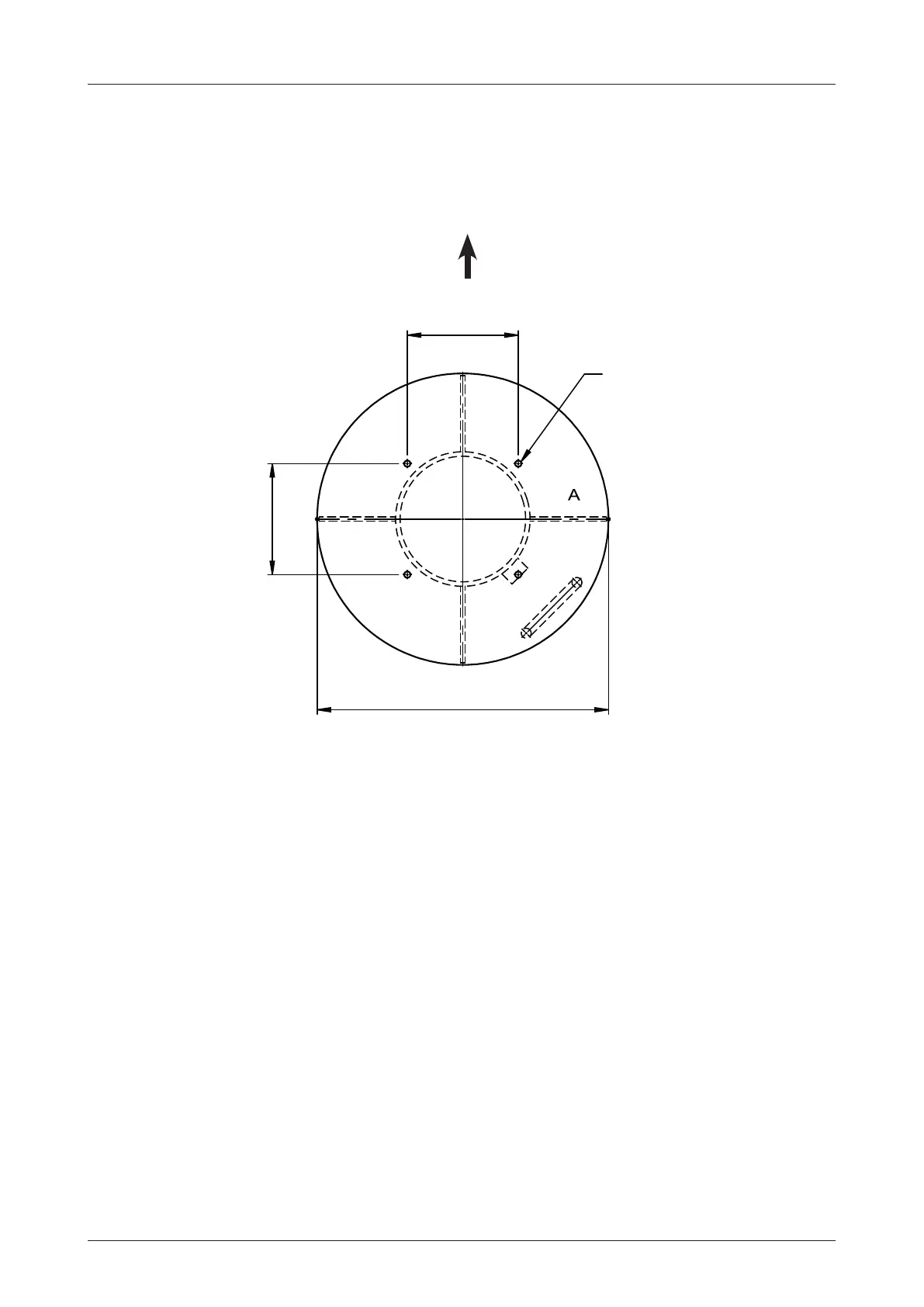

Figure: Antenna Mounting Hole Pattern
247.5 mm (9.74")
4-Ø14 mm (0.55"
) Holes
Ø650 mm (25.59")
247.5 mm (9.74")
BOW
Direction
