Intellian v150NX - Removing Antenna from Wooden Crate

23
Installing Antenna

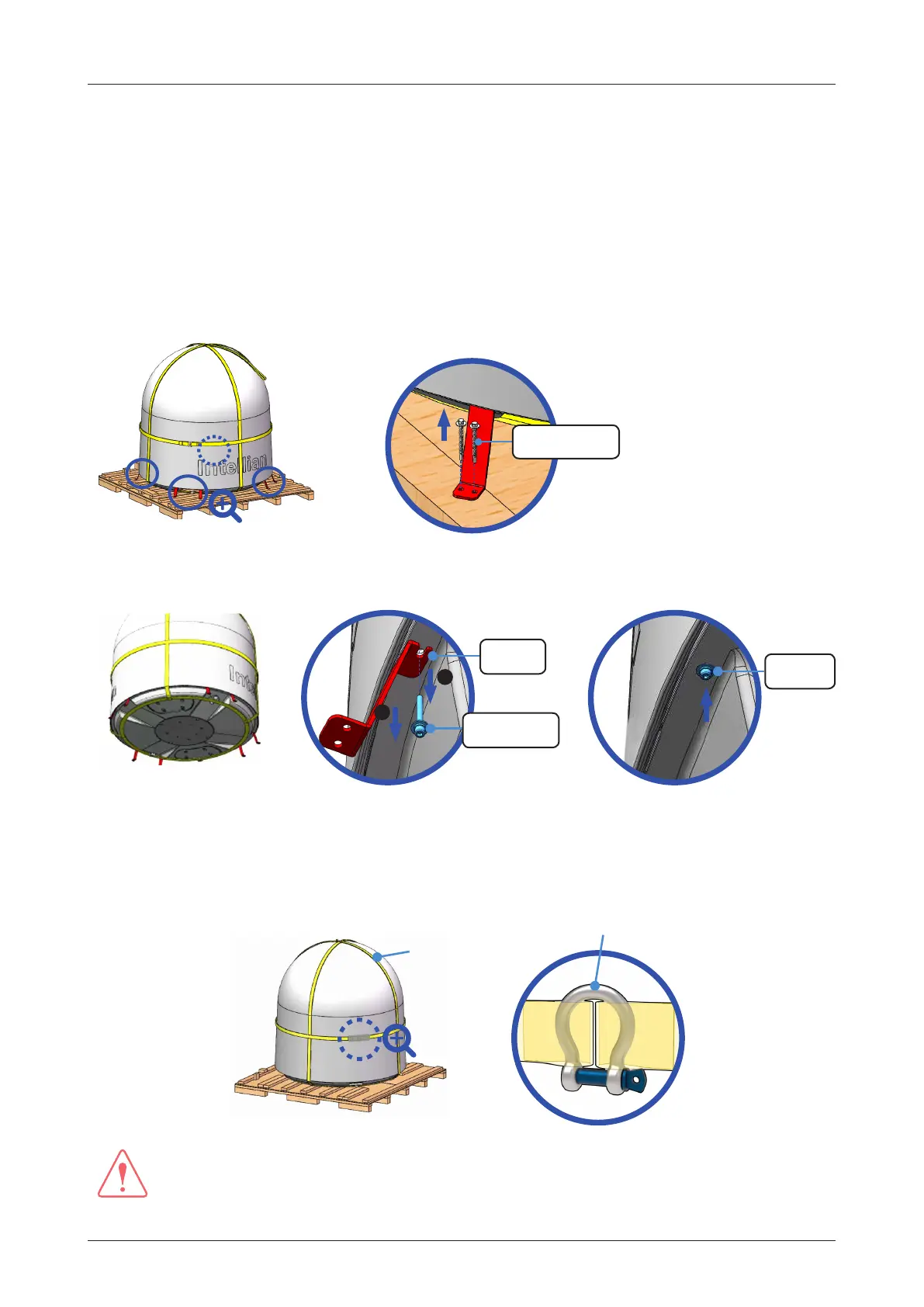

Removing Antenna from Wooden Crate
Eight radome brackets secure the antenna to the pallet. To remove the radome bracket, follow the procedures
below.
1. Remove the xing screws (2 EA) on the radome bracket that
secures the antenna to the pallet by using a
wrench.
2. Remove the radome bracket bolt (1 EA) using a wrench, then detach the radome bracket from the radome.
After removing radome bracket, apply Loctite #263 to the bolt's threads to ensure the bolts are fastened
rmly. Fully tighten the detached radome bolt (1 EA) using a wrench. Apply the same procedure to all eight
parts.
WARNING
WARNING
When lifting the antenna using the lifting straps, make sure to remove the securing radome brackets to
separate antenna from the pallet.
3. Check the condition of lifting strap to make sure the shackles (2 EA) are tightened. Re-wrap the shackles
with the existing protection to avoid radome damage.
Lifting Strap
Shackles
Radome Bottom View
2-2
Fully Tighten Radome Bolt
Radome
Bolt
2-1
Radome
Bracket
Radome
Bracket Bolt
A
B
1
Fixing Screws
(2 EA)
