Installing Antenna
: 4 EA

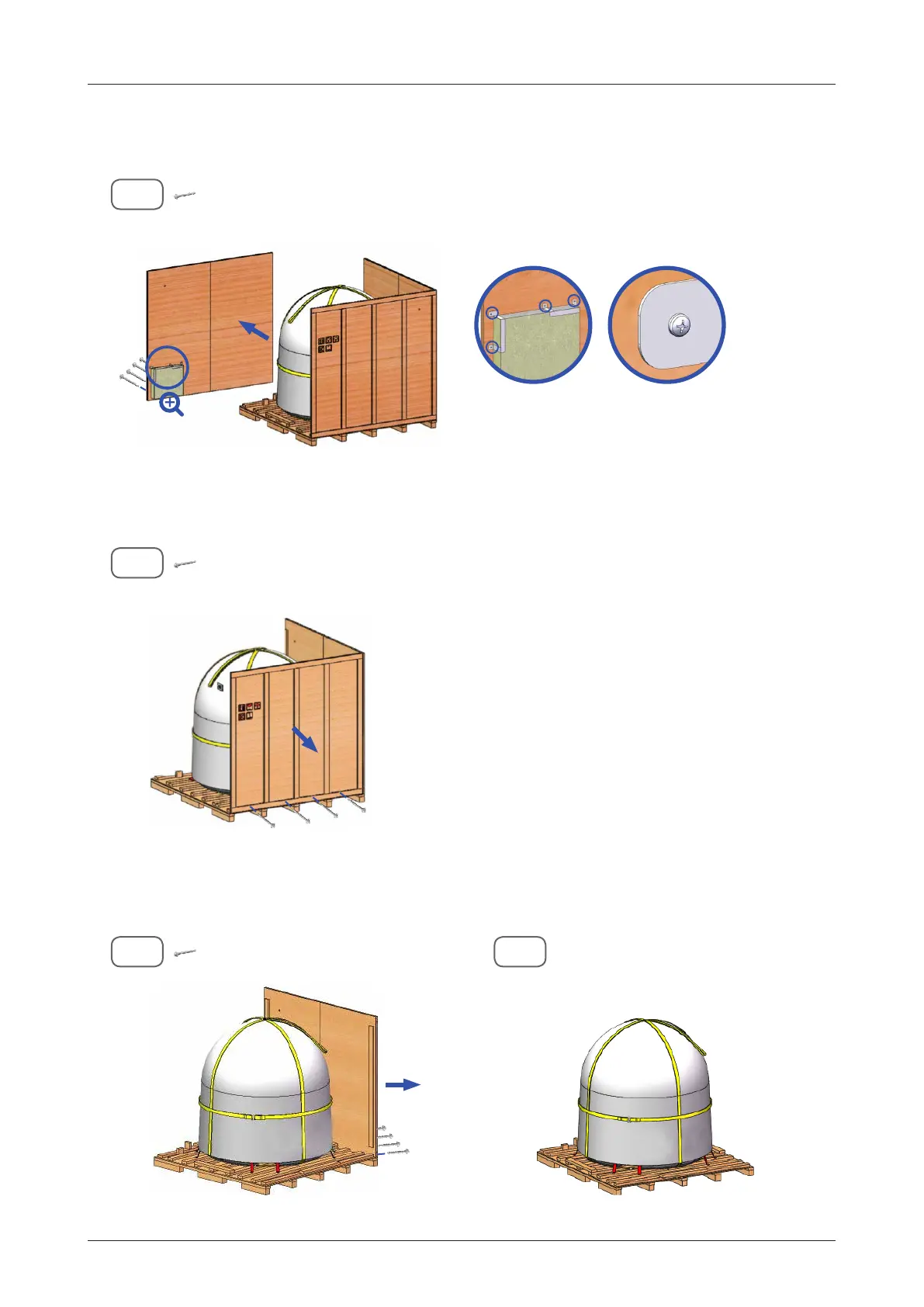

3. Remove the xing screws (4 EA) from a left panel, then detach the left panel. Take out the ACU box that
is located inside the panel.
3-1
4. Remove the xing screws (4 EA) from a right panel, then detach the right panel.
4-1
5. Remove the xing screws (4 EA) from a remaining back panel, then detach the back panel.
5-1 5-2
: 4 EA
: 4 EA
Fixing screwFixing screw
Position
