INSTALLING THE ANTENNA
RF Cable Connections
Ensure that the power switch is off during the installation period and all the cables
are connected properly between the antenna control unit and the power switch
box. Using tie wraps supplied with radome, secure the RF cables connected to the
power switch box. When all the hardware and cable have been installed, turn on
the power switch.

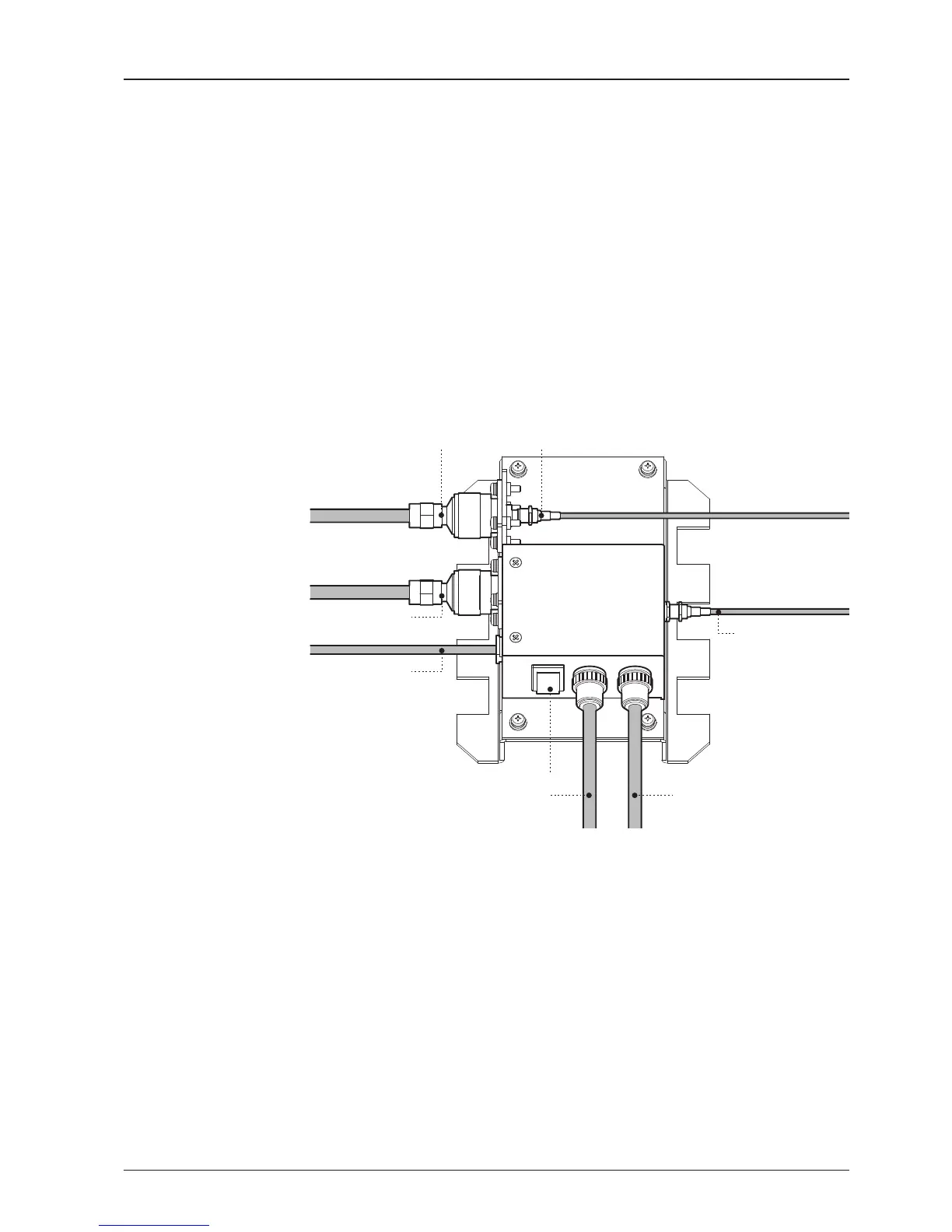

Modem Tx Cable
(From Modem)
ACU Rx Cable
(From ACU)
On/ Off Switch
BUC Power Cable
(From ACU)
Antenna Power Cable
(From Antenna)
Rotary #2 Rx Cable
(From Antenna)
BUC Power Cable
(From Antenna)
Rotary #1 Tx Cable
(From Antenna)
Power Switch Box
