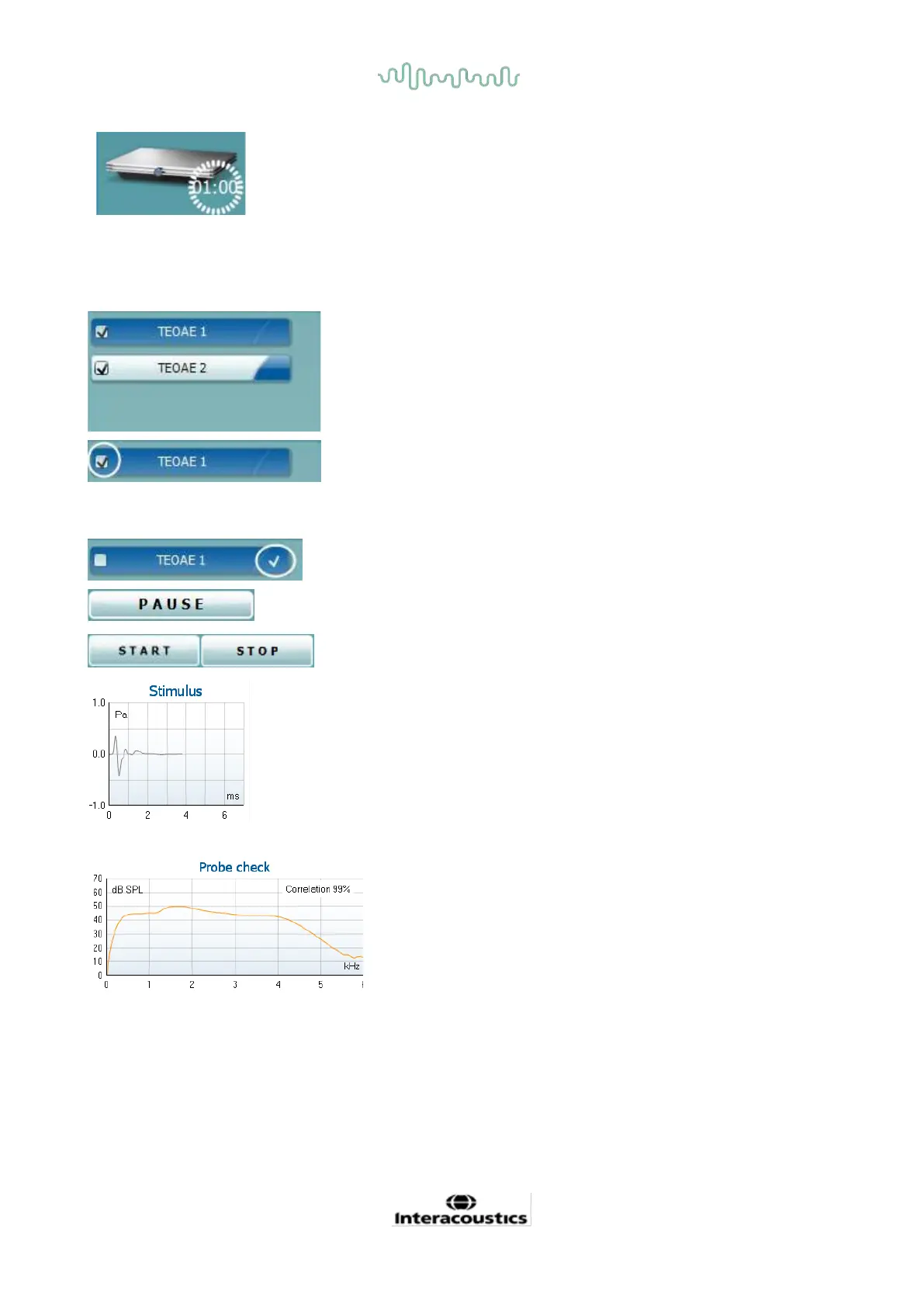

Before testing, the Timer symbol indicates after how much time the
TEOAE test will automatically stop. During testing the timer counts
down to zero. You can disable the countdown by clicking on the
timer during testing. As a result, the timer will begin counting up
and indicate how much test time has passed. Then the test will
continue until you manually press stop.
When the measurement is rejecting, the timer will stop counting.
Artifact rejection is dependent upon the Acceptable Noise Level
setting and Level tolerance level set in the protocol.
The protocol listing shows all tests that are part of the selected
protocol. The test that is displayed in the test screen area is
highlighted blue or red, depending on the chosen ear.
A checkmark in the box indicates that the test will run when
START is pressed. During testing the tests which have been
completed will automatically become unchecked. Uncheck the
boxes of tests you do not wish to run under the selected protocol
before pressing START.
A white checkmark indicates that (at least some) data for this test
is stored in the memory.
Pause becomes active after testing has started. It allows for
pausing during a test.
START (and STOP) button are used for starting and stopping the
session.
The stimulus graph displays the click stimulus being presented to
the ear as a function of magnitude (Pa) over time (ms). The scroll
wheel of your mouse allows for zooming in and out with respect to
the magnitude (y) axis
The probe check graph provides a visual display of the probe fit in
the patient’s ear before, during and after testing.
After testing, a correlation value will be displayed giving an
indication as to how well the probe stayed in the ear during testing.
